Torque (S0002)
●
S0002 on the display indicates the torque applied at the actuator output.
●
The bar graph display appears after approx. 3 seconds.

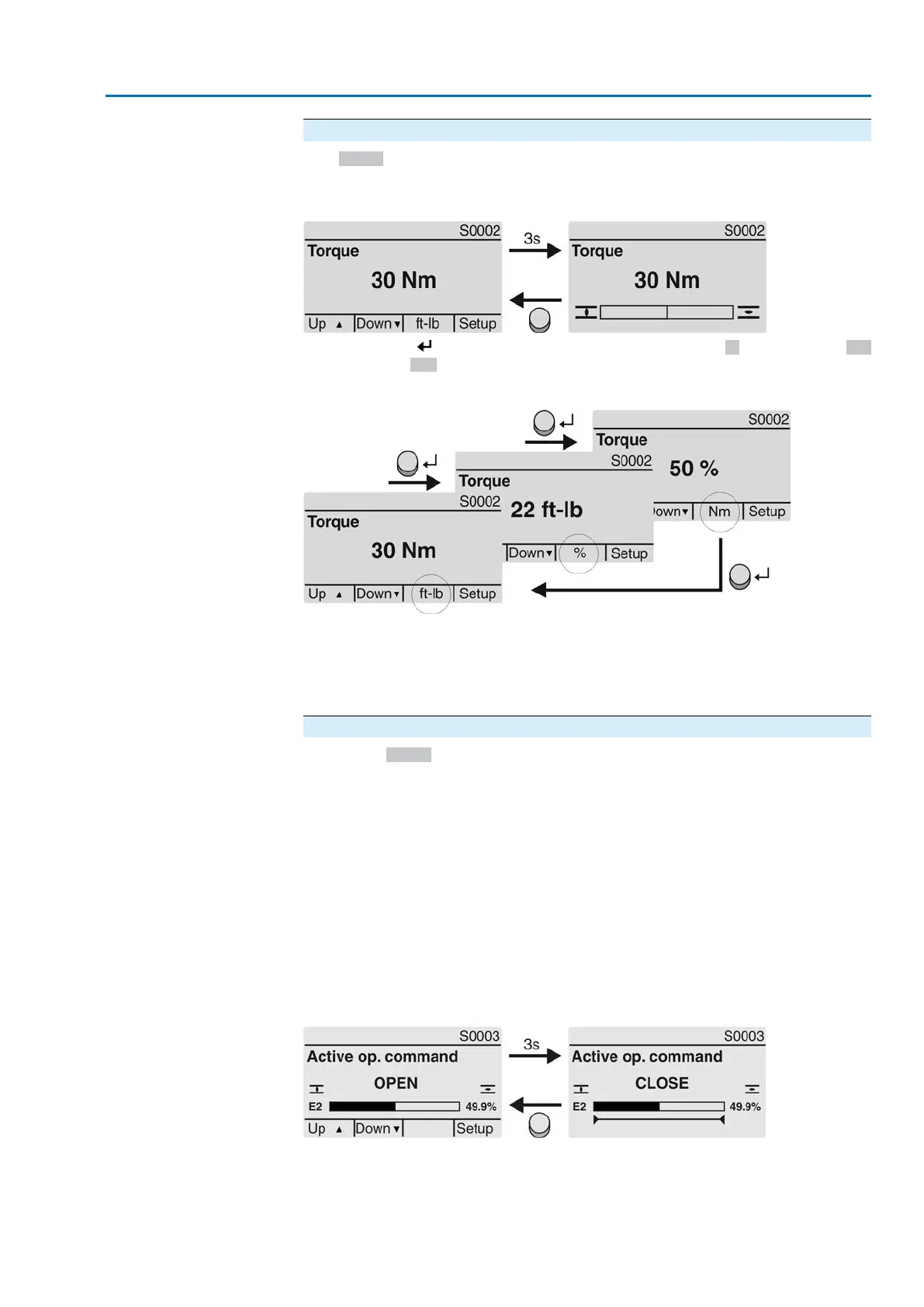

Figure 16: Torque
Select unit
The push button allows to select the unit displayed (percent %, Newton metre Nm
or "foot-pound" ft-lb
Figure 17: Units of torque
Display in percent
100 % indication equals the max. torque indicated on the name plate of the actuator.
Example: Torque range on name plate = 20 – 60 Nm.
●
100 % corresponds to 60 Nm of nominal torque.
●
50 % corresponds to 30 Nm of nominal torque.
Operation commands (S0003)
The display S0003 indicates:
●
active operation commands, like e.g.: Operation in direction CLOSE or in direc-
tion OPEN
●
the actual value E2 as bar graph indication and as value between 0 and 100
%.
●
for setpoint control (positioner): setpoint E1
●
for stepping mode or for intermediate positions with operation profile: pivot
points and operation behaviour of pivot points
The navigation support (bottom row) is faded out after approx. 3 seconds and the
axis/axes for pivot point display are shown.
OPEN - CLOSE control
Active operation commands (OPEN, CLOSE, ...) are shown above the bar graph
display. The figure below shows the operation command in direction CLOSE.
Figure 18: Display for OPEN - CLOSE control
E2 Actual position value
Setpoint control
If the positioner is enabled and activated, the bar graph indication for E1 (position
setpoint) is displayed.
19
Actuator controls
AC 01.2/ACExC 01.2 Profinet Indications
