Autel MaxiTPMS TS900 - Maxivci V150; Function Description

7
Item
Description
Dimensions (W x H x D)
259.87 mm (10.23”) x 168.98 mm (6.65”) x
33.60 mm (1.32”)
Net Weight
998 g (2.2 lbs)
Protocols
ISO9141-2, ISO14230-2, ISO15765, K/L-Line,
Flashing Code, SAE-J1850 VPW,
SAE-J1850PWM, ISO11898 (High-speed,
Middle-speed, Low-speed and Single-wire CAN,
fault-tolerant CAN), SAE J2610, GM UART,
UART Echo Byte Protocol, Honda Diag-H
Protocol, TP2.0, TP1.6, DoIP, CAN FD
2.2 MaxiVCI V150
MaxiVCI V150 is a small vehicle communication interface (VCI) that wirelessly
connects to the tablet vehicle’s data link connector (DLC) for vehicle data transmission.

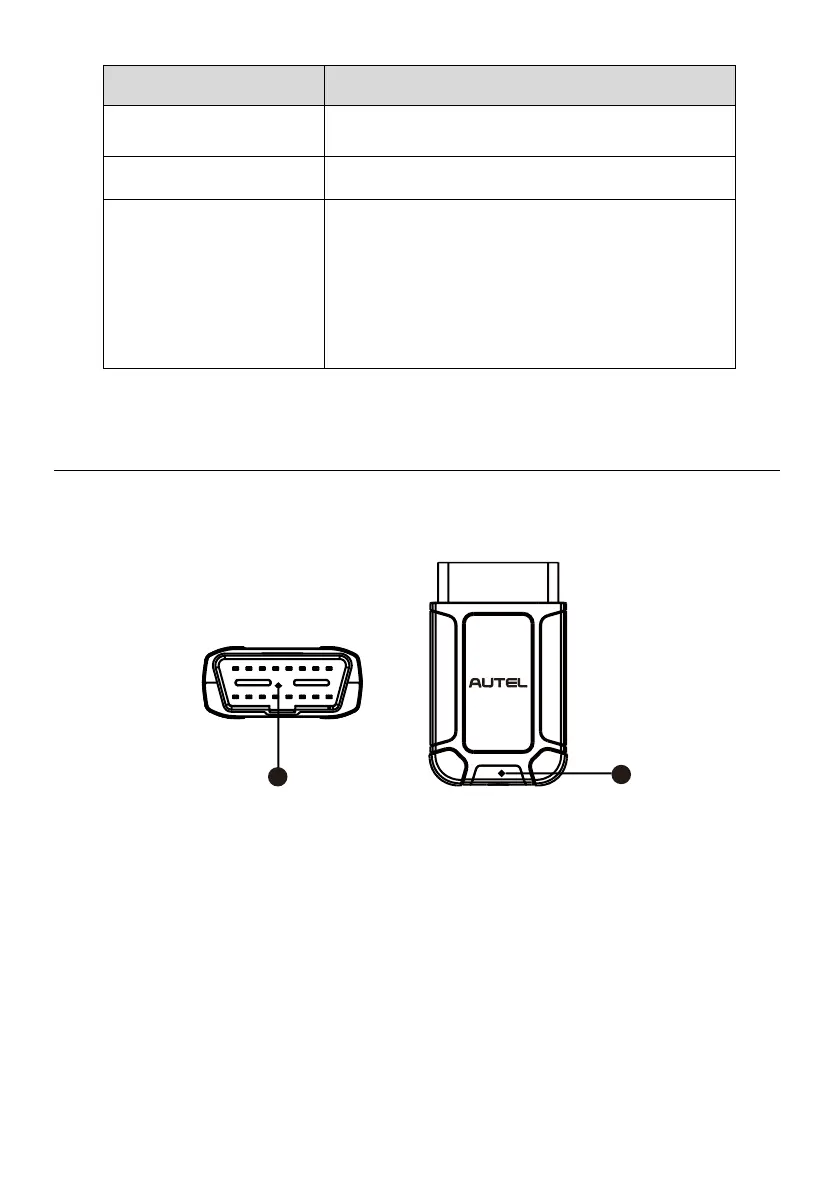

Figure 2-4 MaxiVCI V150 Views
2.2.1 Function Description
1. Vehicle Data Connector (16-Pin) — connects the MaxiVCI V150 to the vehicle’s
16-pin DLC directly.
2. Power/Connection LED — refers to Table 2-2 Power/Connection LED on page 8
for details.
1
2
