5
5. Collapsible Stand — extends from the back to allow hands-free viewing of the
tablet.
6. Rear Camera
7. Camera Flash

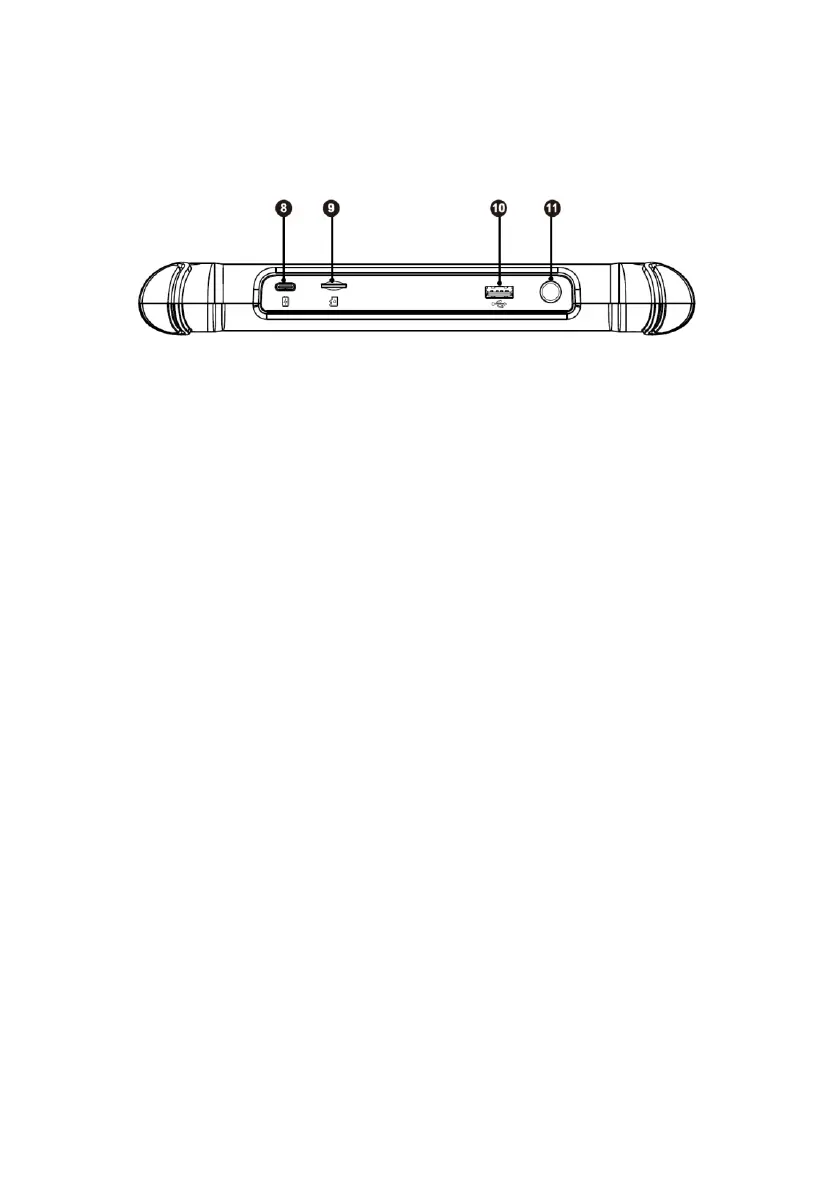

Figure 2-3 Tablet Top View
8. USB Type-C Charging Port
9. Mini SD Card Slot
10. USB Port
11. Power/Lock Button — turns the device on/off with long press, or locks the screen
with short press.
2.1.2 Power Sources
The tablet can receive power from any of the following sources:
⚫ Internal Battery Pack
⚫ External Power Supply
2.1.2.1 Internal Battery Pack
The tablet can be powered with the internal rechargeable battery, which if fully charged
can provide sufficient power for about 7 hours of continuous operation.
2.1.2.2 External Power Supply
The tablet can be powered from a wall socket using the included USB Type-C cable
and the external power adapter. The external power supply also charges the internal
battery pack.
