32

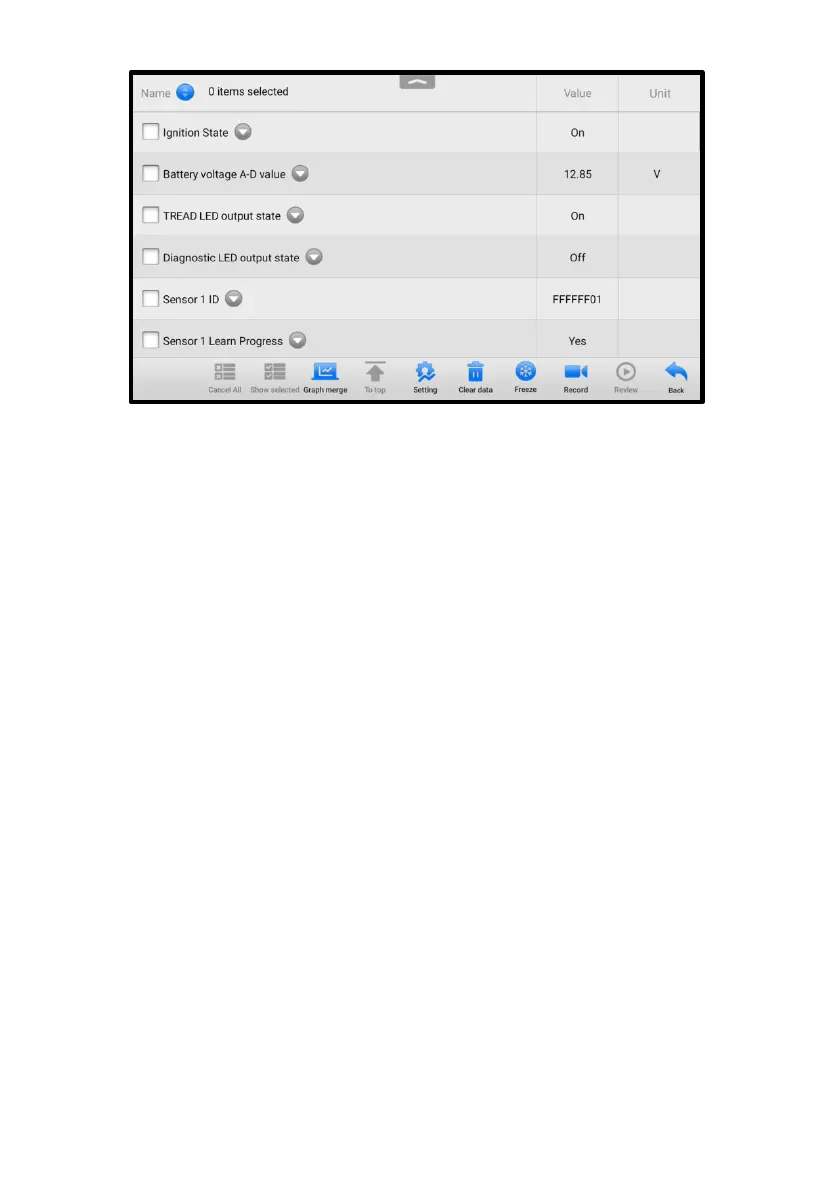

Figure 4-20 Live Data Screen
All the parameters displayed on the Live Data screen are default values.
Check box before the parameters you want to see, the Show Selected icon on the
bottom of the screen will be available and turn blue. Tap Show Selected and the
selected parameters will be displayed in a separate screen.
For more details, please refer to Live Data on page 69.
4.6.5 Service Function
Tap this button and all the service functions supported by this vehicle will be shown on
the screen. You can select one of the functions among them each time and follow the
on-screen instructions to complete.
4.6.6 ECU Information
By tapping this button, the information of the test vehicle will be listed out on the screen.
