5.5.1 Auto Scan
The Auto Scan function performs a comprehensive scanning over all the ECUs in the
vehicle to locate systems faults and retrieve DTCs. An example of Auto Scan screen is
pictured as below.

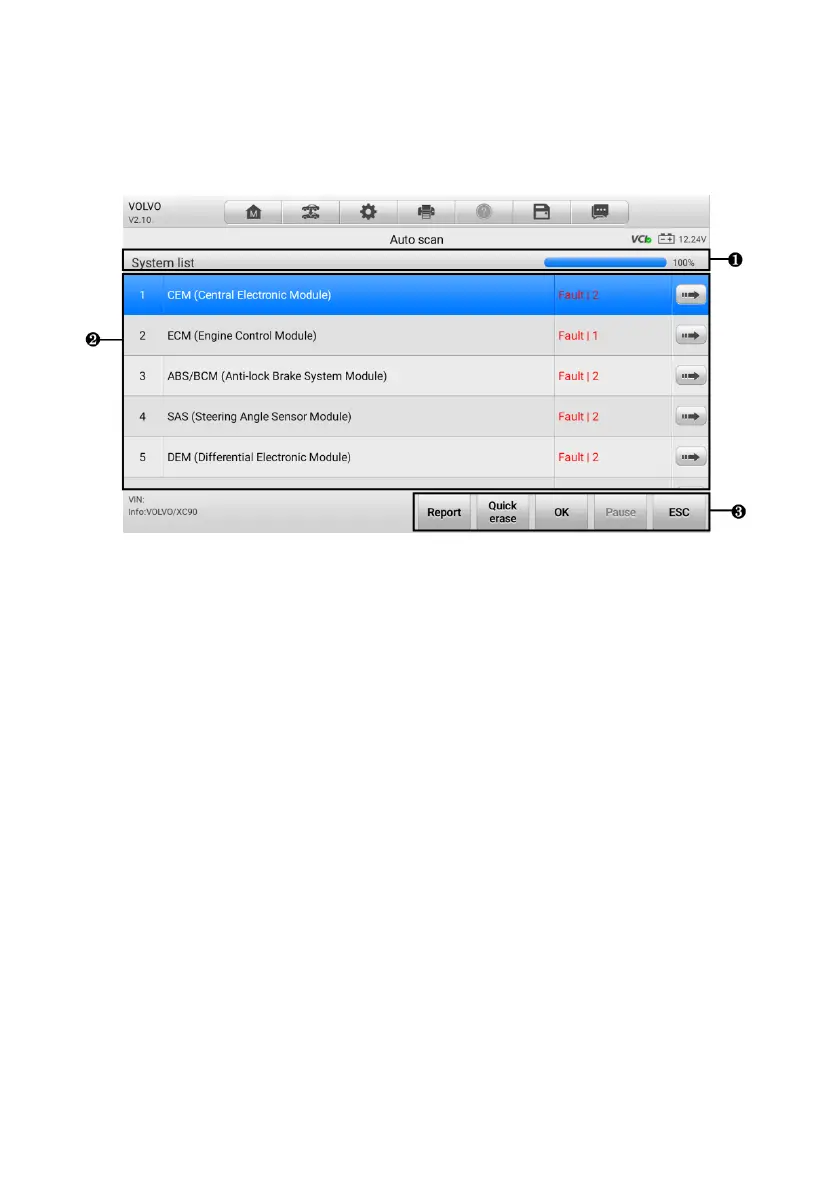

Figure 5-12 Auto Scan Screen
1. Navigation Bar
2. Main Section
3. Function Buttons
5.5.1.1 Navigation Bar
List Tab — displays the scanned data in list format.
Progress Bar — indicates the test progress.
5.5.1.2 Main Section
Column 1 — displays the sequence numbers.
Column 2 — displays the scanned systems.
Column 3 — displays the diagnostic indicators describing test results.
These indicators are defined as follows:
-?-: Indicates that the vehicle control system has been detected, but the tablet
cannot access it.
Fault(s) | #: Fault(s) indicate(s) there is/are detected fault code(s) present; “#”
indicates the number of the detected faults.
Pass | No Fault: Indicates the system has passed the scanning process and no
