48

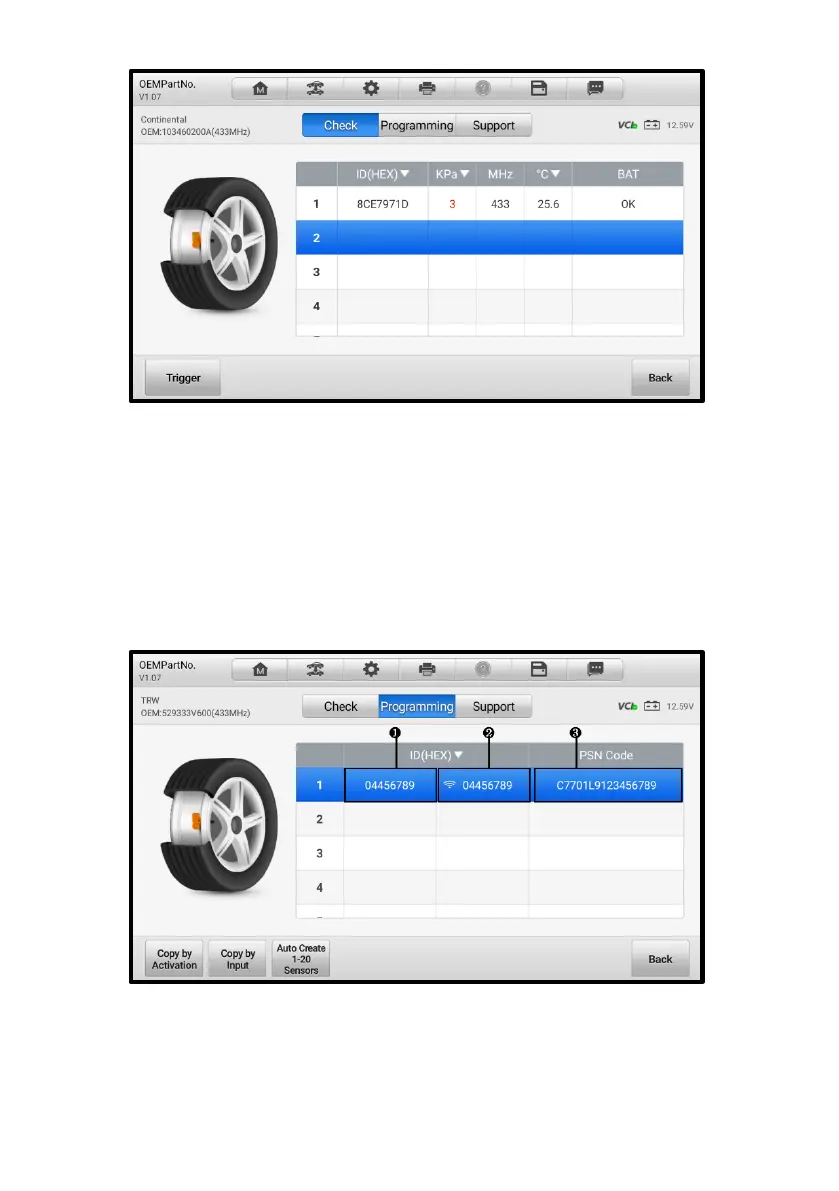

Figure 4-42 Check Screen via OEM Part NO.
4.9.2.2 Programming
The programming function is used to program the sensor data to the MX-Sensor and
replace the faulty sensor (poor battery life or malfunction).
There are three options available when programming MX-Sensor using the OEM Part
NO. function: Copy by Activation, Copy by Input, and Auto Create 1-20 Sensors. Refer
to Sensor Programming on page 33 for details.
Figure 4-43 Programming Screen via OEM Part NO.
1. ID Programmed to the New MX-Sensor
2. ID Retrieved from Sensor Activation
