47
When it clicks an Archive menu, user can see a calendar which has recording data. Select a specific date
and then user can see all data. When it presses a Display button, the still image or the first frame of the
selected video is opened and user can save the data.
4-2-7. Log Search
You can access the LOG list search screen by selecting LOG on the SEARCH window.

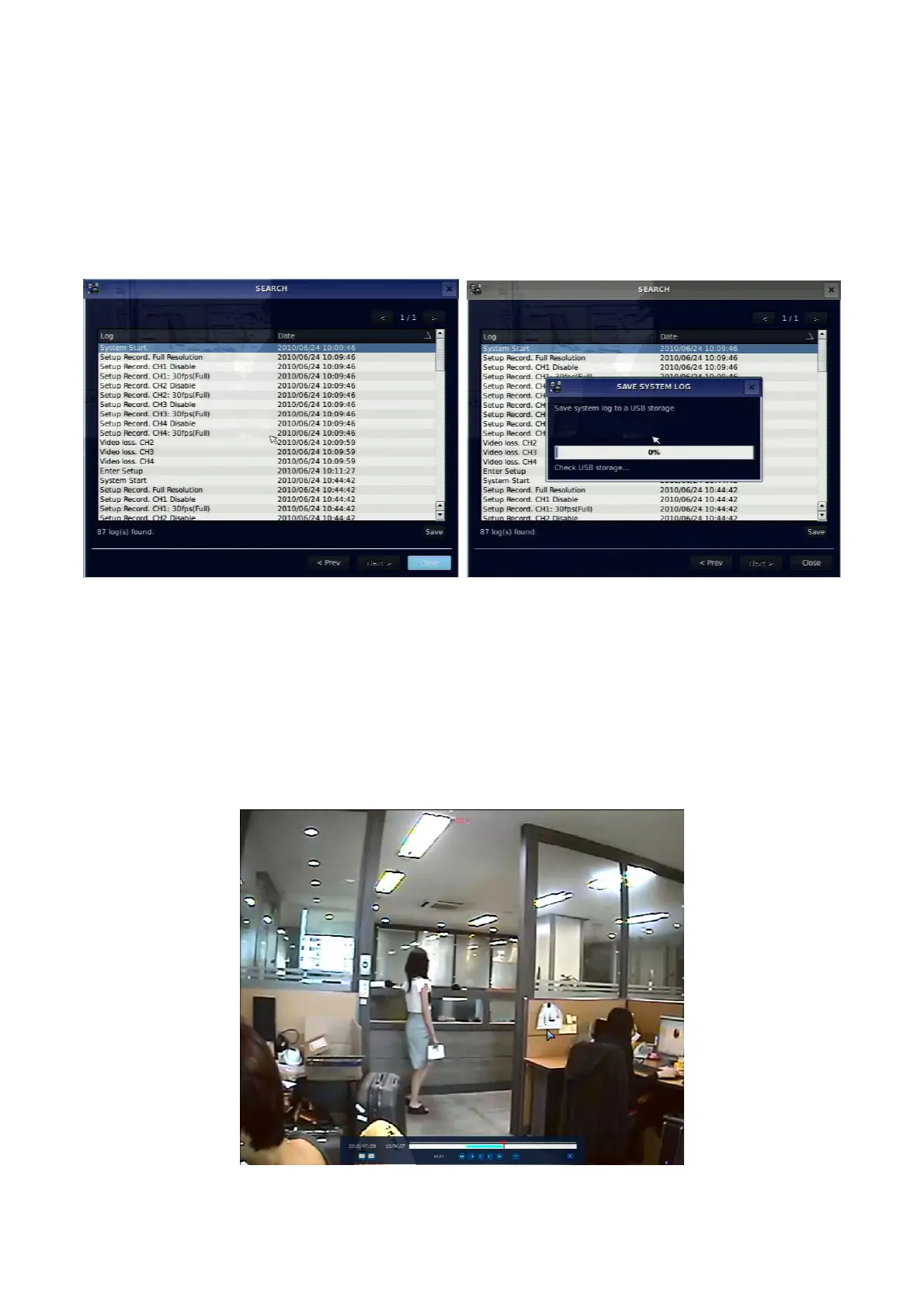

Figure 4.2.5. Log Search Screen
When it clicks a Log menu, user can see a calendar which has recording data. Select a specific date and
press NEXT button. Then user can see all log data. Press SAVE button to save the data and then the data
is saved to text file format.
4-3. Play mode
During playback of a recorded event, the mode changes from SEARCH to PLAY. While in PLAY mode, you
may return to the SEARCH screen by pressing the ESC button of a remote control.
Figure 4.3.1. PLAY Mode Screen
