S3 Audio I/O Connections 48
Accessing Audio Control on the S3
Audio Control–the S3’s built-in I/O controls–are adjusted using Channel Control Encoders 9–16. Audio Control is hidden by de-
fault.
To access Audio Control:
Simultaneously press the right-side < Page and Page > Channel Control Navigation switches.
Controls for the built-in I/O are assigned to Channel Control Encoders 9–16.
Connecting and Adjusting Inputs
You can adjust inputs using the Channel Control Encoders. You can also link Inputs 1–2 and 3–4 and control each pair using a sin-
gle Encoder and associated switches.
To connect and route a mic or line input:
1 Connect a microphone to Inputs 1–2; connect a line-level device to Inputs 1–4.
2 In your audio/video application, assign S3 hardware inputs to the desired track(s). In Pro Tools, inputs on the S3 are called In
1–4
in the Input Path selector.
To adjust outputs:
1 If necessary, access Audio Control by simultaneously pressing the < Page and Page > Channel Control Navigation switches.
2 Do any of the following under the display showing the input you want to adjust:
• To adjust input gain, rotate the encoder.
• To engage the 20 dB pad, press the corresponding encoder
Sel button so it is lit green. Pad is also highlighted in the corre-
sponding display.
• To engage 48v (phantom power) on Mic/Line Inputs 1–2, press the corresponding encoder
In switch so it is lit red. 48v is also
highlighted in the corresponding display.

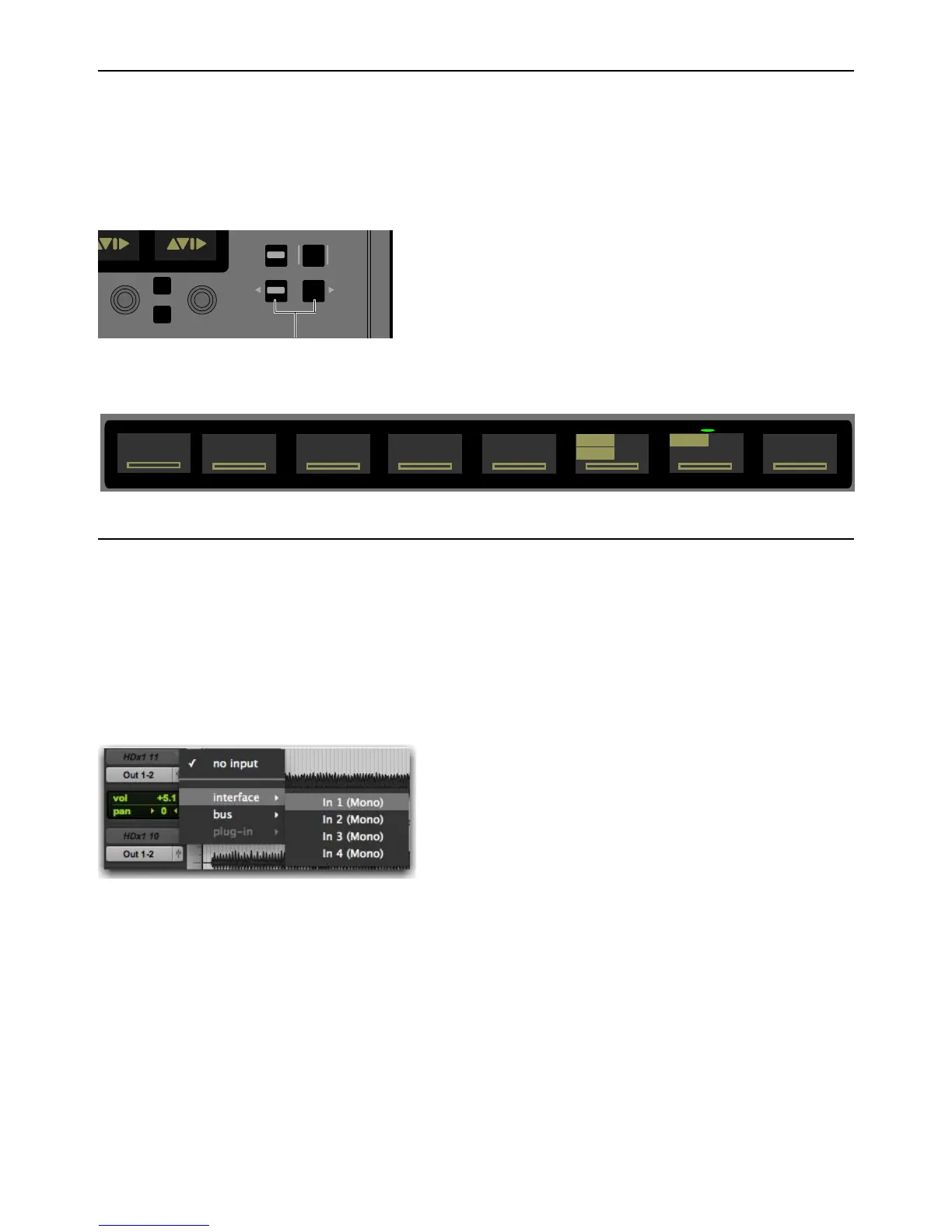

Right-side < Page > switches
I/O controls in Channel Control
Choosing an S3 Input in Pro Tools
Top
In
Sel
Config
Back
Page
Expnd
Page
48v
Pad
48v
Pad
48v
Pad
48v
Pad
In 1
10dB
In 2
10dB
In 3
10dB
In 4
10dB
Select
Cut
ALT
-65dB
MON
Prefs
AVB 1-2
MON to HP
Cut
MAIN
-65dB
Select
To Next Page
