System Overview 1-13
The use of any 3
rd
party screen protector, especially those that
adhere directly to the IFD display glass, is not endorsed by
Avidyne and may void the warranty for any display related issue.
AIRCRAFT CONFIGURATION MODULE
An Aircraft Configuration Module (ACM) stores all aircraft-specific
avionics configuration information.
The ACM plugs directly into the back of an Integrated Flight
Display and remains with the aircraft harness. This means if an
entire IFD needs to be removed for service, or a replacement is
re-installed, calibrations, aircraft configuration, and pilot
preferences are automatically loaded into the replaced unit. This
saves significant maintenance time and reduces the likelihood of
data loss.
HOW TO USE THE REST OF THIS MANUAL

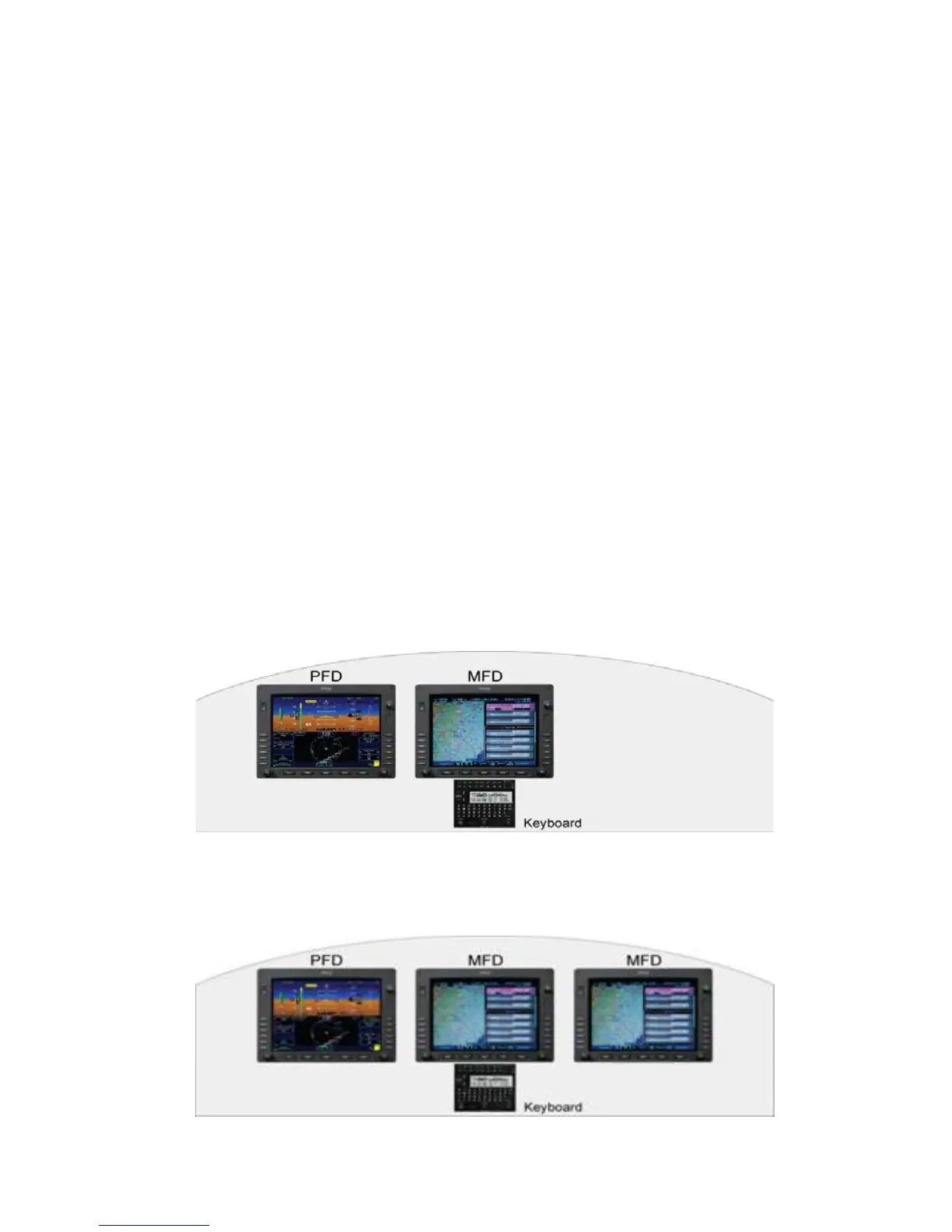

2 IFD configuration reference
3 IFD configuration reference
