WIRING
Wiring Safety
WARNING
• Disconnect power to the unit before attempting any connection or service.
• Do not bundle or route signal lines with power lines.
• Use twisted pair shielded wire for all output wiring.
• For the 4 × M20 cable inlets, only use flexible electric cables.
• Observe all applicable, local electrical codes.
Opening the Cover
The M5000 amplifier's design lets you open the cover
without completely removing it.
Follow these steps:
1. Completely remove the top two screws from the
amplier using a blade/slotted screwdriver.
2. Loosen both of the bottom screws so that the round
head of each screw clears the top face of the cover.
3. Pull the cover down to the open position.

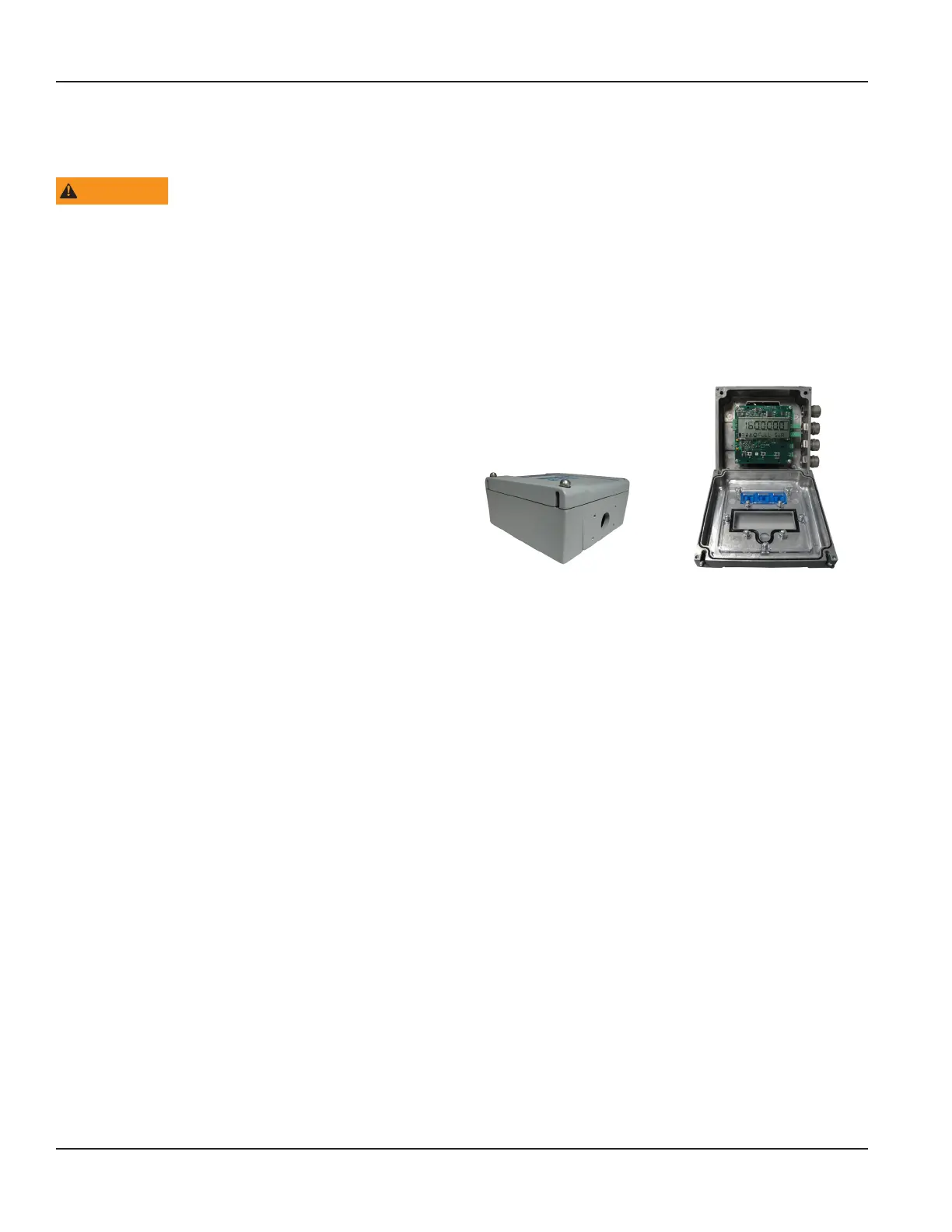

Figure 20: Remove two screws Figure 21: Open the cover
Wiring
MAG-UM-00219-EN-17Page 16 June 2021
