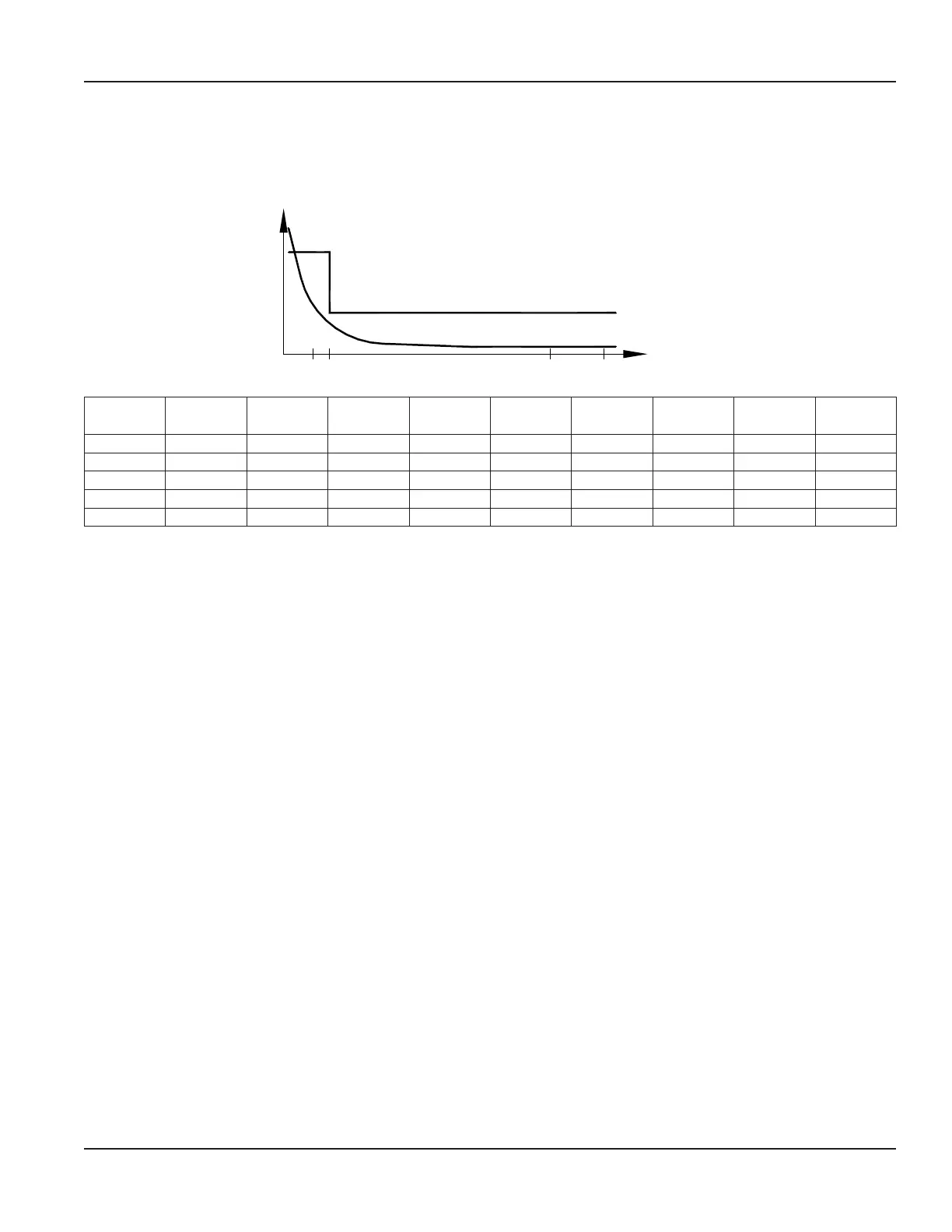

MID Approved Meter (MI-001)
The M5000 is type approved according to Directive 2004/22/EC of the European Parliament and Council of March 31, 2004
Measuring Instruments (MID) Annex MI-001. The meter is approved for the detector sizes 2…12 inches (DN 50…300).
BA5000-28MID
±E%
Q1 Q2 Q3 Q4
Cl. II = 5%
Cl. II = 2%
Q2/Q1 = 1.6 and Q4/Q3 = 1.25
Size
in. (DN)
2 (50) 2-1/2 (65) 3 (80) 4 (100) 5 (125) 6 (150) 8 (200) 10 (250) 12 (300)
R (Q3/Q1) 200 200 200 250 250 250 250 160 160
Q1 [m³/h) 0.315 0.5 0.8 1 1.6 2.52 4 10 15.63
Q2 [m³/h) 0.504 0.8 1,28 1.6 2.56 4.03 6.4 16 25
Q3 [m³/h) 63 100 160 250 400 630 1000 1600 1600
Q4 [m³/h) 78.75 125 200 312.5 500 787.5 1250 2000 2000
The conformity declaration of above certificate is according to module B (type approval) and D (quality insurance
of production).
OIML Approved Meter
MAG-UM-00219-EN-17 Page 51 June 2021
