SPECIFICATIONS
OTE: N Measurements in DN are for Nominal Diameter in mm.
M5000 Amplier
Flow Range 0.1…32.8 ft/s (0.03…10 m/s)
Accuracy ± 0.4% of measured value ± 2 mm/s
OIML/MID: 2…12 in. (DN50…300) with 0d up and 0d downstream ±1% ≥ 1.2 ft/s (0.35 m/s)
Repeatability ± 0.1%
Ambient Temperature –4…140° F (–20…60° C)
Flow Direction Uni-directional or bi-directional. Two separate programmable totalizers for uni-directional measurement.
Digital Outputs (4) Galvanically isolated open collector, 30V DC maximum, 20 mA each, maximum output frequency at 100 Hz
Status Outputs ADE, High/low flow alarm (0…100% of flow), error alarm, empty pipe alarm, flow direction
Communication RS232, Modbus RTU, IrDA, M-Bus, RS 485 (optional), External AMR or GSM/GPRS module (optional)
Empty Pipe Detection Separate electrode, field-tunable for optimum performance based on specific application
Min-Max Flow Alarm Programmable outputs 0…100% of flow
Low Flow Cut-Off Programmable 0…10% of maximum flow
Galvanic Separation Functional 500 volts
Pulse Width Programmable 5…500 ms
Coil Power Pulsed DC
Sampling Rate Programmable from 1 to 63 seconds. Standard sampling period is 15 seconds.
Display Two lines x 15 characters (7 on top + 8 on bottom), LCD display
Programming Three external buttons
Units of Measure Gallons, ounces, MGD, liters, cubic meters, cubic feet, imperial gallon, barrel, hectoliter and acre feet
Battery Life Standard: 10 years with one battery pack; optional: up to 20 years with two battery packs for sizes 6 in. (DN 150) or smaller.
Power Supply Standard: Internal lithium batteries 3.6 volt, optional external battery pack
Optional: battery back-up model (100…240V AC or 9…36V DC)
Processing Low power microcontroller (16 bit)
Amplifier Housing NEMA 4X (IP67, optional IP68), cast aluminum, powder-coated paint
Mounting Detector-mount or remote wall mount (bracket supplied)
Meter Enclosure Classification Standard: NEMA 4X (IP67); Optional: Submersible NEMA 6P IP68, remote amplifier required
Junction Box
EnclosureProtection
For remote amplifier option: Powder coated die-cast aluminum, NEMA 4 (IP67)
Approvals NSF/ANSI/CAN 61 and
372 Listed
Models with hard rubber liner 4 in. (DN 100) size and up; PTFE liner, all sizes.
OIML R49-1
MID MI-001

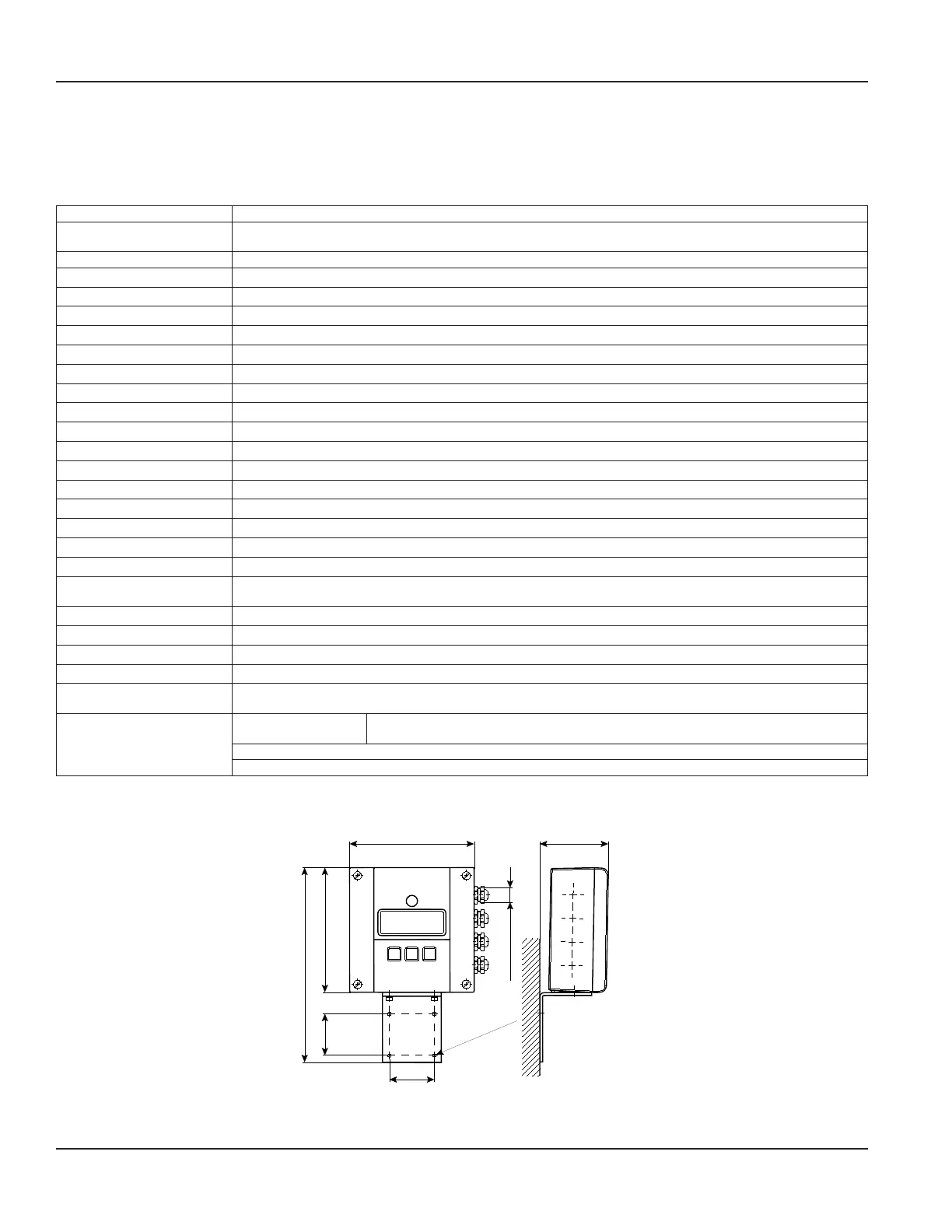

M5000 Amplier Dimensions in Inches (Millimeters)
7.09 (180)
M20 (x4)
2.36 (60)
Ø0.20 (5.2)
2.56 (65)
Specications
MAG-UM-00219-EN-17Page 46 June 2021
