METER LOCATION, ORIENTATION AND APPLICATIONS
The M5000 provides two amplifier mounting options: a meter mounted option and a remote option.

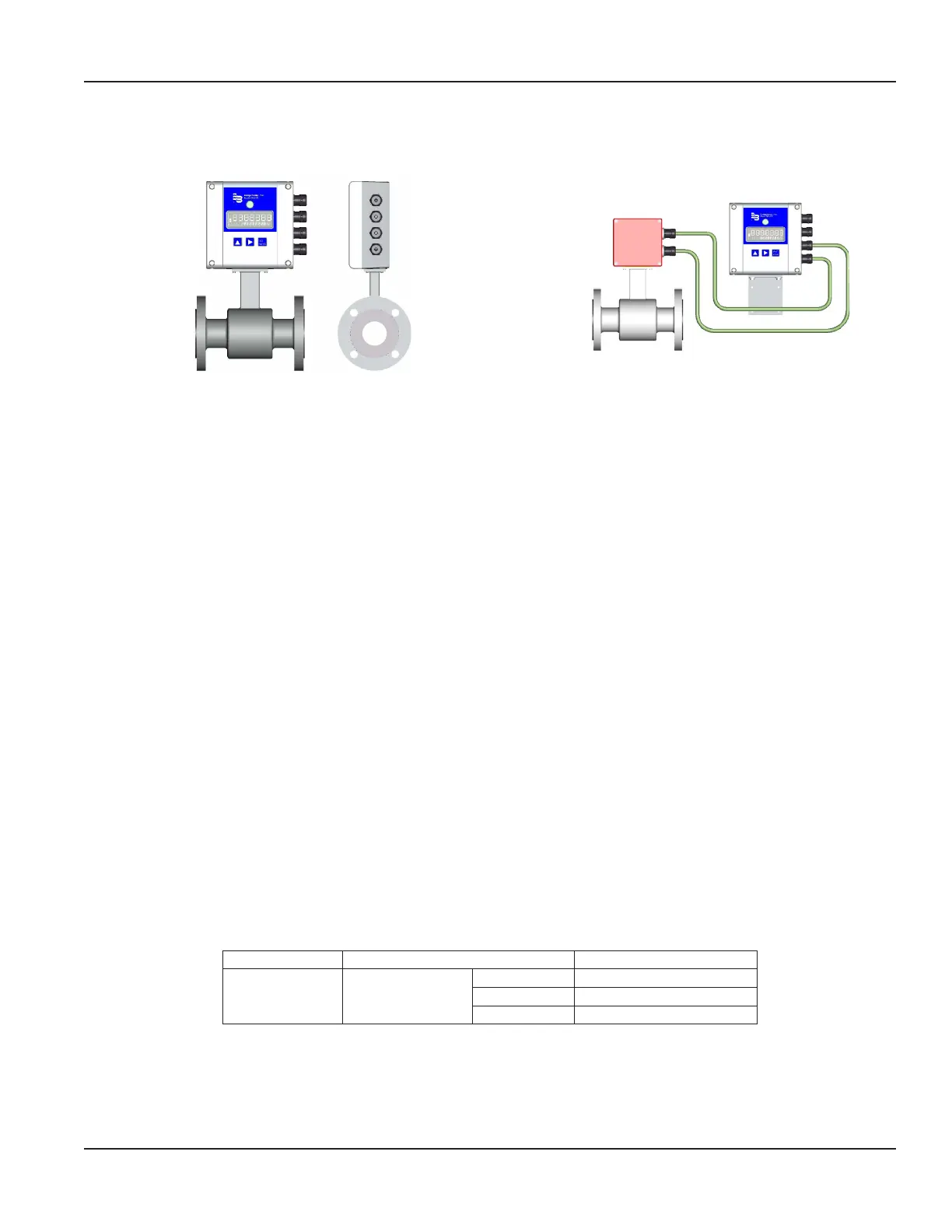

Meter mounted option Remote option
Figure 5: Amplifier mounting options
Remote Option
Use a remote amplifier in the following situations:
• Detector protection class IP 68
• Detector to be mounted in a vault (see note on previous page)
• Fluid temperature is greater than 212° F (100° C)
• Strong vibrations at meter location
Remote Amplifier Outdoor Location
The amplifier can be installed and operated outdoors. However, it must be protected from the elements, as follows:
• The ambient environment/temperature rating for the unit is –4…140° F (–20…60° C).
• If an indoor location is within 100 feet (30 meters) of the detector, consider increasing the cable length (up to 100 ft)and
mounting the amplifier indoors.
• At minimum, fabricate a roof or shield over and/or around the amplifier to protect the LCD display screen from
directsunlight.
• Do not install the signal cable close to power cables, electric machines, and more.
• Secure the signal cables. Due to capacity changes, cable movements may result in incorrect measurements.
Temperature Ranges
• To prevent the meter from any damage, strictly observe the amplifier’s and detector’s maximum temperature ranges.
• In regions with extremely high ambient temperatures, it is recommended to protect the detector.
• In cases where fluid temperature exceeds 212° F (100° C), use the remote amplifier option.
Amplifier Ambient temperature –4…140° F (–20…60° C)
Detector Fluid temperature
PTFE / PFA –40…302° F (–40…150° C)
Hard rubber 32…176° F (0…80° C)
Soft rubber 32…176° F (0…80° C)
Meter Location, Orientation and Applications
MAG-UM-00219-EN-17 Page 9 June 2021
