Badger Meter ModMAG M5000 User Manual

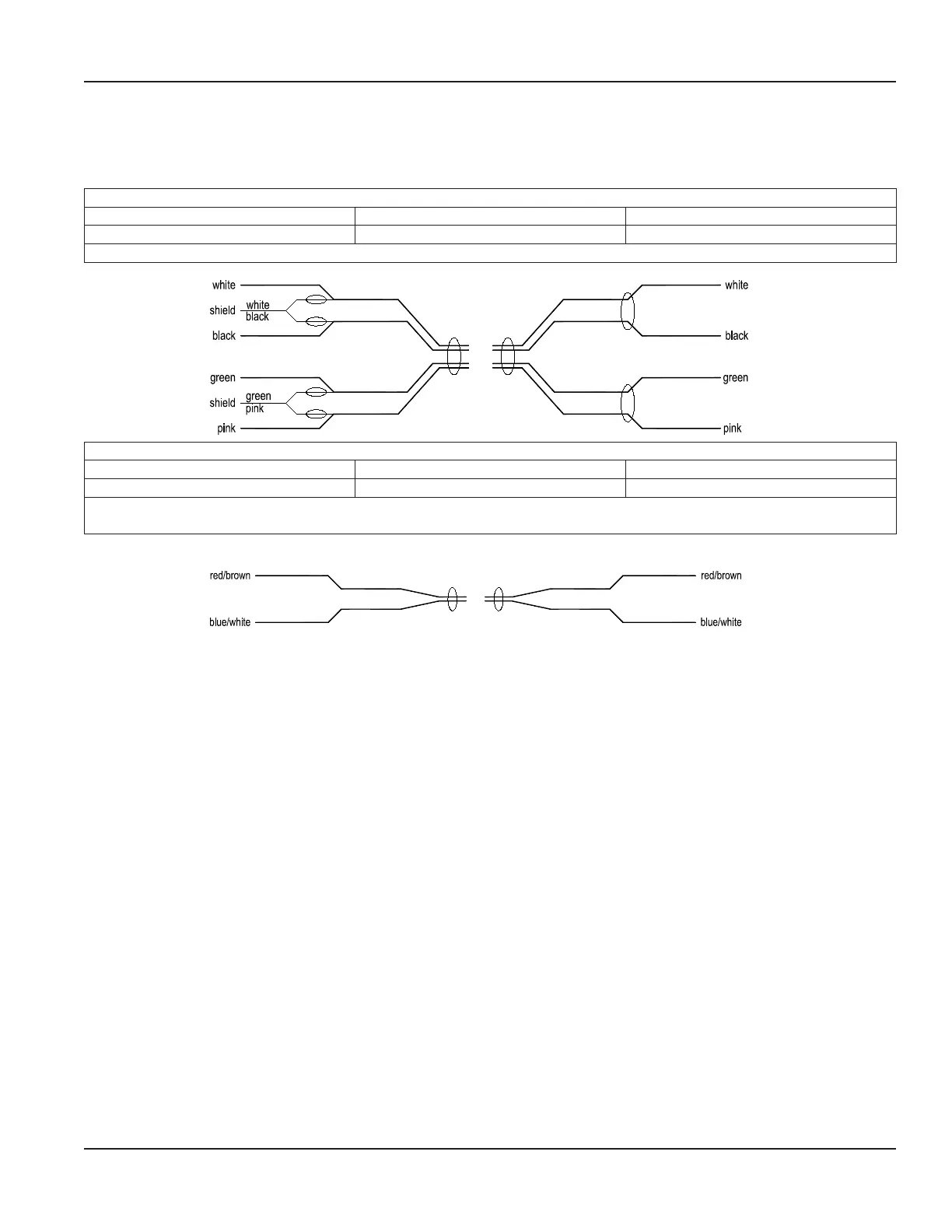

Signal Cable Specication
• Only use signal cables delivered by Badger Meter or corresponding cable in accordance with the following specification.
• Take maximum signal cable length between detector and amplifier into account (keep distance as low as possible).
Electrode Cable
Distance Type Capacity
Maximum 30 m RGB DY 5 × Kx 0.4/1.8 60 nF/km
Temperature range –10 bis +80° C
BA5000-23eMID
5 m - 30 m
Coil Cable
Distance Type Resistance
Maximum 30 m 1 × (2 × 0.34 mm²) < 115 Ω/km
PVC cable Typ Li2YCY (TP)
Temperature range –5 bis +70° C
BA5000-25eMID
5 m - 30 m
Installation
MAG-UM-00219-EN-17 Page 21 June 2021
