4. Connect the cables to the corresponding plugs on the left side of the board as
shown in Figure 31.
5. Close junction box cover again rmly.
BA16MID
R
Badger Meter
JBOX - PRIMO
REMOTE - REV1
From
Detector
To Amplifier
11 COIL
12 COIL
13 SHIELD
COIL 11
COIL 12
Shield 13
Shield 44
Shield 44
SHIELD 44
ELECTRODE 45
ELECTRODE 46
EMPTY PIPE 40
44 SHIELD
44 Shield
44 Shield
40 EMPTY PIPE
46 ELECTRODE
45 ELECTRODE

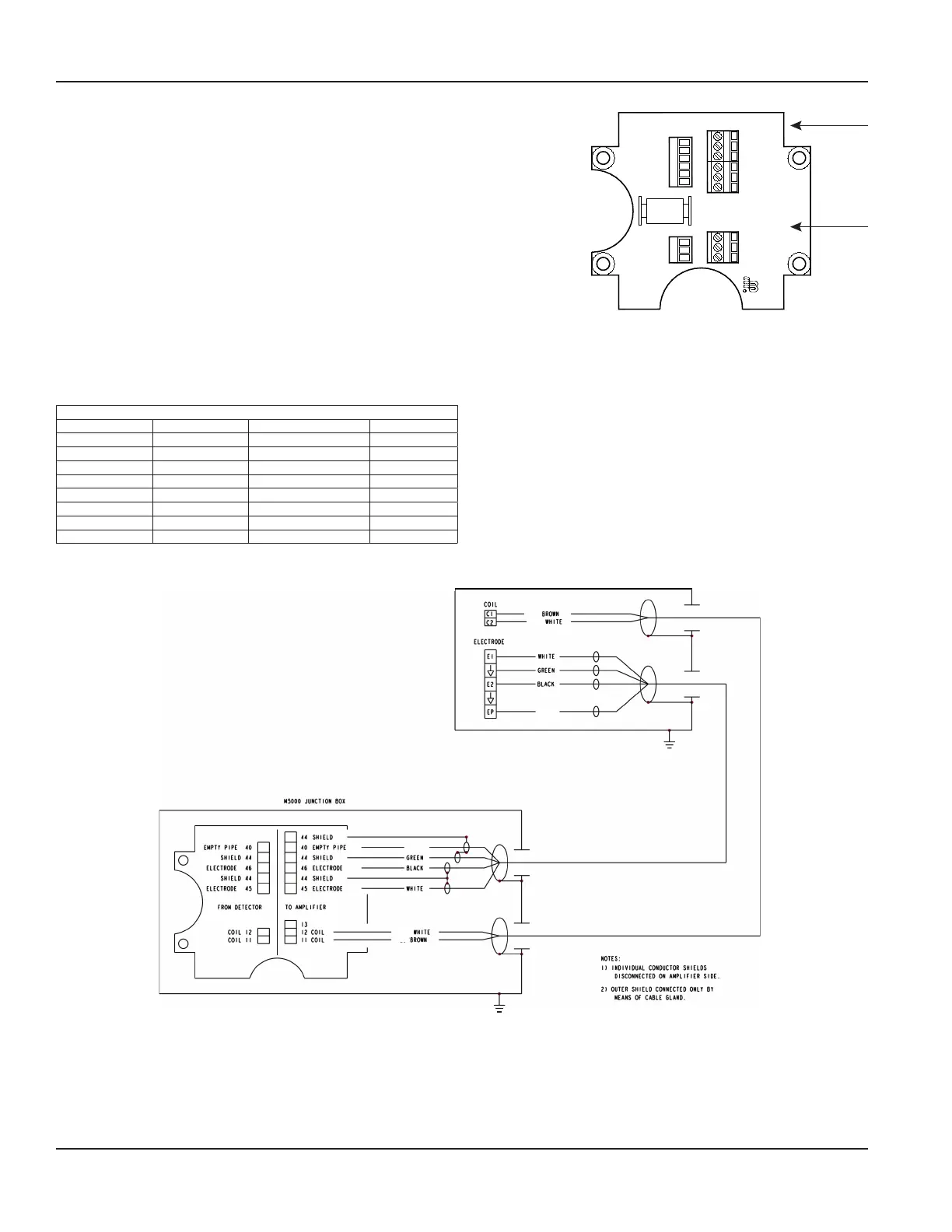

Figure 31: Cables to plugs
Wiring for Remote Configuration
Remote style M5000 amplifier models can be ordered with standard cables measuring 15, 30, 50 and 100 feet (5, 10, 15, and
30 m).
Junction Box
Terminal Description Wire Color
11 C1 Coil C1 Brown
12 C2 Coil C2 White
13 N/A Not Used
40 EP Empty pipe detection Red
44*
⏚
Shielding electrode —
44*
⏚
Shielding electrode Green
45 E1 Electrode E1 White
46 E2 Electrode E2 Black
*Connections with number 44 are on the same potential.
M5000 AMPLIFIER
RED
RED
Figure 32: Wiring for remote configuration
Installation
MAG-UM-00219-EN-17Page 20 June 2021
