INSTALLATION
For detectors with PTFE liner, do not remove protective cap on the flange until shortly before installation.
Remote Mount Installation
Mount Bracket to Amplifier
1. Align bracket-mounting holes with amplier mounting holes.
2. Attach bracket to amplier with supplied screws. Torque the screws to 80 inch-pounds.
Wiring Configuration
Connection on the amplifier
1. Open the cover of the amplier.

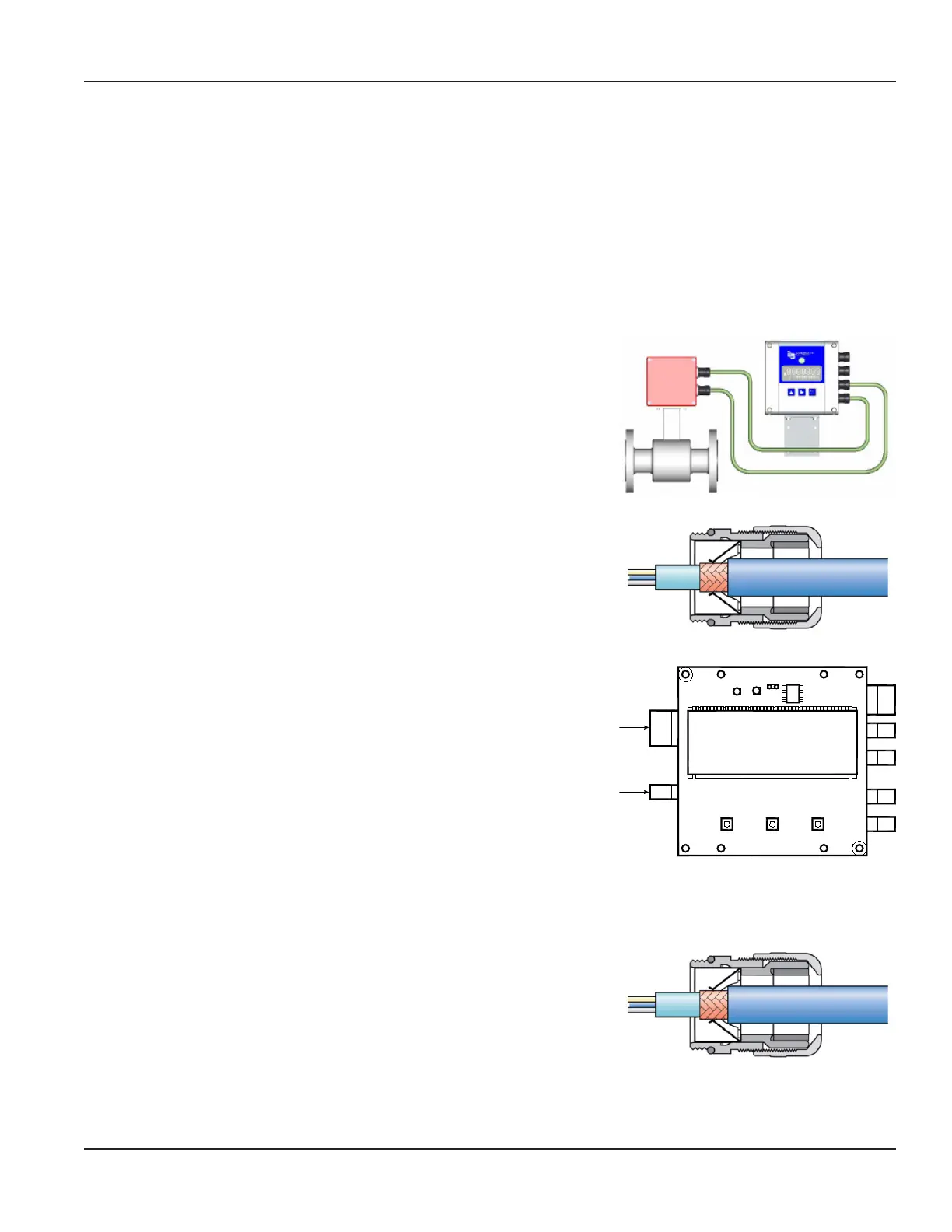

2. Push both cables through two dierent cable glands as shown in Figure 27.
Figure 27: Cables in cable glands
3. The cable entry should be done as shown in Figure 28.
Figure 28: Cable entry
4. Connect the cables to the corresponding plugs on the left side of the board as
shown in Figure 29.
5. Close cover tight.
Figure 29: Cables to plugs
Connection on the detector
1. Loosen xing screws of the connection cover and remove cover.
2. Push both cables through two dierent cable glands.
3. The cable entry should be done as shown in Figure 30.
Figure 30: Cable entry
Installation
MAG-UM-00219-EN-17 Page 19 June 2021
