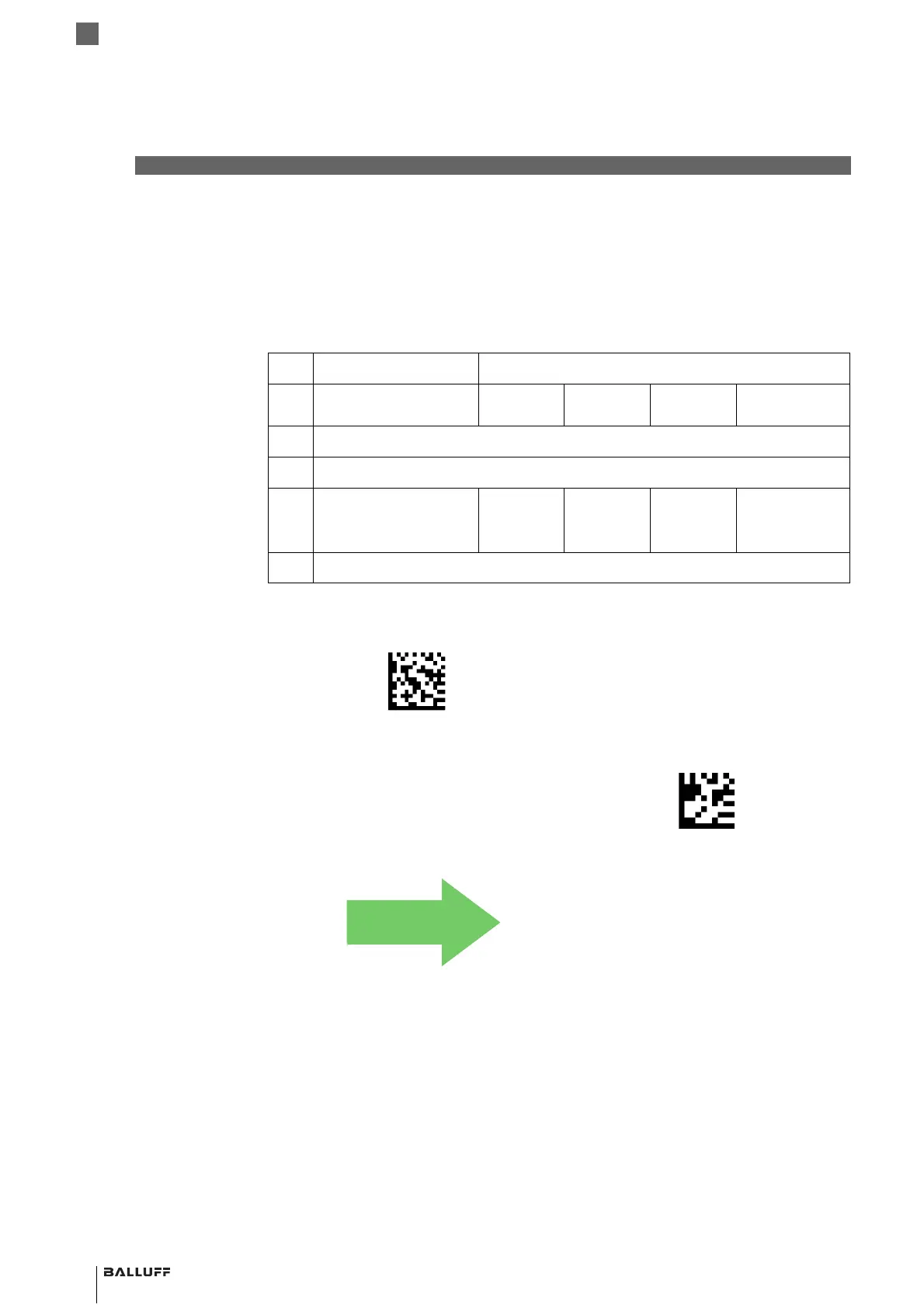

Configuration Using Barcodes
Balluff BVS HS-P Family
Industrial Handheld Barcode Readers
Code 39 Set
Length 1
This feature specifies one of the barcode lengths for Code 39 Length Control. Length 1 is the
minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Length includes the barcode’s data characters only. The length can be set from 0 to 50 charac-
ters.
Table Code 39 Length 1 Setting Examples provides examples for setting Length 1. See page 249
for detailed instructions on setting this feature.
Code 39
Length 1 Setting
Examples
STEP ACTION EXAMPLES
1 Desired Setting
00
Characters
07
Characters
15
Characters
50
Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT CODE 39 LENGTH 1 SETTING
4
Scan Two Characters
From Appendix D:
Keypad
‘0’ and ‘0’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Code 39 Set Length 1 Setting
Make a mistake? Scan the CANCEL barcode
to abort and not save the entry string. You
can then start again at the beginning.
CANCEL
$CC3L1
~
DEFAULT
02 = Length 1 is 2 Characters
