Configuration Using Barcodes
Balluff BVS HS-P Family
Industrial Handheld Barcode Readers

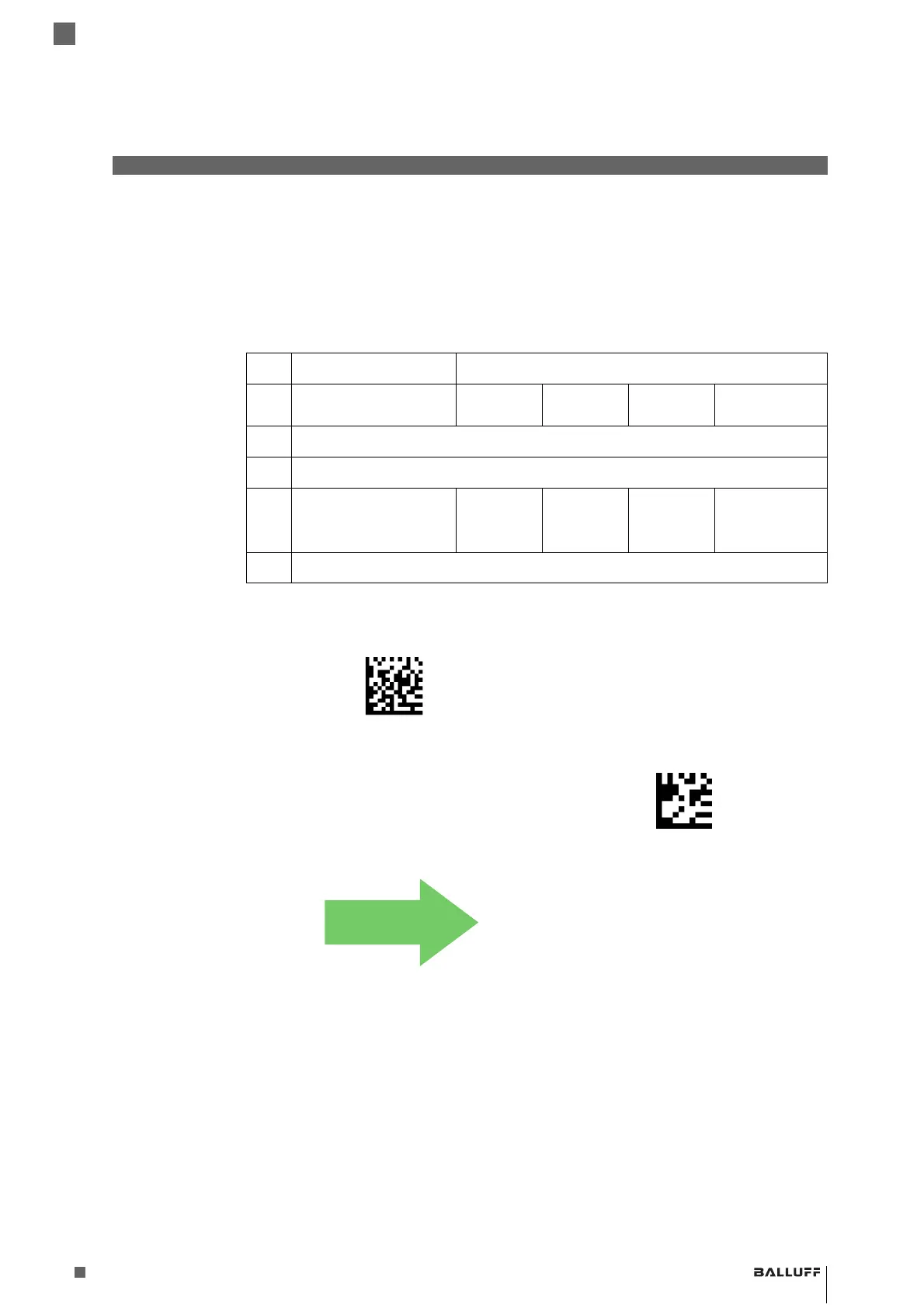

Code 39 Set
Length 2
This feature specifies one of the barcode lengths for Code 39 Length Control. Length 2 is the
maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length
Mode. Length includes the barcode’s check, data, and full-ASCII shift characters. The length
does not include start/stop characters.
Table Code 39 Length 2 Setting Examples provides examples for setting Length 2. See page 250
for detailed instructions on setting this feature.
Code 39 Length
2 Setting
Examples
STEP ACTION EXAMPLES
1 Desired Setting
00 (Ignore
This Length)
07
Characters
15
Characters
50
Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT CODE 39 LENGTH 2 SETTING
4
Scan Two Characters
From Appendix D:
Keypad
‘0’ and ‘0’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING .MODE
Select Code 39 Length 2 Setting
Make a mistake? Scan the CANCEL barcode
to abort and not save the entry string. You
can then start again at the beginning.
CANCEL
$CC3L2
~
DEFAULT
50 = Length 2 is 50 Characters
