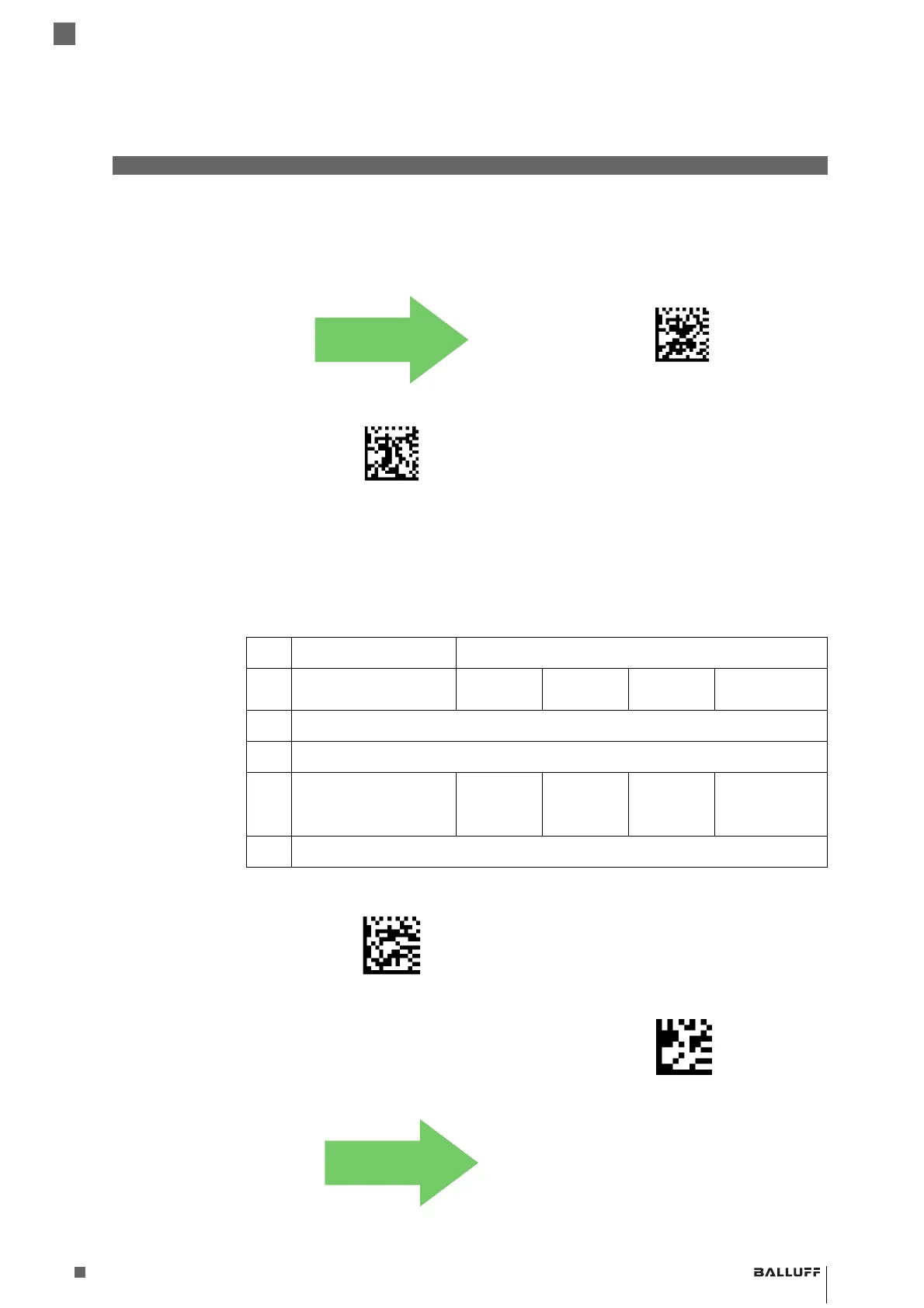

Configuration Using Barcodes
Balluff BVS HS-P Family
Industrial Handheld Barcode Readers
Code 128
Length Control
This feature specifies either variable length decoding or fixed length decoding for the Code 128
symbology. See
page 249 for more information.
Code 128 Set
Length 1
Specifies one of the barcode lengths for Code 128 Length Control. Length 1 is the minimum label
length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Length includes
the barcode’s data characters only. The length can be set from 1 to 80 characters.
Table Code 128 Length 1 Setting Examples provides some examples for setting Length 1. See
page 249 for detailed instructions on setting this feature.
Code 128
Length 1 Setting
Examples
Code 128 Length Control = Variable Length
Code 128 Length Control = Fixed Length
DEFAULT
C8LC00(CR
C8LC01(CR
STEP ACTION EXAMPLES
1 Desired Setting
01
Character
07
Characters
15
Characters
80
Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT CODE 128 LENGTH 1 SETTING
4
Scan Two Characters
From
Appendix D:
Keypad
‘0’ and ‘1’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘8’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Code 128 Set Length 1 Setting
Make a mistake? Scan the CANCEL barcode
to abort and not save the entry string. You
can then start again at the beginning.
CANCEL
$CC8L1
~
DEFAULT
01 = Length 1 is 1 Character
