Configuration Using Barcodes
Balluff BVS HS-P Family
Industrial Handheld Barcode Readers
I 2 of 5 Set
Length 1
This feature specifies one of the barcode lengths for I 2 of 5 Length Control. Length 1 is the mini-
mum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. The
length includes the barcode’s check and data characters. The length can be set from 2 to 50
characters in increments of two.

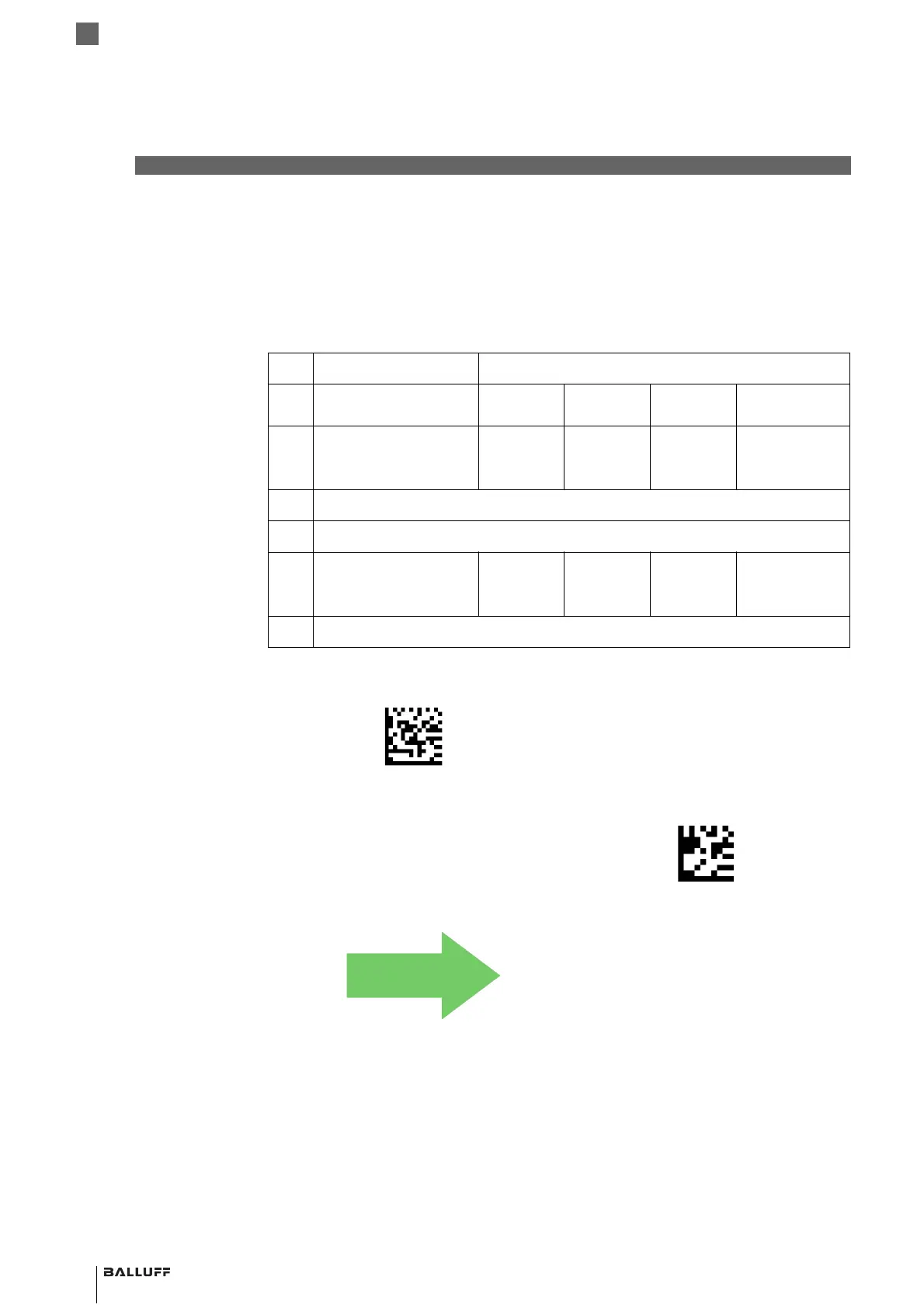

Table I 2 of 5 Length 1 Setting Examples provides some examples for setting Length 1. See
page 249 for detailed instructions on setting this feature.
I 2 of 5 Length 1
Setting
Examples
STEP ACTION EXAMPLES
1 Desired Setting
2
Characters
6
Characters
14
Characters
50
Characters
2
Pad with leading
zeroes to yield two
digits
02 06 14 50
3 Scan ENTER/EXIT PROGRAMMING MODE
4 Scan SELECT I 2 of 5 LENGTH 1 SETTING
5
Scan Two Characters
From Appendix D:
Keypad
‘0’ and ‘2’ ‘0’ and ‘6’ ‘1’ and ‘4’ ‘5’ AND ‘0’
6 Scan ENTER/EXIT PROGRAMMING MODE
Select I 2 of 5 Length 1 Setting
Make a mistake? Scan the CANCEL barcode
to abort and not save the entry string. You
can then start again at the beginning.
CANCEL
$CI2L1
~
DEFAULT
06 = Length 1 is 6 Characters
