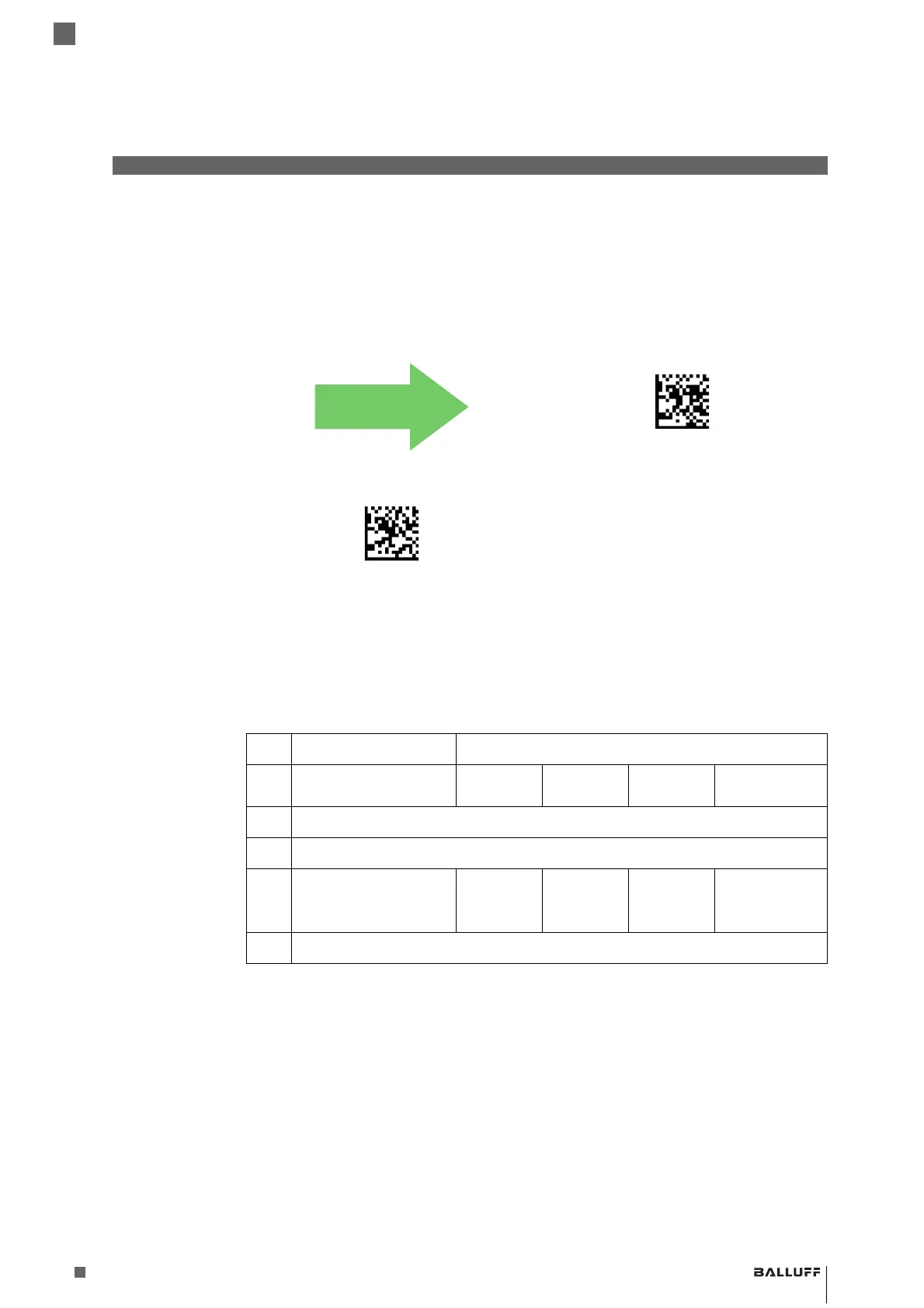

Configuration Using Barcodes
Balluff BVS HS-P Family
Industrial Handheld Barcode Readers
Standard 2 of 5
Length Control
This feature specifies either variable length decoding or fixed length decoding for the Standard 2
of 5 symbology.
Variable Length: For variable length decoding, a minimum and maximum length may be set.
Fixed Length: For fixed length decoding, two different lengths may be set.
Standard 2 of 5
Set Length 1
This feature specifies one of the barcode lengths for Standard 2 of 5 Length Control. Length 1 is
the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length
Mode. Length includes the barcode’s check and data characters. The length can be set from 1 to
50 characters.
Table Standard 2 of 5 Length 1 Setting Examples provides some examples for setting Length 1.
See page 249 if you want detailed instructions on setting this feature.
Standard 2 of 5
Length 1 Setting
Examples
Standard 2 of 5 Length Control =
Variable Length
Standard 2 of 5 Length Control = Fixed Length
DEFAULT
S2LC00(CR
S2LC01(CR
STEP ACTION EXAMPLES
1 Desired Setting
01
Character
07
Characters
15
Characters
50
Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT STANDARD 2 OF 5 LENGTH 1 SETTING
4
Scan Two Characters
From
Appendix D:
Keypad
‘0’ and ‘1’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
