Setup
Balluff BVS HS-P Family
Industrial Handheld Barcode Readers

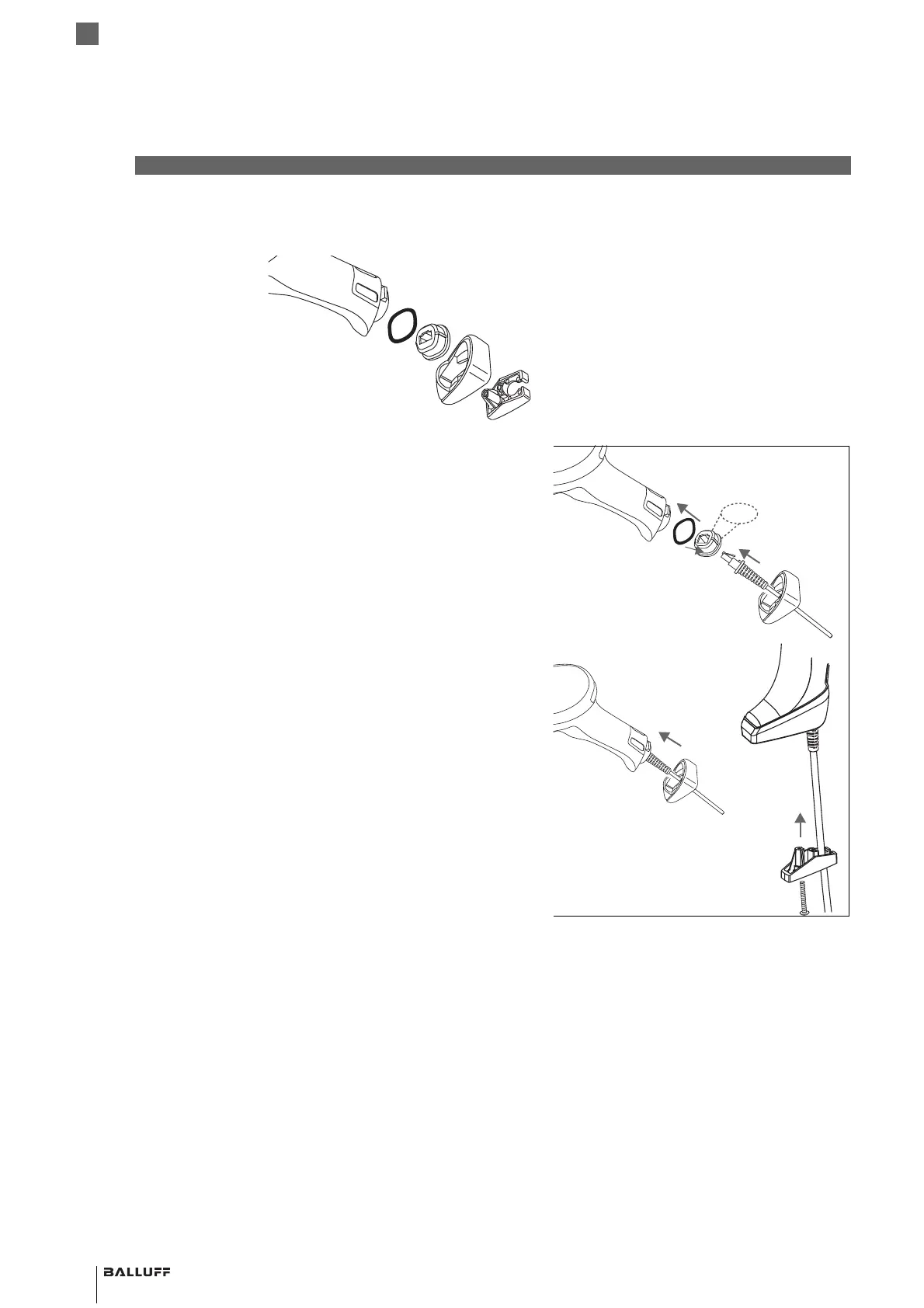

2.2.1 Connecting the
Cable (Corded
versions)
A. Rubber gasket
B. Cable Holder
C. Cover
D. Connector Holder
1 Slip the cable through the Cover.
2 Push the Rubber Gasket onto the Cable
Holder.
3 Push the Cable Holder and gasket into the
handle. Ensure that the “Front” marking on
the Cable Holder is facing out, with the
arrow pointing towards the front of the
reader.
4 Insert the end of the cable into the socket of
the Cable Holder.
5 Push the Cover along the cable towards the
reader, and hook it over the yellow “tooth”
on the back of the handle.
6 Insert the cable through the Connector
Holder, and push it up into the Cover.
7 Insert and tighten the screw to affix the
cable assembly to the reader handle.
A
B
C
D
FRONT>>
1
2
3
6
4
5
7
