Balluff BVS HS-P Series User Manual

19
www.balluff.com
2
Setup
Balluff BVS HS-P Family
Industrial Handheld Barcode Readers
2.3 Configuring the
Base Station
To set up your Base station cradle you must:
1 Physically install the cradle.
2 Make all system connections.
3 Configure the Base station cradle.
2.4 Mounting the
Base station
Cradle
The cradle package contains the following items:
The cradle can be either mounted on a flat surface for desktop usage or affixed vertically to a wall.
2.4.1 Mounting
Brackets
The cradle comes with two different mounting brackets. The appropriate bracket is used depend-
ing on whether the cradle will be mounted on a horizontal or vertical surface. When shipped, the
cradle has the Desktop Mounting Bracket installed. For vertical installation, the Wall Mounting
Bracket must be attached instead.

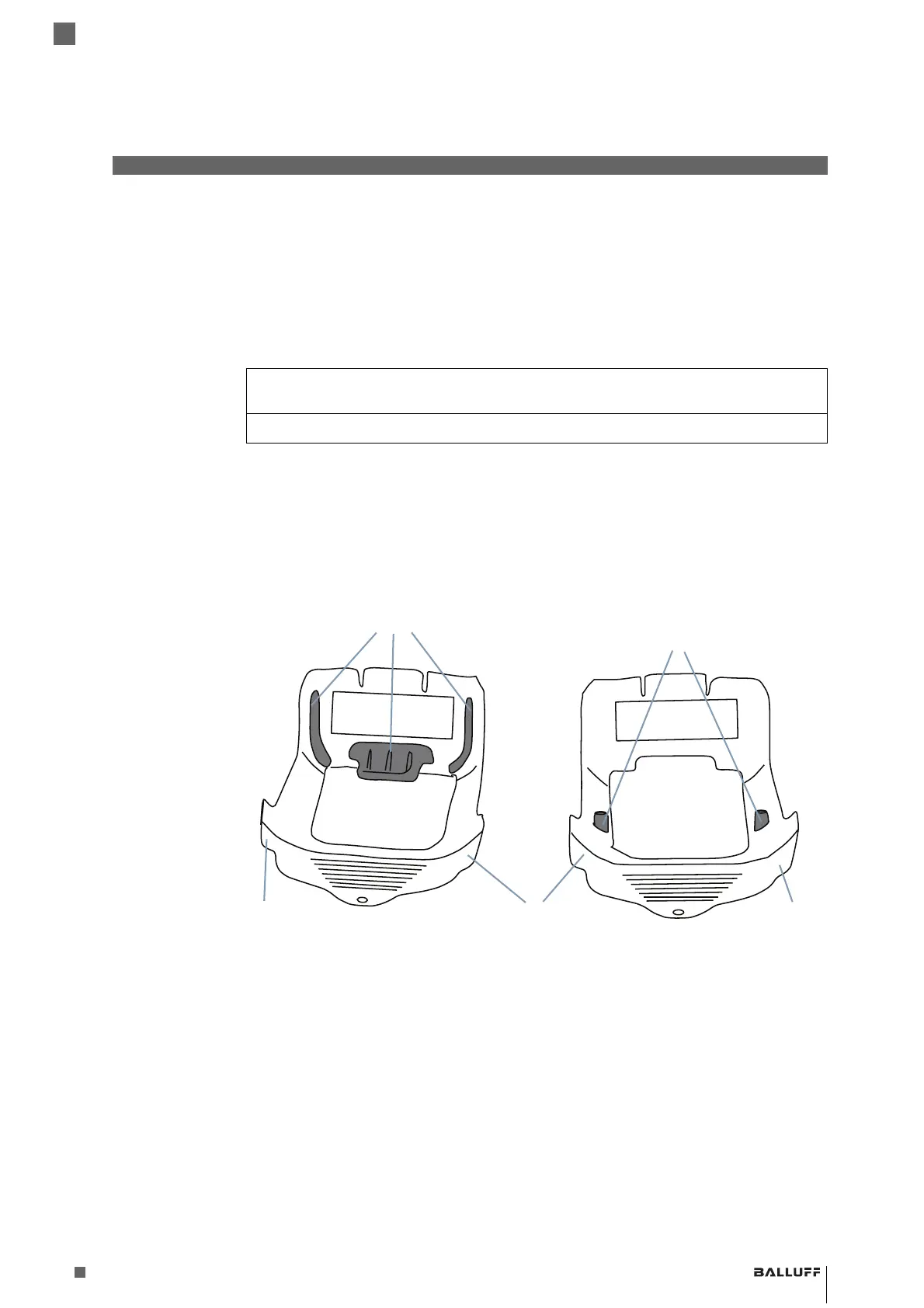

Figure 1: . Mounting Brackets
- Desktop mount bracket has ribs to keep the reader in place when the cradle is horizontal.
- Wall mount bracket contains bosses to keep the reader in place when the cradle is vertical.
To change the
Bracket:
1 Remove the screw holding the Bracket in place. Retain the screw for re-use.
2 Carefully lift off the Bracket.
3 Install the other bracket by first slipping the end tab into place on the base station, then easing
the tabs (shown in
Figure 1 on page 19) into place on the sides.
4 Replace the screw to secure the Bracket to the Base Station.
Base Station (with Desktop Mounting Bracket
installed)
1 Metal Mounting plate
Base station Quick Reference Guide (this manual) 1 Wall Mounting Bracket
Ribs
Bosses
Tab Tab Tab
Desktop Mounting Bracket
(Horizontal)
Desktop Mounting Bracket
(Vertical)
