Balluff BVS HS-P Series User Manual

20
2
Setup
Balluff BVS HS-P Family
Industrial Handheld Barcode Readers

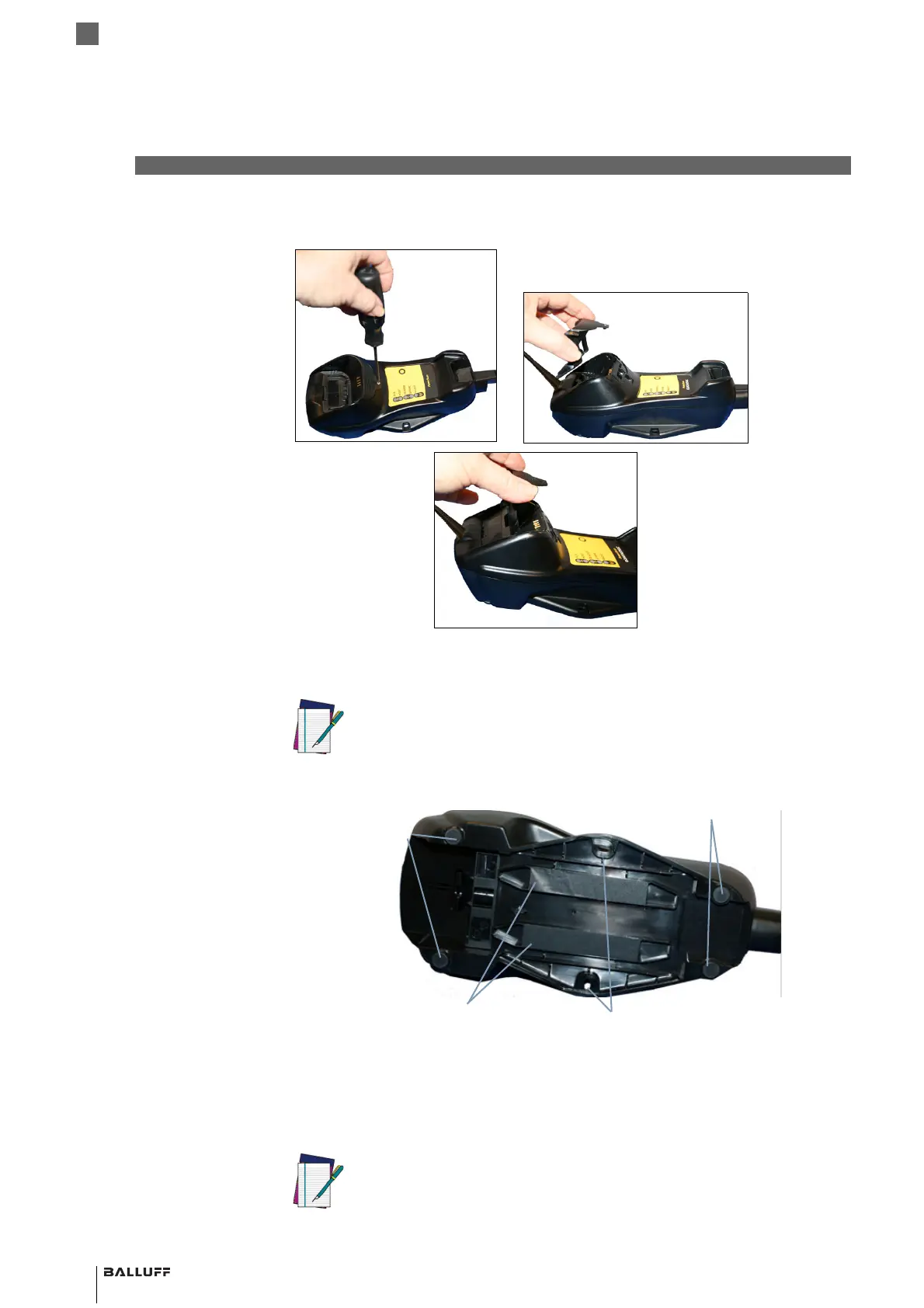

Figure 2: Changing the Bracket
2.4.2 Permanent
Mounting
For either desktop or wall mounting, the cradle can be fastened directly to a flat surface using
screws (not included).
Figure 3: . Base Station Bottom
2.4.3 Mounting for
Portable Use
If portability of the cradle is required, the metal plate must be used. There are two ways this can
be done: (1) by first mounting the metal plate on a flat surface so the cradle can be slid off and on,
or (2) mounting the metal plate onto the back of the base station and then screwing both to the
desired surface.
1
3
2
NOTE
When mounting on drywall, the base should be screwed to a wall stud or sup-
porting beam for additional support.
Mounting Holes
Protective Adhesive
Rubber Feet
Rubber Feet
Strips
NOTE
For additional security on wall mounting, it is strongly recommended that the
cradle be secured into place using two auxiliary screws through the mounting
holes on the side.
