Configuration Using Barcodes
Balluff BVS HS-P Family
Industrial Handheld Barcode Readers
Data Matrix
Length Control
This feature specifies either variable length decoding or fixed length decoding for this symbology.
Variable Length: For variable length decoding, a minimum and maximum length may be set.
Fixed Length: For fixed length decoding, two different lengths may be set.
Data Matrix Set
Length 1
Specifies one of the barcode lengths for Data Matrix Length Control. Length 1 is the minimum
label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Characters
can be set from 0001 to 3,116 characters in increments of 0001 (pad with zeroes).
See page 249 for detailed instructions on setting this feature.
Data Matrix Length Control = Variable Length
Data Matrix Length Control = Fixed Length
DEFAULT
$CDM-
$CDM-

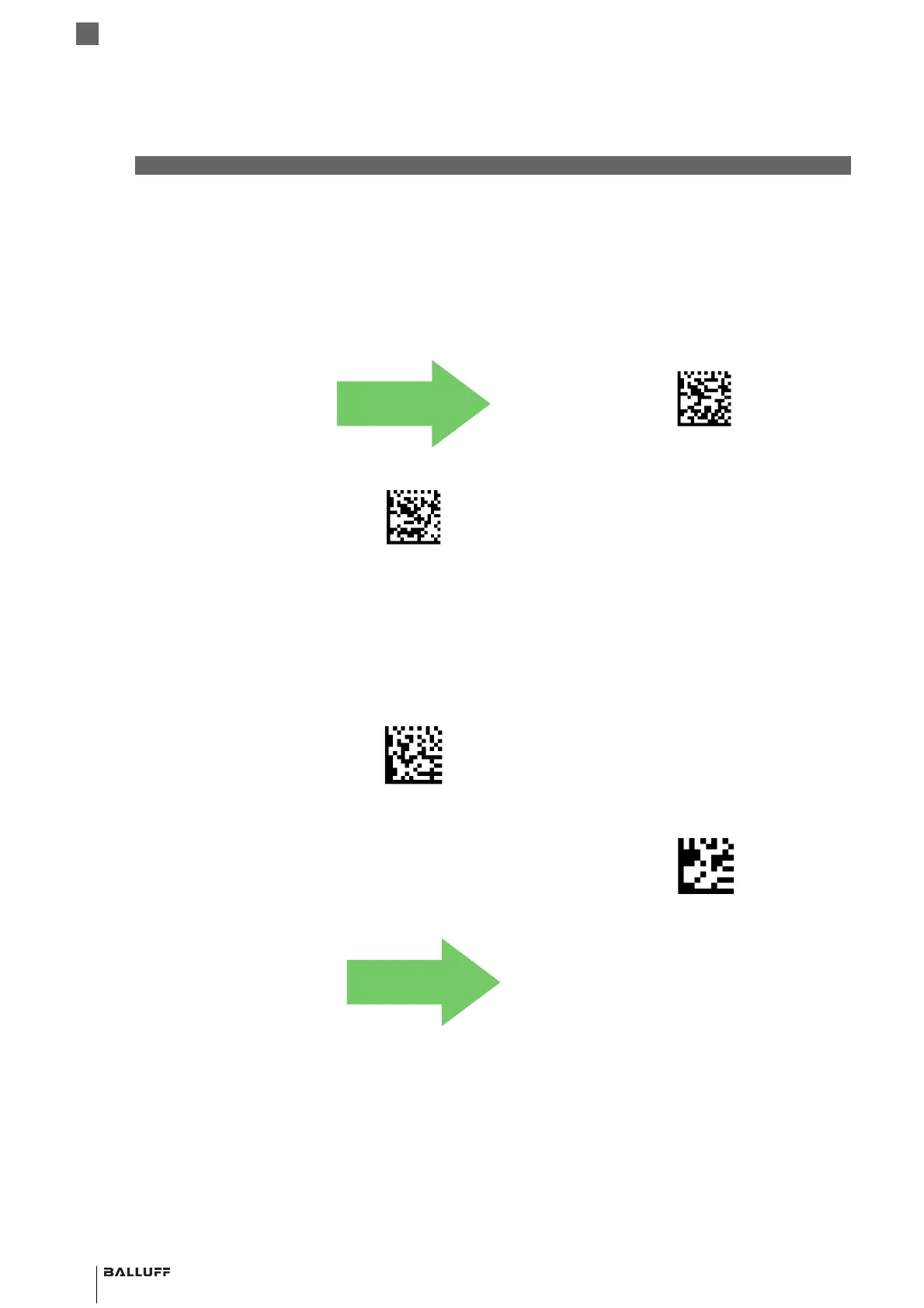

Select Data Matrix Length 1 Setting
To configure this feature, scan the ENTER/
EXIT PROGRAMMING MODE barcode
above, then the barcode at left followed by
the digits from the Alphanumeric characters
in Appendix D: Keypad representing your
desired character(s). End by reading the
ENTER/EXIT barcode again.
Make a mistake? Scan the CANCEL barcode
to abort and not save the entry string. You
can then start again at the beginning.
CANCEL
$CDML1
~
DEFAULT
0001 = Length 1 is 1 Character
