2. CSE-200 Specifications
Po we r con s umption
Powered over USB
5V DC
350mA Typical
500mA Maximum
Frequency band 2.4 GHZ and 5 G Hz
Wireless transmission protocol IEEE 802.11 a/b/g/n
Authentication protoco l WPA2-PSK in stand alone mode
WPA2-PSK or IEEE 802.1X in network integration mode
2.3 About the Base Unit
Base Unit
The Bas e Unit r eceives the w ireless input from the Bu ttons and controls the content of the mee ting room display and
the sound of the meeting room’s audio s ystem.
The Bas e Unit can be installed in two different way s.

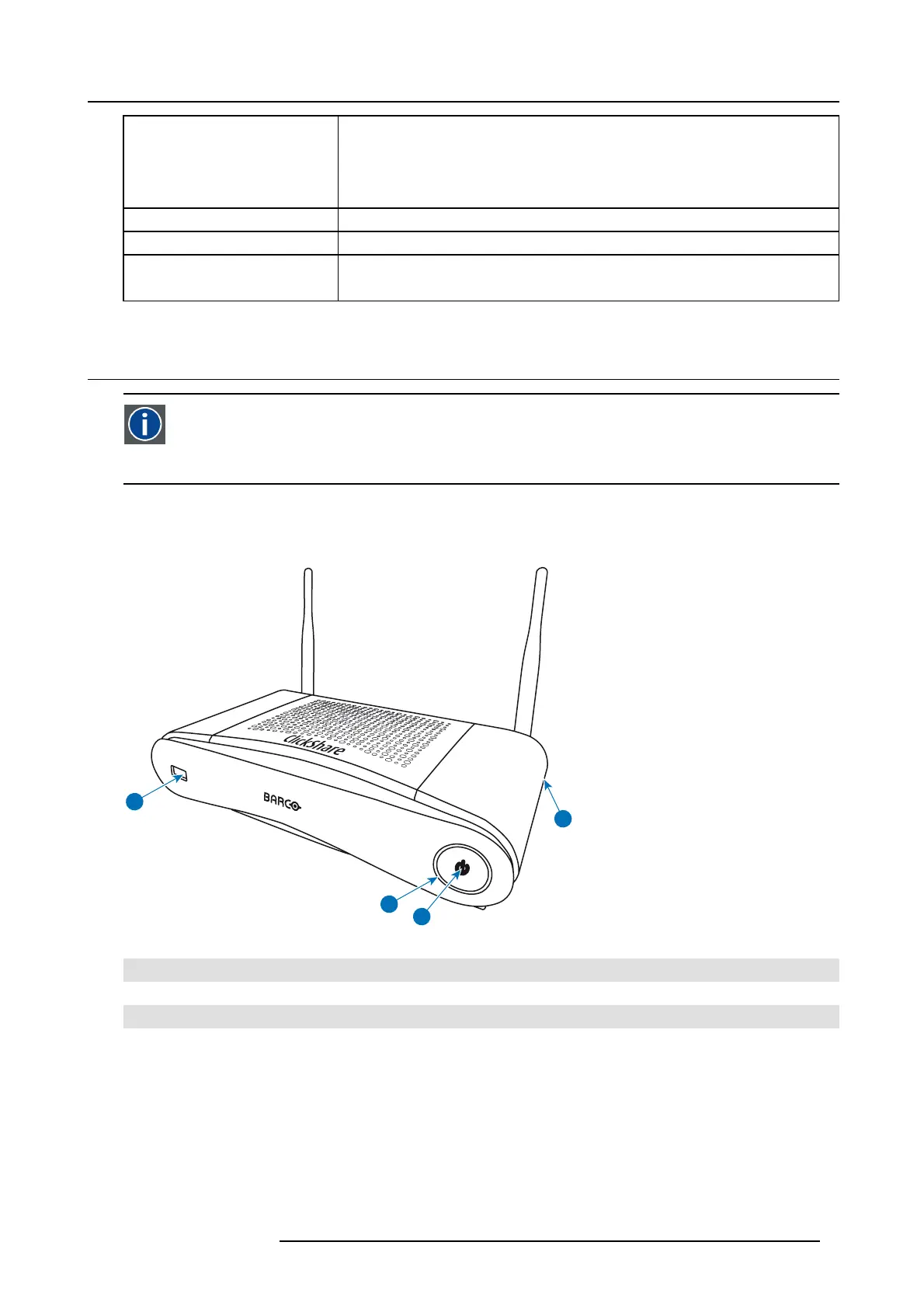

Front and Top layout of the Base Unit
At the front of the Base U n it you can find a power button and a US B por t. Status LED ring is mounted around the standby button of
the Base unit.
2
1
4
3
Image 2-2
Front panel Base Unit
1
USB port
2
Status LED ring
3
Standby Button
4 Kensington lock
Tabl e 2- 3
USB port
The USB port is used to update the soft- and firmware of both the B ase Unit and the Buttons. See also "Software update", page 63.
When plugging in the Button into the Base U nit, the Button is paired to the Base Unit. The B ase Unit checks whether the B utton’s
software and fi rmware are up to date. If not, the Base Unit updates the software and/or firmware.
To update the Bas e Unit software, download the latest version of the s oftware from the Barco website. Copy the file on a USB stick
and plug it into the USB port of the Base Unit. F ollow the progress and instructions on the display.
R5900023 CSE-200 11/04/2016
