6. Lenses & Lens selection
6.2 Lens selection
WhichlensdoIneed?
1. Go to Barco’s website o n www.barco.com and click on myBarco
2. Login on.
If you are not y et registered create a login a nd pas sword. W ith the created login and password, it is poss ible to enter myB arco.
When your login is correct, the start page is displayed.
3. Click the Support tab, then D igital cinema calculator (on th e left of the screen) and select the appropriate lens calculator.

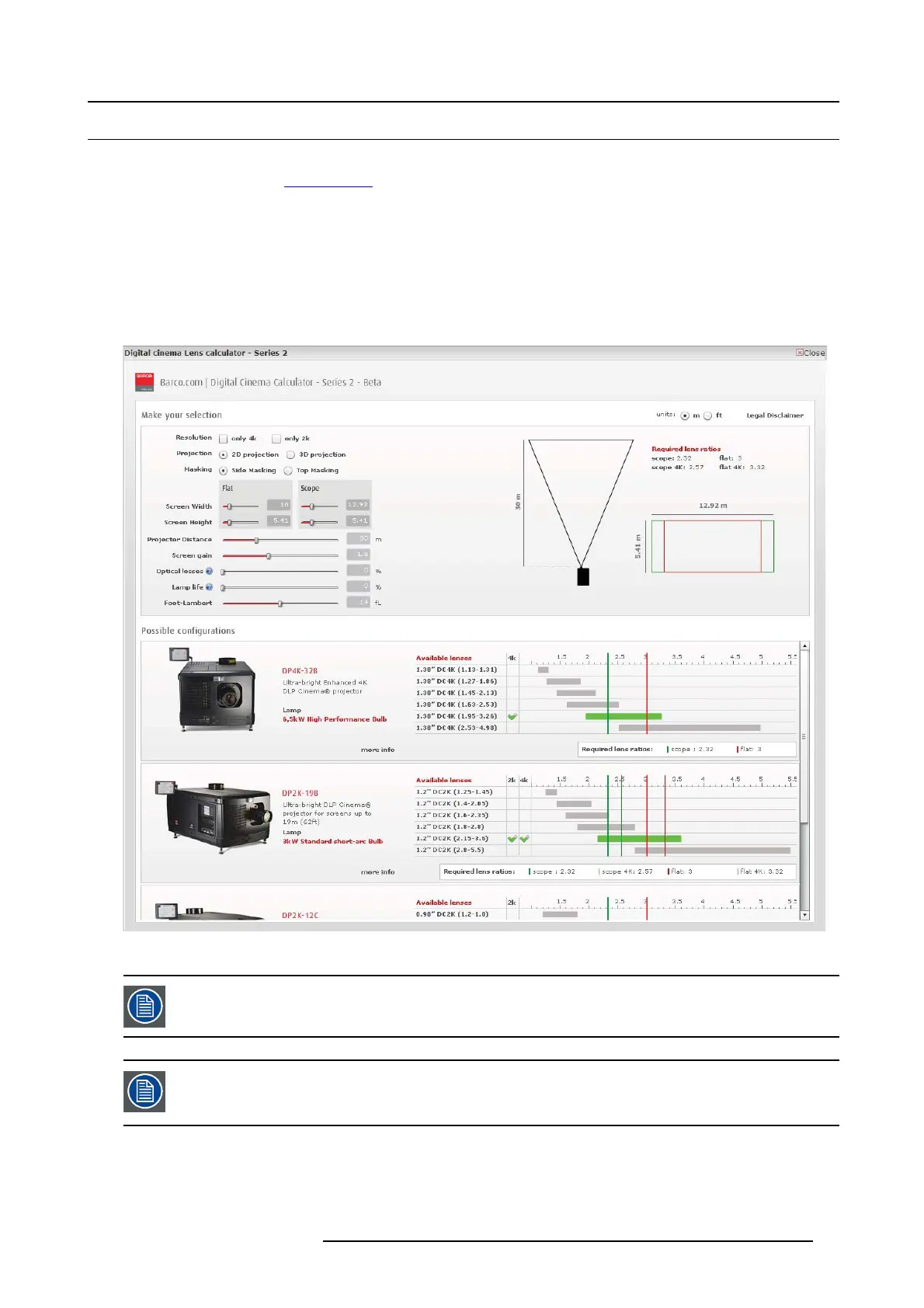

The lens ca lculator (see screenshot, image 6-6) will be displayed.
The lens calculator allows you to have an overview of which lenses are suitable for your specific p roje ct o r setup. Ju st make your
selection of parameters and all possible configurations are displayed.
Image 6-6
Digital cinema lens calculator
Take into account that wh en the projector is tilted the Screen Width you have t o fill in should be larger than
the physical screen width due to the keystone distortion of the projected image. How m uch larger depends
ontheamountoftilt.
Due to production tolerances the real distances can differ by 2% from the calculated values.
For critical situations ( fixed installs that use the lens at one of its extreme zoom positions) this should be
taken into account.
R5906693 DP2K-E SERIES 19/06/2015 33
