7. Input & Communication
7.1 Introduction
General
The Input & Communication side o f the DP 2K- E series p rojector consists of a Local Keypad integrated into the projector hou sing
and a card cage with three slots. The top side of the pro jector is equipped with a tail light which reflects the status of the projector.
The projector card cage is equipped with an ICMP. See illustration below. Note that all information about the ICMP is gathered into
one separated chapter: "ICMP", page 47.

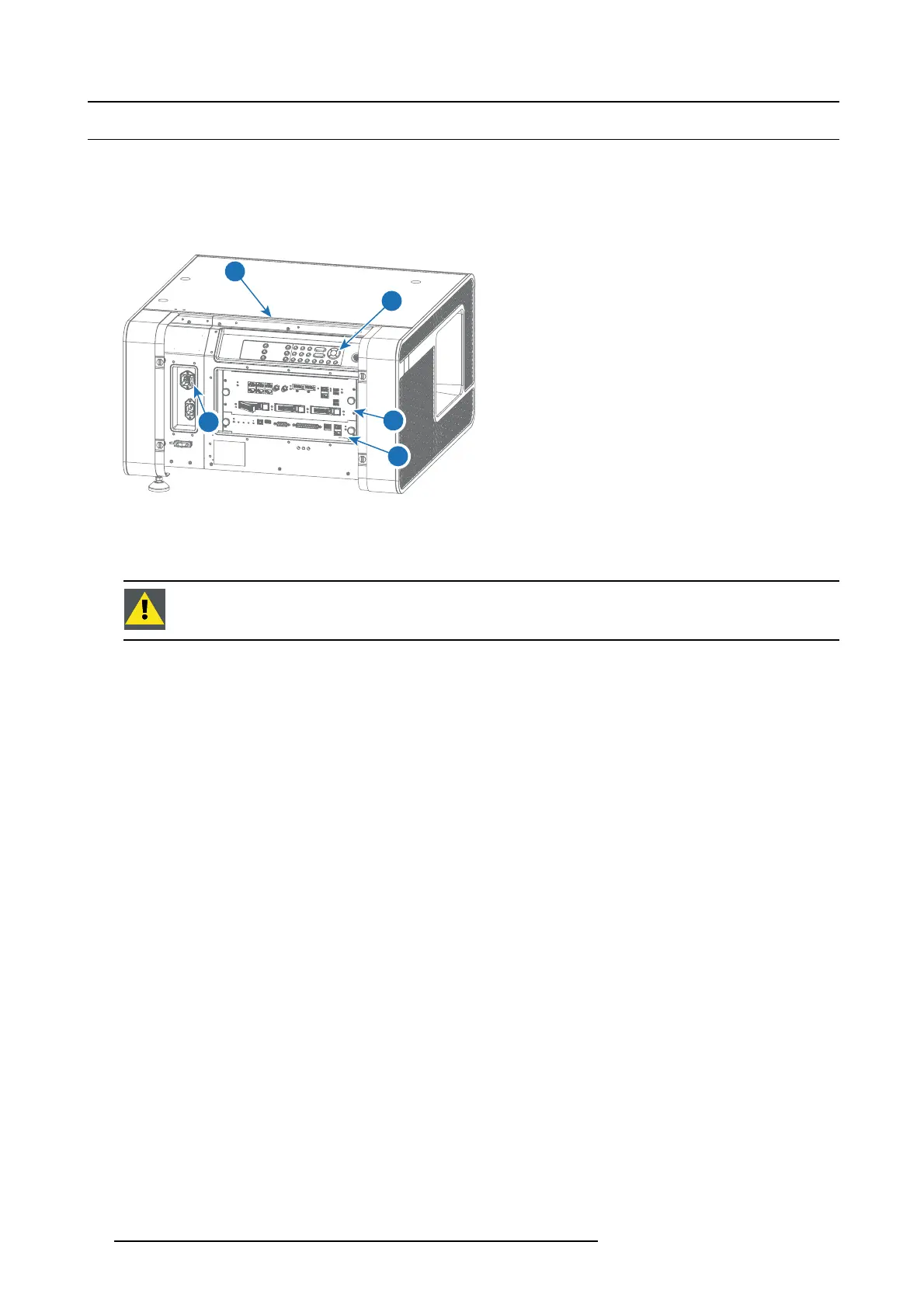

1
2
3
5
4
Image 7-1
1 Projector status light.
2 Power ON/OFF switch.
3 Local keypad.
4 Barco Cinema Controller.
5ICMP.
CAUTION: A unit may onl y be removed from the card cage b y q ualified service personnel. Rem oving one of
the boards (except for the Cinema Controller) will result in an authorization request upon starting.
