9. Communicator Touch Panel

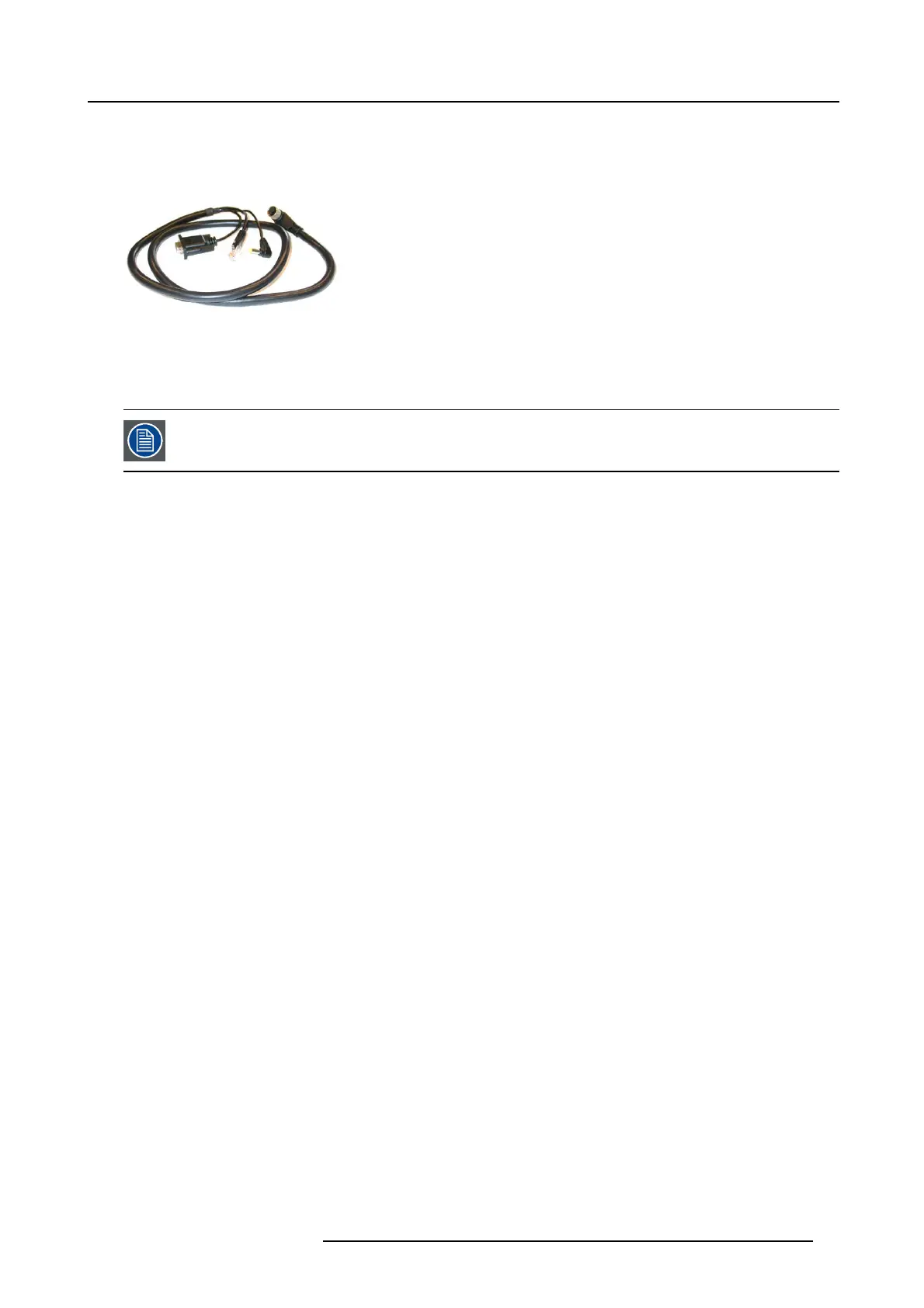

Touch Panel power/data cus tomized cable

Image 9-3

Customized cable to connect Touch Panel interface with the Barco projector.

The Commu nicator Touch Panel has its o w n user gu ide which latest version is available o n the B arco w ebsite.

R5906693 DP2K-E SERIES 19/06/2015 71
