10. Scheimpflug
How to adjust the Back Focal Length?

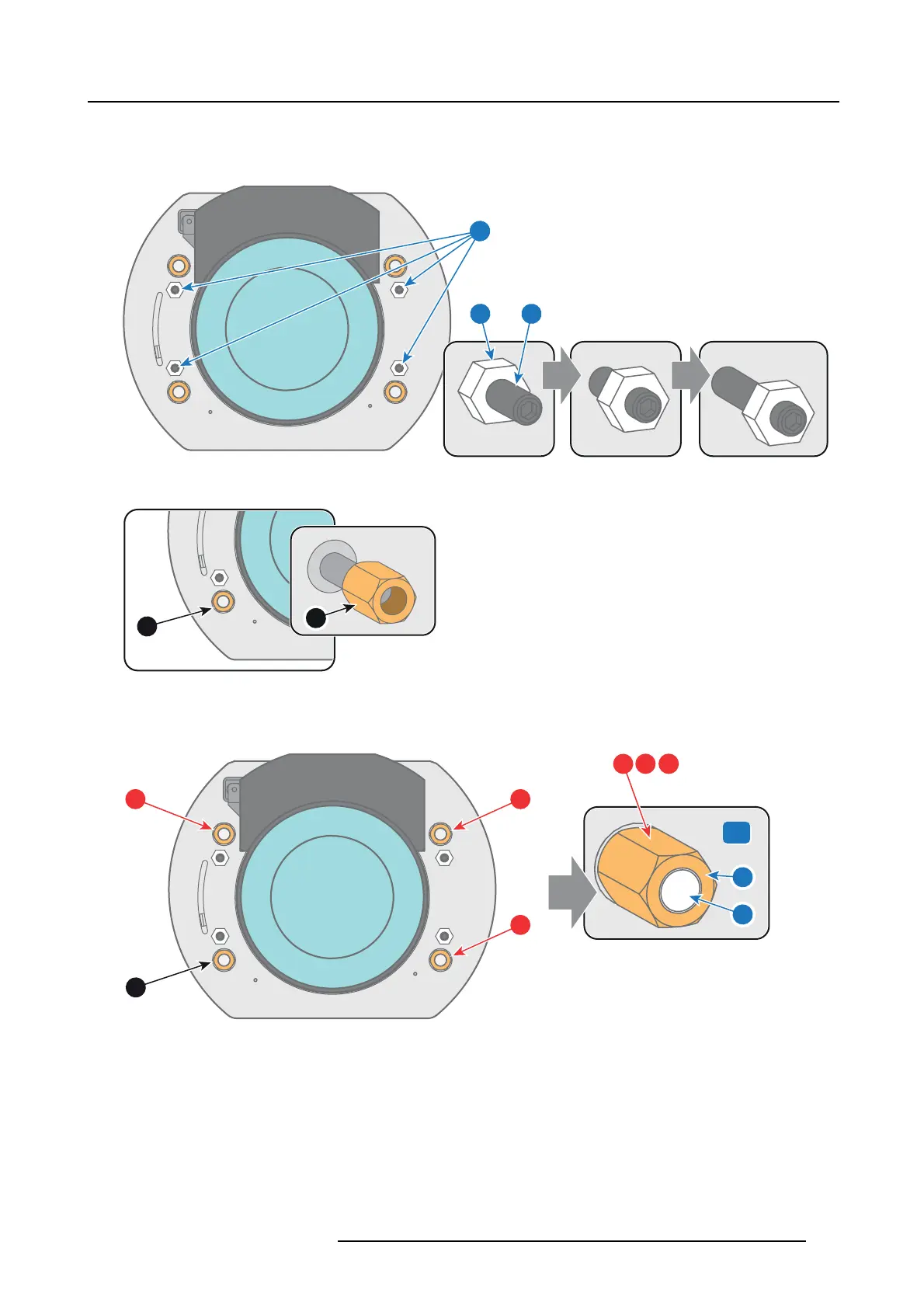

1. Unlock and loosen the 4 set screws (reference 11 image 10- 15) of the Lens H older by 1 centimeter. Use a 10mm nut driver for
the lock nuts ( reference 21 image 10-15) and use a 3mm Allen wrench for the set screws.
11
1121
Image 10-15
2. Fully loosen the Scheimpflug nut at the lower left o f the Lens Holder (reference 4 image 10-16). U se a 13mm nut driver.
4
4
Image 10-16
3. Turn the three Sc heimpflug adjustment nuts, reference 1, 2 and 3 image 10-17, until the front of the nut (reference 5 image 10-17)
is equally aligned with the front of the threaded rod (reference 6 image 10-17). Use a 13mm nut driver.
Note: This is the nom inal pos ition of the Lens Hol
der.
21
3
5
6
3
x
3 x
1
2 3
4
Image 10-17
4. Zoom the lens for m axim um image on the screen (WIDE) and focus the c enter of the projected image using the motorized focus
control (Local Keypad).
R5906847 DP2K SLP SERIES 02/06/2017
101
