30 Encore Presentation System • User’s Guide
NK==fåíêçÇìÅíáçå
System Overview
• Dual Mixer Effect 2
With this dual Mixer effect, you can transition backgrounds between sources A
and B, plus independently size, position, cut or fade a PIP and key on each Mixer.
Transitions within the PIPs cannot be performed. The DSK can be used without
restriction.

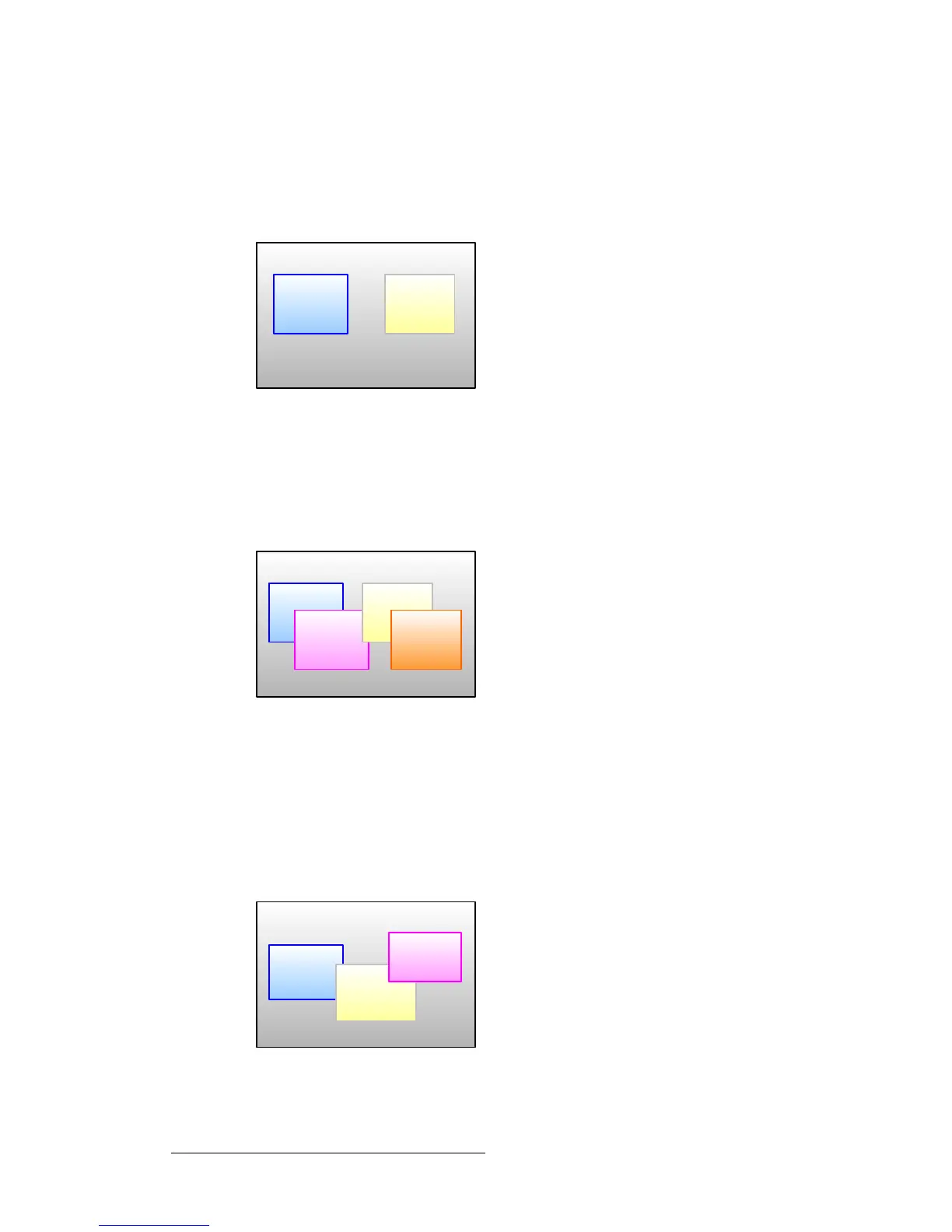

Figure 1-12. Dual Mixer Effect 2
• Dual Mixer Effect 3
This effect enables you to transition between backgrounds, and size/position four
PIPs on screen — with or without the DSK. In addition, any PIP could be
substituted for a key, but transitions within a PIP (or transitions between keys)
cannot be performed.
Figure 1-13. Dual Mixer Effect 3
qêáéäÉ=jáñÉê=bÑÑÉÅíë
A triple Mixer Encore system provides two backgrounds, a total of six scalable layers in the
three Mixers plus an unscaled DSK.
• Triple Mixer Effect 1
With this three Mixer effect, you can transition between backgrounds, fade or cut
the DSK as desired, and independently transition within three PIPs.
Figure 1-14. Triple Mixer Effect 1
Background A l B
PIP
1A
PIP
2A
DSK
Key 1B Key 2B
Background A l B
PIP 1A
PIP 1B
PIP 2A
PIP 2B
DSK
Background A l B
PIP
1A l1B
PIP
2A l2B
DSK
PIP
3A l3B
