Encore Presentation System • User’s Guide 351
^K==péÉÅáÑáÅ~íáçåë
Pinouts
q~ääó=`çååÉÅíçê
Each Encore Controller provides one 25-pin D connector for issuing tally “relay closure”
commands to external devices. Eight tally circuits are provided. Please note:
• Tally outputs provide dry-contact relay closures between signal pairs or contact
closures to ground, whenever the corresponding input source is selected for
display on a Program output.
• Tally outputs may be used to signal when input devices (cameras) are “live.”
• Each contact has a rating of 1 Amp at 30 VDC, and 0.5 Amps at 125 VDC.
• A mating connector is required — see the diagrams below.

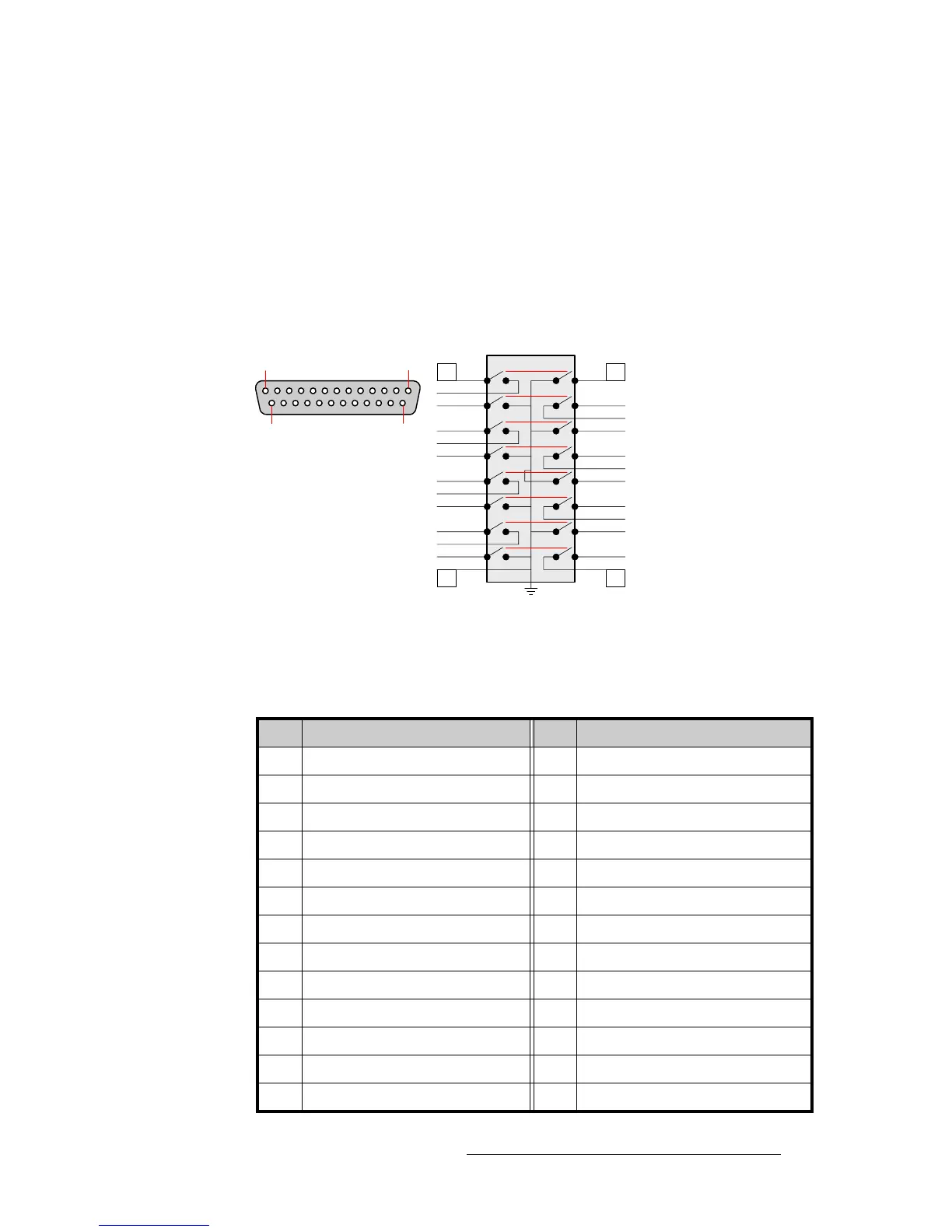

Figure A-6. Tally Connector and Circuit
The table below lists Tally Connector pinouts:
Table A-11. Tally Connector Pinouts
Pin Signal Pin Signal
1 Tally 1 contact closure 14 Tally 1 grounding closure
2 Tally 1 contact closure 15 Tally 2 contact closure
3 Tally 2 grounding closure 16 Tally 2 contact closure
4 Tally 3 contact closure 17 Tally 3 grounding closure
5 Tally 3 contact closure 18 Tally 4 contact closure
6 Tally 4 grounding closure 19 Tally 4 contact closure
7 Tally 5 contact closure 20 Tally 5 grounding closure
8 Tally 5 contact closure 21 Tally 6 contact closure
9 Tally 6 grounding closure 22 Tally 6 contact closure
10 Tally 7 contact closure 23 Tally 7 grounding closure
11 Tally 7 contact closure 24 Tally 8 contact closure
12 Tally 8 grounding closure 25 Tally 8 contact closure
13 Signal ground
113
14 25
1 14
13 25
