Encore Presentation System • User’s Guide 349
^K==péÉÅáÑáÅ~íáçåë
Pinouts
bíÜÉêåÉí=`çååÉÅíçê

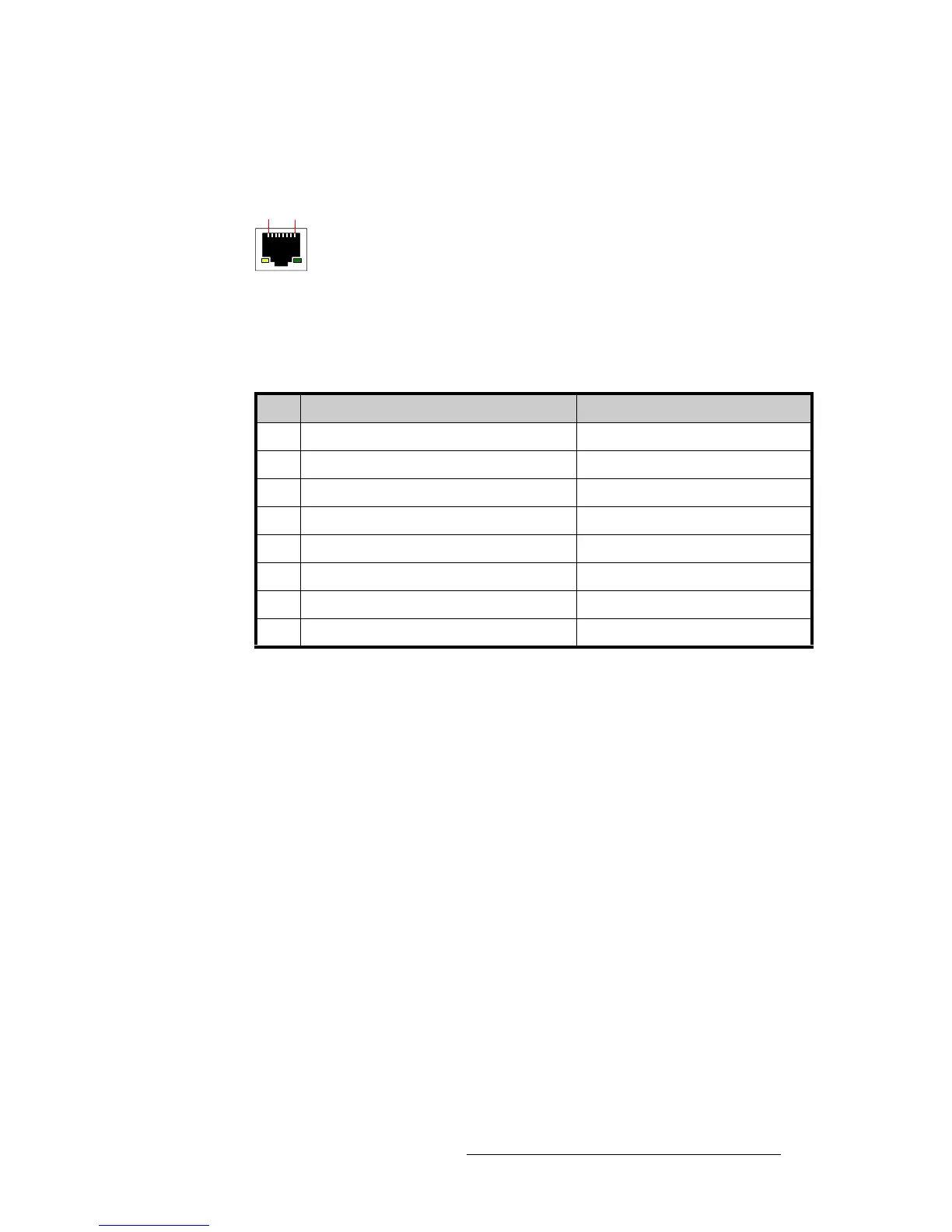

The figure below illustrates the Ethernet connector:
Figure A-4. Ethernet Connector
The table below lists Ethernet connector pinouts.
Table A-9. Ethernet Connector Pinouts
Pin Signal Wire Color
1 TX Data + White / Orange
2 TX Data - Orange
3 RX Data + White / Green
4Blue
5 White / Blue
6 RX Data - Green
7 White / Brown
8Brown
