Pinouts
^å~äçÖ=NRJéáå=a=`çååÉÅíçê
The figure below illustrates the analog 15-pin D connector:

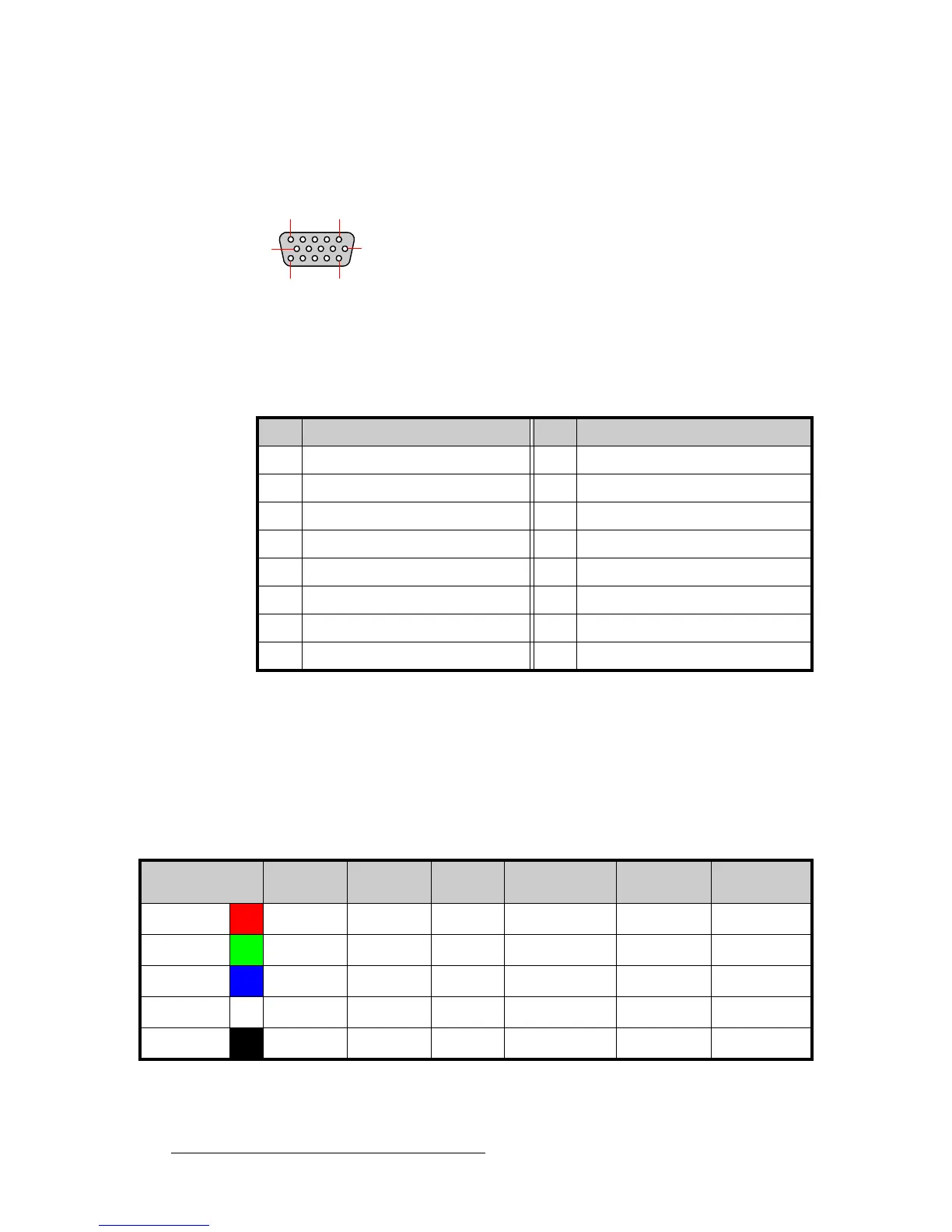

Figure A-3. Analog 15-pin D Connector
The table below lists Analog 15-pin D connector pinouts.
Note that each M/E’s Analog Input connectors (
A and B) accept a variety of analog formats
including VGA, low-resolution composite video, S-video and YUV component video.
• For RGB with H and V sync, use the VGA connector directly.
• Using a (customer supplied) VGA to 5xBNC breakout cable, multiple input
combinations are possible. Cells with check marks denote the connections
required for the indicated format.
Table A-7. Analog 15-pin D Connector Pinouts
Pin Signal Pin Signal
1Red 9
2 Green 10 GND
3Blue 11
412
5 13 H Sync or C Sync
6 Red return 14 V Sync
7 Green return 15
8Blue return
10 6
51
15 11
Table A-8. Analog Input Combinations using Breakout Cable
Breakout Cable
Wire Color
Composite
Video
S-Video
(Y/C)
YUV
(YP
b
P
r
)
RGB
Sync on Green
RGB
Comp Sync
RGB
Separate H V
R
3
(Chrom)
3
(P
r
)
3
3 3
G
3 3
(Lum)
3
(Lum)
3 3 3
B
3
(P
b
)
3 3 3
H Sync
3 3
V Sync
3
