58 Encore Presentation System • User’s Guide
3. Hardware Installation
Installation
qêáéäÉ=pÅêÉÉå=`çåÑáÖìê~íáçå

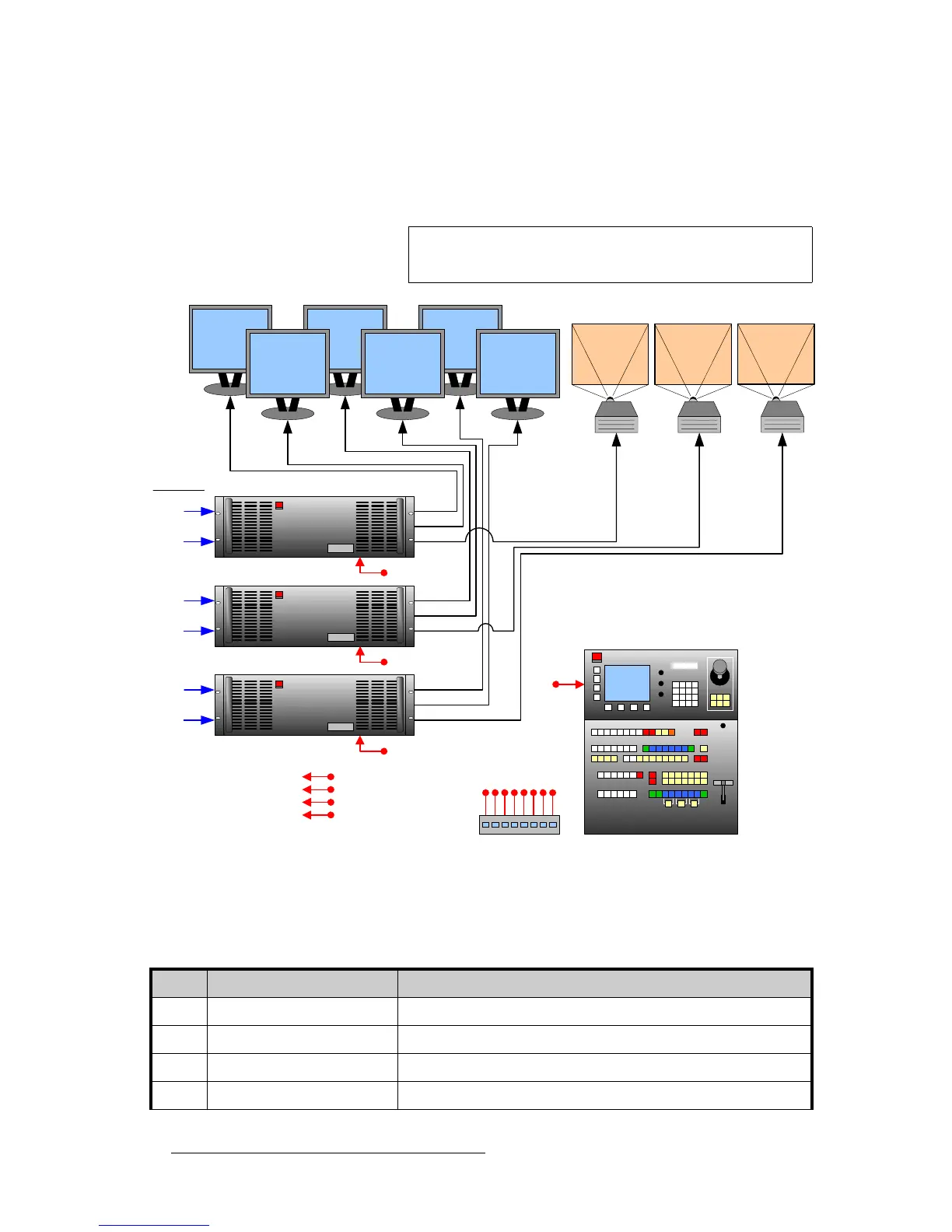

The figure below illustrates a block diagram of a triple screen Encore configuration. Aux
destinations are not shown. This diagram can be used as reference in the procedure.
Figure 3-2. Block Diagram, Triple Screen Encore Configuration
For this configuration, you will need:
Note
This procedure can be used for Encore configurations
consisting of from 2 to 32 screens.
PG 2
PVW
PG 1
Projector #1 Projector #2 Projector #3
Program #1 Program #2 Program #3
Preview #1 Preview #2 Preview #3
Controller SC or LC
Encore Video Processor #1
Encore Video Processor #2
Encore Video Processor #3
Ethernet Switch
PG 2
PVW
PG 1
PG 2
PVW
PG 1
Scaled
Sources
Unscaled
Sources
M/E Inputs
Scaled
Sources
Unscaled
Sources
Scaled
Sources
Unscaled
Sources
To:
Routers
ScreenPRO-II
PresentationPRO-II
ImagePRO
Table 3-3. Equipment List, Triple Screen Encore Configuration
Qty. Item Note
3 Encore Video Processors Use 2 for double screen application, 4 for quad screen, etc.
1 Encore Controller Model LC or SC
3 Video Projectors Customer supplied.
6 DVI or Analog Monitors Program and Preview (customer supplied).
