R5906788-03 Thor series64

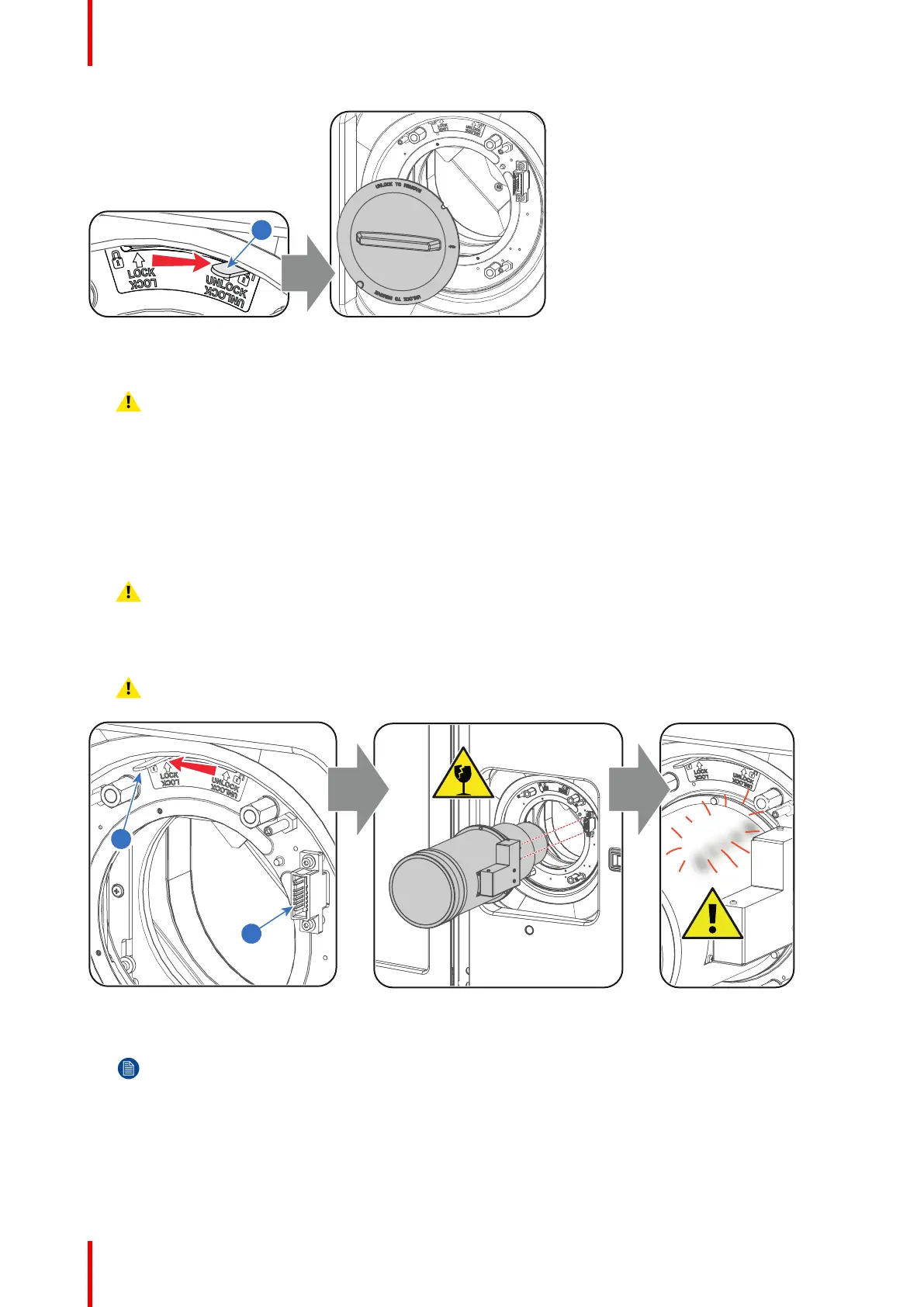

Image 7-2
2. Take the lens assembly out of its packing material and remove the lens caps on both sides.
Caution: Do not touch the glass of the lens!
3. Ensure that the Lens Holder stands in the On-Axis position (horizontal and vertical mid position). As best as
possible.
4. Place the Lens Holder in the “locked” position by moving the lens lock handle (reference 1 Image 7-3) to the
left, away from the lens power supply socket (reference 2 Image 7-3).
5. Gently insert the lens in such a way that the lens connector matches the socket. To prevent collision of the
lens ensure you centre the lens and keep it on-axis while approaching.
Warning: Do not release the Lens yet, as the Lens may fall out of the Lens Holder.
6. Push the lens completely against the Lens Holder front plate. An audible click should be noticed. Once
seated, there may be no airgap between lens flange and Lens Holder front plate.
Caution: Ensure that the lock handle remains in the “locked” position.
Image 7-3
Note: For frequent installation and removal of the lens it is recommended to install the lens while the
lock handle is in “open” position (to the right) and put the lock handle in “locked” position once the lens
is inserted. Then check if the lens is properly installed by trying to pull the lens out of the Lens Holder.
(this alternative procedure result in less wear of the Lens Holder and avoids the risk of moving and
misaligning the projector while pushing the lens inwards).
7. Check if the lens is really secured by trying to pull the lens out of the Lens Holder.
8. Activate the corresponding lens parameters for the installed lens. (See user guide of the “Projector Toolset”
chapter Installation > Advanced > Lens parameters)
