Barco Thor series Installation Manual

R5906788-03 Thor series 87
In direct mapping (level A) this is used to achieve higher frame rates. (50, 59.940 and 60 fps streams are
supported).

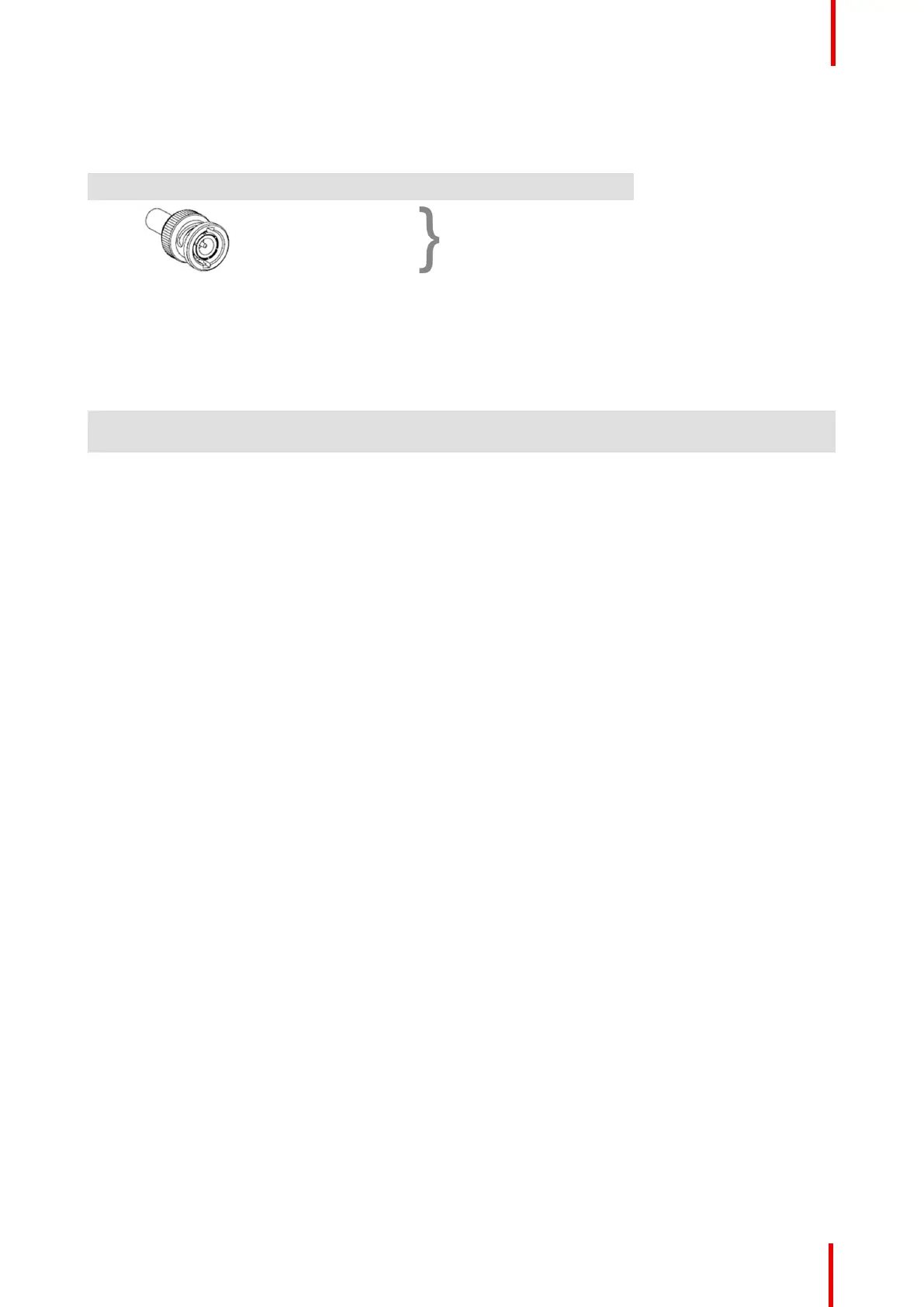

Dual Stream 3G HD-SDI signal
Dual Stream 3G
3Gb/s
HD 4:2:2 Signal #1
and
HD 4:2:2 Signal #2
Dual Stream 3G is a specific variant of the 3G signal which combines two completely separate 4:2:2 image
streams into a single 3G signal. This can be used to transmit stereoscopic streams by keeping the left and
right eye signals together.
SMPTE 292M STANDARD 1.485 Gb/s HD-SDI SIGNALS
Standard HD-SDI (SMPTE 292M) formats
SMPTE Standard
Source
Resolution
Frame Rate
Display Rate Scan Type
SMPTE 296M 1280 x 720 23.976
24
25
29.970
30
50
59.940
60
23.976
24
25
29.970
30
50
59.940
60
Progressive
Y Cb Cr 4:2:2 10-Bit
SMPTE 274M
SMPTE 428-8
1920 x 1080
2048 x 1080
23.976
24
25
29.97
30
23.976
24
25
29.97
30
Progressive
Y Cb Cr 4:2:2 10-Bit
SMPTE 274M
SMPTE 428-9
(SMPTE RP211)
1920 x 1080
2048 x 1080
23.976
24
25
29.97
30
23.976
24
25
29.97
30
Segmented frame
Y Cb Cr 4:2:2 10-Bit
SMPTE 274M 1920 x 1080 25
29.970
30
50
59.940
60
Interlaced
Y Cb Cr 4:2:2 10-Bit
Dual-Link HD-SDI (SMPTE 372M) formats
ICMP
