Operation and Control System
A: R82GB0FA.PMD
B: R82DE0FA.P65
E: 080403 / T. Weiß
G: 200103 / TCS
Section 5.5
Page 31
?
50mm
50mm
50mm
The individual parameters are entered according
to this model (refer to 5.5.5.4 Palletising
program) (Palletising program entries are
explained in 5.5.5.4)

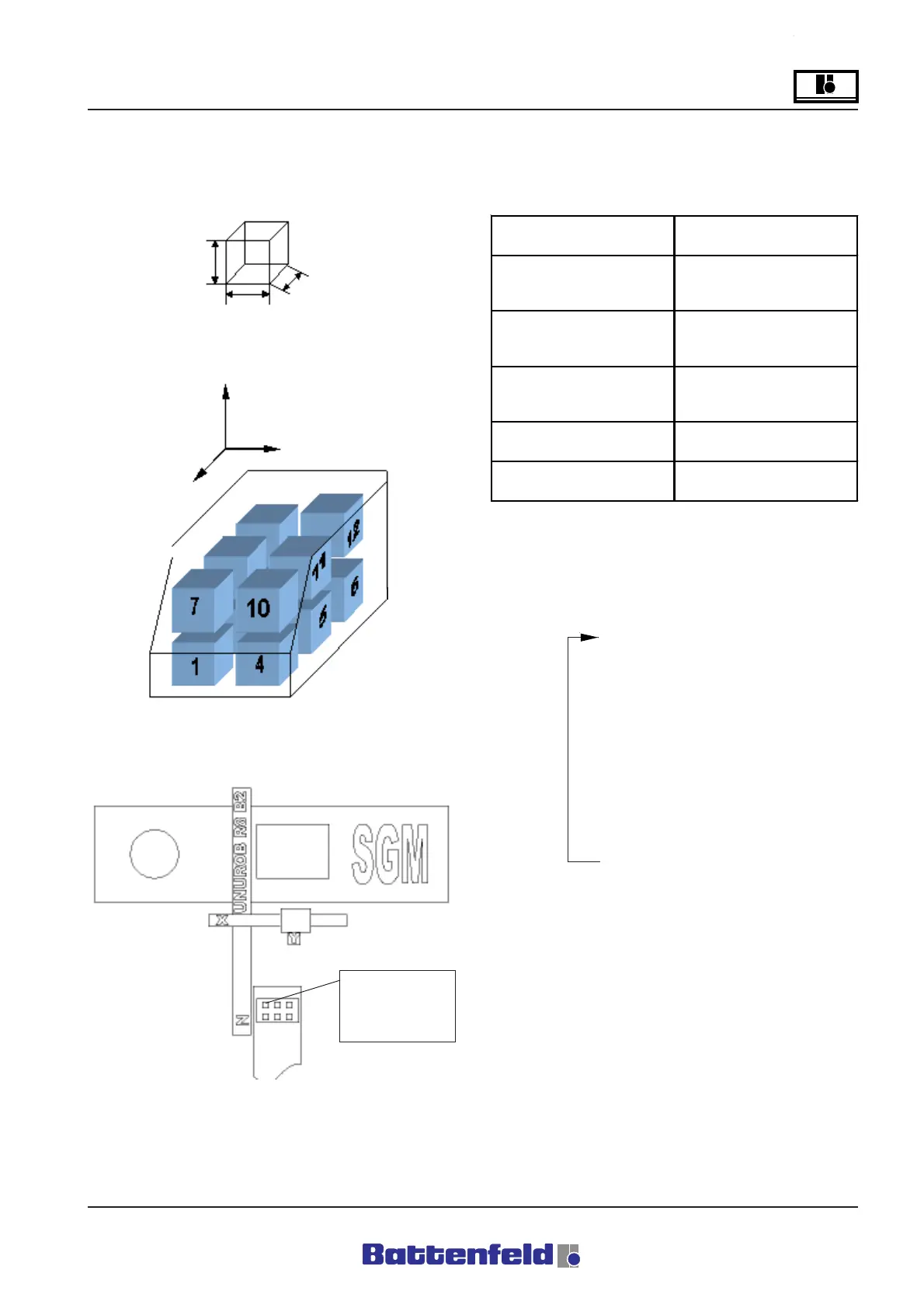

Palletising program entries
Example of workpiece dimensions:
Example of positioning pattern inside a crate:
Example of the crate position:
Data displayed on the PalStat page after
positioning:
Notes:
- All the PalStat page data for this
palletising program are displayed
together. The PalStat page only shows
the each current line.
- In palletising pattern XYZ, Z indicates the
number of already filled rows. Y shows
the number of full levels.
Quantityx y z
1100
2200
3001
4101
5201
6010
7110
8210
9011
10 1 1 1
11 2 1 1
0000
First position:
x 200.00
y 800.00
z 1200.00
Z
Y
X
Parameter Value
X 200.00
Y 800.00
Z 1200.00
Qux 3
Quy 2
Quz 2
Dfx 80.00
Dfy 51.00
Dfz 70.00
Palletising pattern XZY
Movement sequence ZXY
R8B2_GB140.XLS
First position
Quantity
Difference
