Baumuller b maXX 5000 Series - Page 185

Installation
Instruction handbook b maXX 5000
Document No.: 5.09021.16
185
of 328
7
Add-on module SVP
Module with additional analog/digital inputs/outputs, BM53XX-XXXX-XX04
BM53XX-XXXX-XX05
BM53XX-XXXX-XX06
LED display
green: 24V available
orange: Internal power supply available
green: FPGA loaded

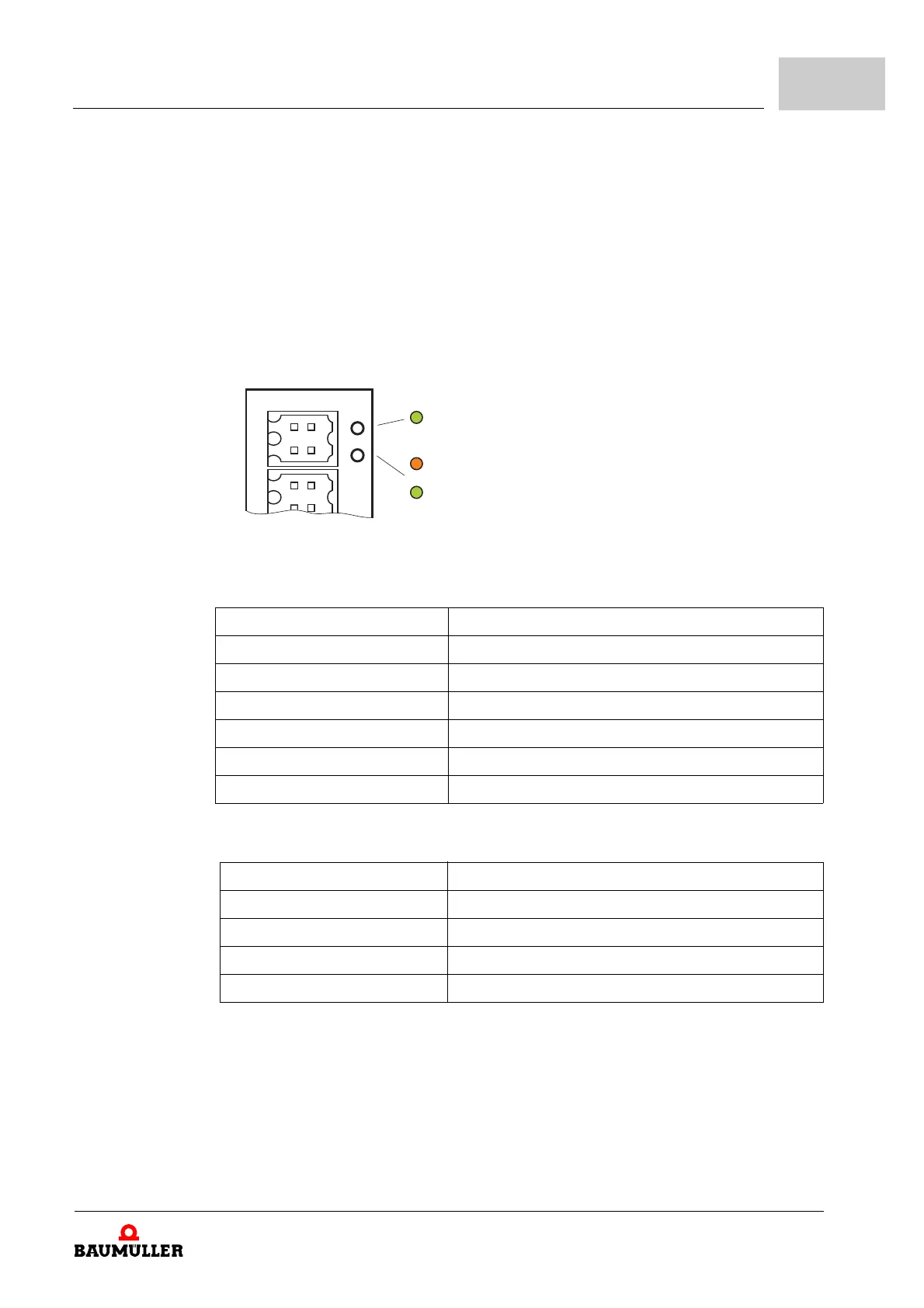

Figure 86: LED display add-on module SVP
Digital inputs/outputs
Evaluation: Edges, programmable
Input current (per input): 2 mA digital input
Time delay input: Max. 4 ms,
Level: Low (0 ... 5 V); High (12 … 28 V)
Output current of each output: Max. 500 mA
Electrical isolation: Optocoupler
Short circuit proof: Current limited, switch-off via temperature
Analog outputs
Resolution 12 bit
Output voltage -10 V to +10 V
Output current max. 1 mA
Updating rate 125 µs
Short circuit proof Limited, max. 10 s
