3 Disassembly / Assembly
3 - 24 Infusomat® compact
plus
P 1.0
EN
For internal use, only
5. Disconnect the connectors of the following components on the
sensor board:
a) Pressure sensor, upstream (Fig. 3 - 31 / Item 1).
b) Pressure sensor, downstream (Fig. 3 - 31 / Item 3).
c) SHK motor (Fig. 3 - 31 / Item 4).
6. Completely unlock the connectors of the following components
and pull out the ribbon cable:
a) Pump (Fig. 3 - 31 / Item 2).
b) SHK PCB ICPP (Fig. 3 - 31 / Item 5).
c) Air sensor (Fig. 3 - 31 / Item 6).
7. Push the movable Hall sensor (Fig. 3 - 32 / Item 2) approx. half
the way towards the interior of the unit until it is released from
the bracket
(Fig. 3 - 32 / Item 3).
8. Remove two screws (Fig. 3 - 32 / Item 4) using a 15IP TORX
plus screwdriver.
9. Take the sensor board (Fig. 3 - 32 / Item 1) out of the housing
front from above.

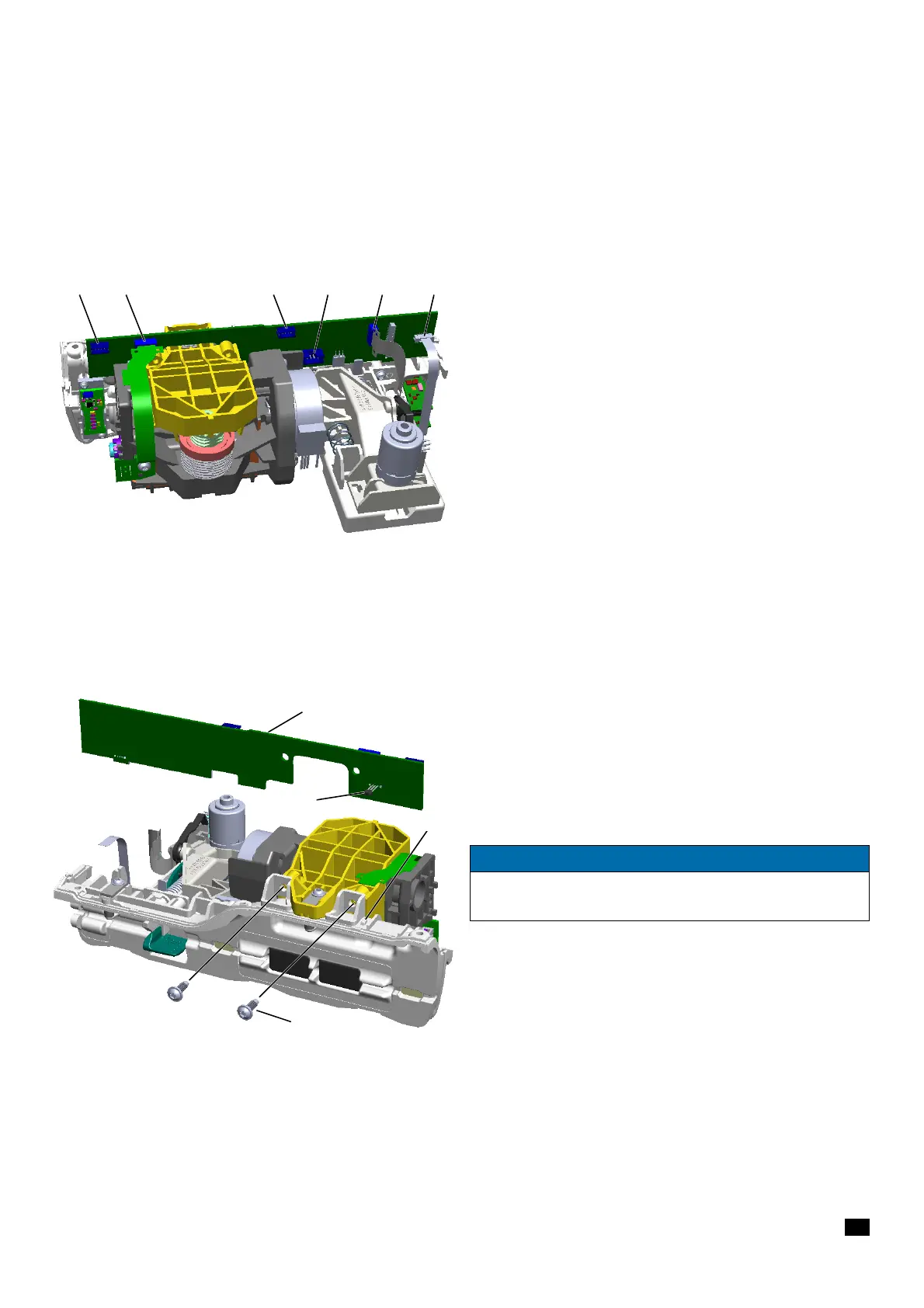

Fig. 3 - 31
1 Connector of pressure sensor, upstream
2 Connector of pump
3 Connector of pressure sensor, downstream
4 Connector of SHK motor
5 Connector of SHK PCB ICPP
6 Connector of air sensor
Fig. 3 - 32
1 Sensor board
2 Hall sensor
3 Bracket for Hall sensor
4 Screw DELTA PT 35x10 WN 5451
NOTICE
Make sure not to damage the Hall sensor (Fig. 3 - 32 / Item 2)
when removing the sensor board.
