3 Disassembly / Assembly
Infusomat® compact
plus
P 1.0 3 - 25
EN
For internal use, only
10. Press the two snap-fits (Fig. 3 - 33 / Item 1) to disengage the
air sensor from the housing front.
11. Remove the air sensor (Fig. 3 - 33 / Item 2) from the front.
12. If the ESD wire has to be exchanged, remove the lug terminal
from the screw
(Fig. 3 - 33 / Item 3).
13. Compress the spring of the pump (see arrows) and remove the
pump
(Fig. 3 - 34 / Item 1) from the housing front.

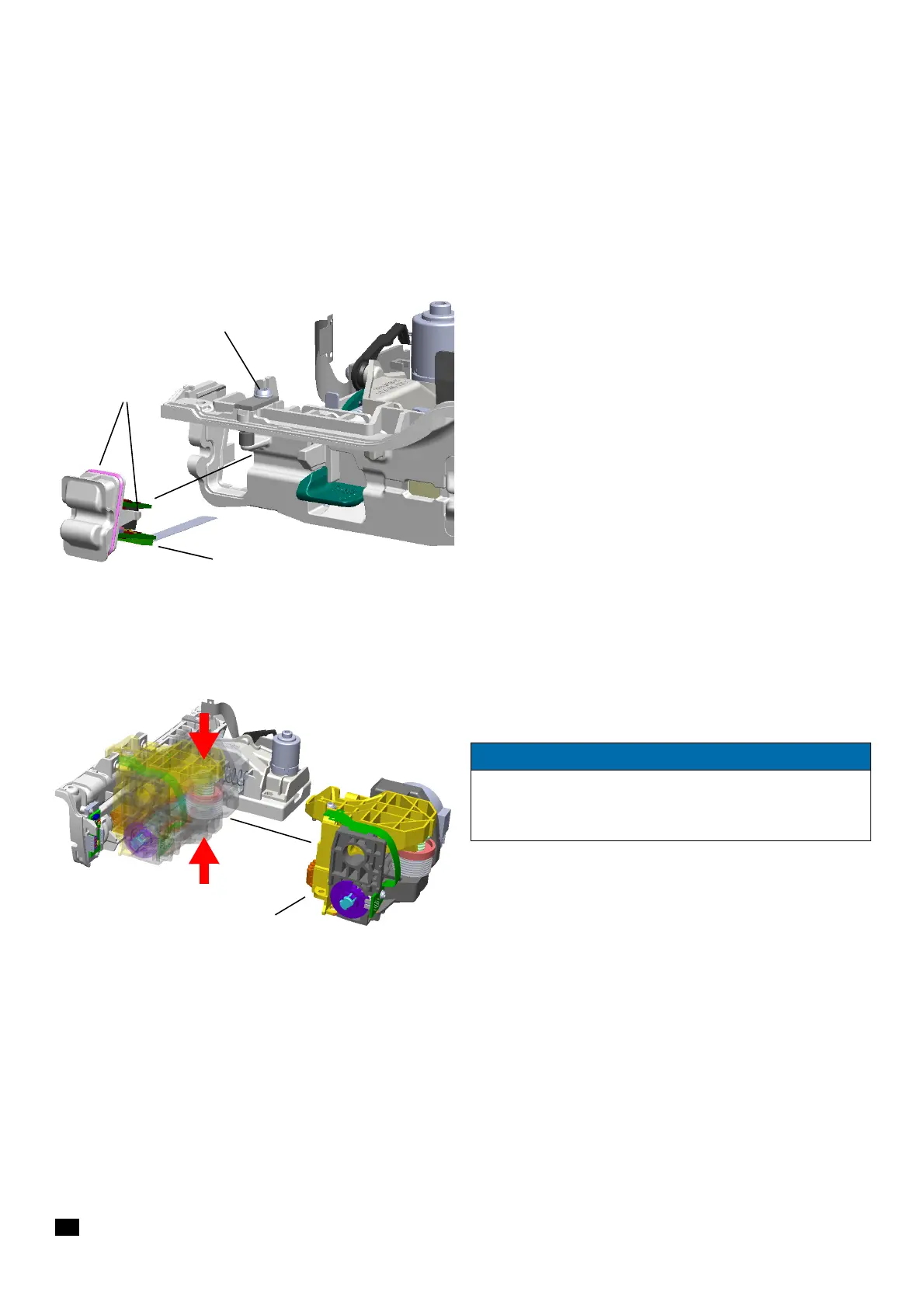

Fig. 3 - 33
1 Snap-fits (on both sides)
2Air sensor
3 ESD wire connection
2
1
3
Fig. 3 - 34
1Pump
1
NOTICE
When detaching the pump from the housing front, the pump roll
(Fig. 3 - 38 / Item 1) will drop out of the housing front. Keep the
pump roll safe.
