3 Disassembly / Assembly
Infusomat® compact
plus
P 1.0 3 - 27
EN
For internal use, only
Assembly
✓ Pump has been completely assembled.
1. Before mounting the SHK board, ensure that the lever
(Fig. 3 - 37 / Item 1) is in place and correctly seated.
2. Tighten the screw of the SHK board with a torque of 1.2 Nm
±
0.12 Nm (first and second screwing).
3. Tighten the screws of the pressure sensors with a torque of
0.25
Nm ± 0.03 Nm (first and second screwing).
4. Check the O-ring (Fig. 3 - 38 / Item 2) for damage and replace
it, if necessary (the O-ring is contained in the Service part kit).
5. Insert the pump roll (Fig. 3 - 38 / Item 1) when attaching the
pump to the housing front. The pump roll can be reused or
taken from the Service part kit.
6. Push the air sensor in until it audibly latches into position.
7. Mount the new ESD wire (Fig. 3 - 38 / Item 3) if it has to be
replaced.

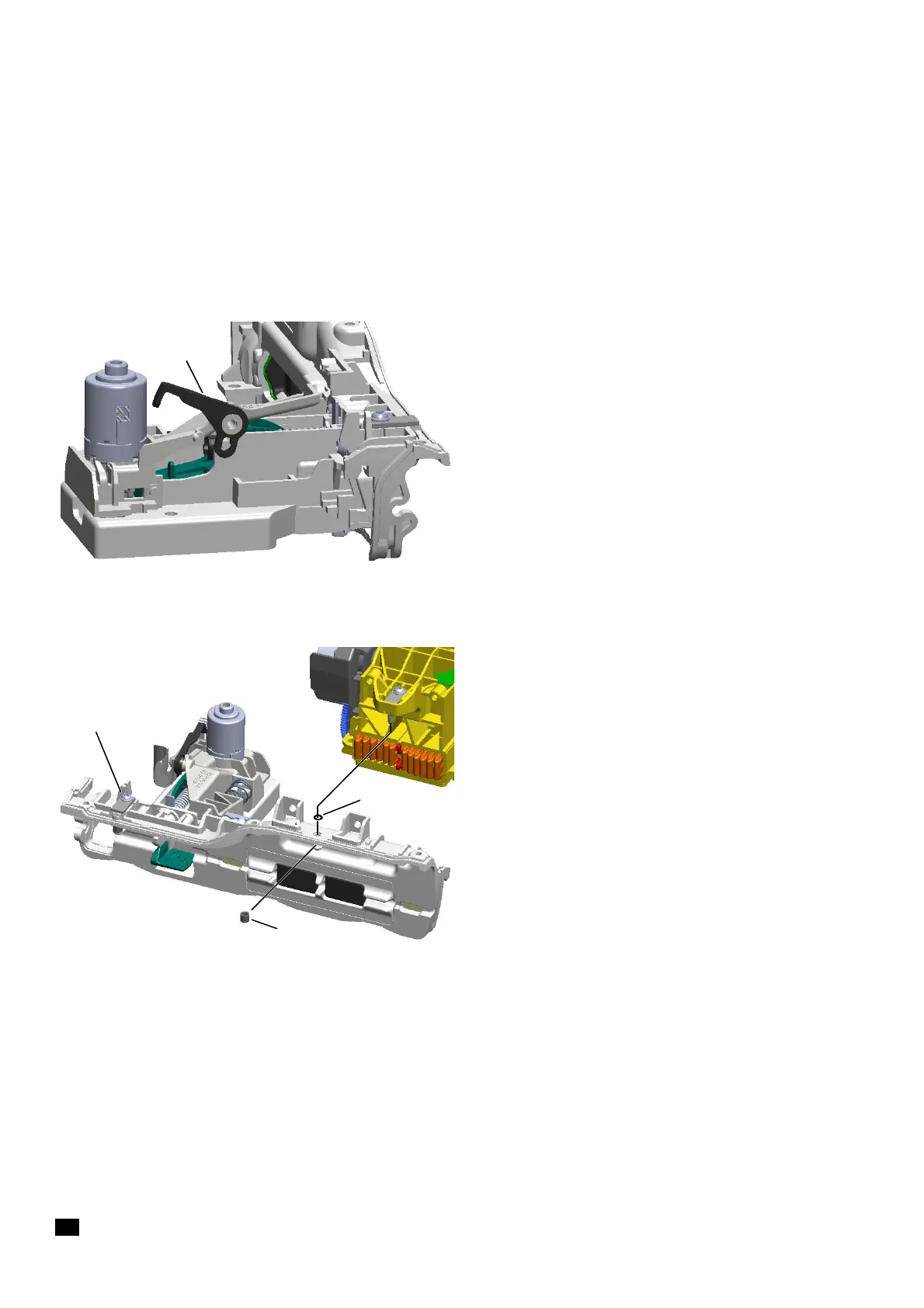

Fig. 3 - 37
1 Lever of SHK unit
Fig. 3 - 38
1Pump roll
2O-ring
3 ESD wire connection
