3 Disassembly / Assembly
3 - 26 Infusomat® compact
plus
P 1.0
EN
For internal use, only
14. Unscrew two screws (Fig. 3 - 35 / Item 1) using a 6IP TORX plus
screwdriver.
15. Remove the pressure sensor, upstream (Fig. 3 - 35 / Item 2).
16. Unscrew two screws (Fig. 3 - 35 / Item 4).
17. Remove the pressure sensor, downstream (Fig. 3 - 35 / Item 3).
18. Unscrew one screw (Fig. 3 - 36 / Item 1) using a 10IP TORX plus
screwdriver.
19. Remove the SHK PCB ICPP (Fig. 3 - 36 / Item 2) from the SHK
unit (Fig. 3 - 36 / Item 3).

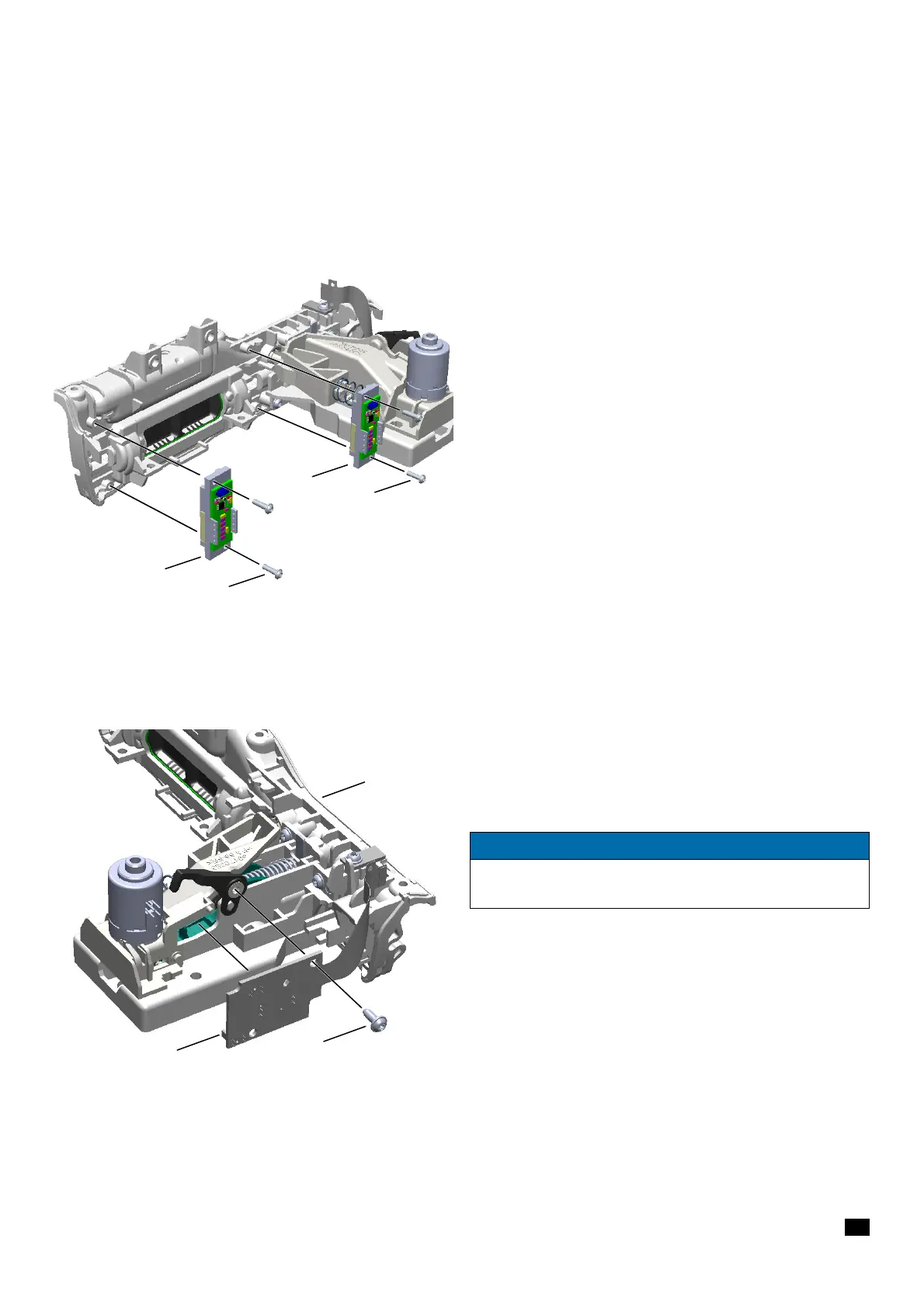

Fig. 3 - 35
1 Screw DELTA PT 22x8 WN 5451
2 Pressure sensor, upstream
3 Pressure sensor, downstream
4 Screw DELTA PT 22x8 WN 5451
1
2
4
3
Fig. 3 - 36
1 Screw DELTA PT 30x8 WN 5451
2 SHK PCB ICPP
3SHK unit
1
2
3
NOTICE
Except for the SHK PCB ICPP, no other parts may be dismounted
from the SHK unit!
