3. Operation & System Set-up
3-17
CAUTION:
Immediately wipe any spills from device

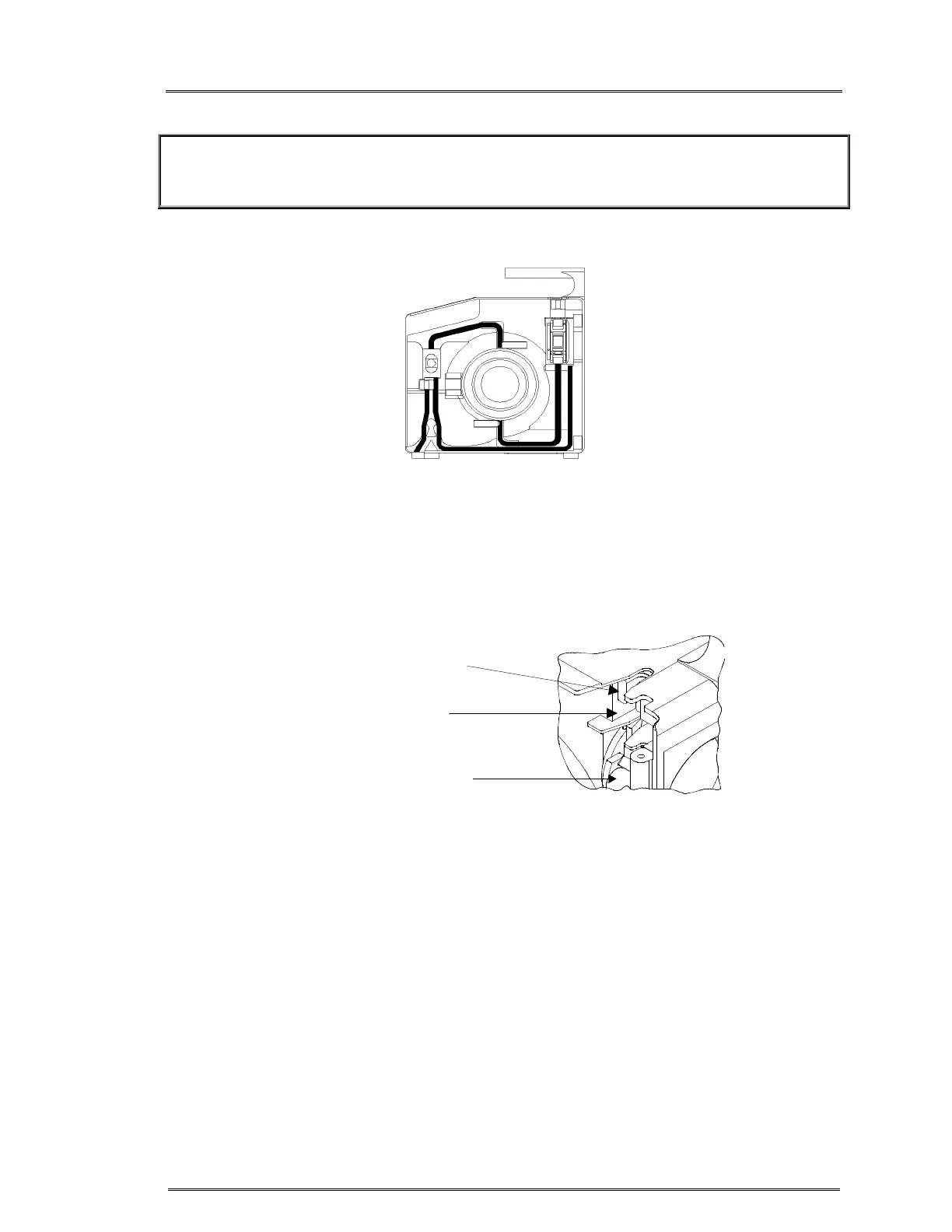

Tubing path in the system
1. Remove the disposable set from the tray and lay the reservoir chamber over the
top of the machine. Open the door. Insert the heat exchanger with the red arrow
pointing up.
2. Firmly position the interlock block into the fluid out detector.
3. Guide the curved piece of pump tubing over the pump head and position the
pump tubing into the groove. Check that the thinner recirculate line is in the
groove to the right.
4. Place the pressure chamber into the pressure chamber slot. Move valve wand
slightly to the middle. Insert the wider infuse line into the air detector and to the
left of the valve wand.
Fluid Out
Detector
Pump
Head
To Next Page
