5. Place the thinner recirculate line to the right of the air detector, and to the right of
the valve wand.
WARNING!
Do not apply excessive pressure to the pressure chamber or pressure
transducer. The pressure transducer is a precision electromechanical
device and can be damaged with excessive force. Do not use the
system if the pressure transducer is damaged.
CAUTION:
For proper operation, keep the fluid out detector and pump tubing clean
and dry. Do not block the air vent on the top of the reservoir chamber.
6. Close the door. Make certain the tubing is not crimped or caught in the door.
Connect the patient line.

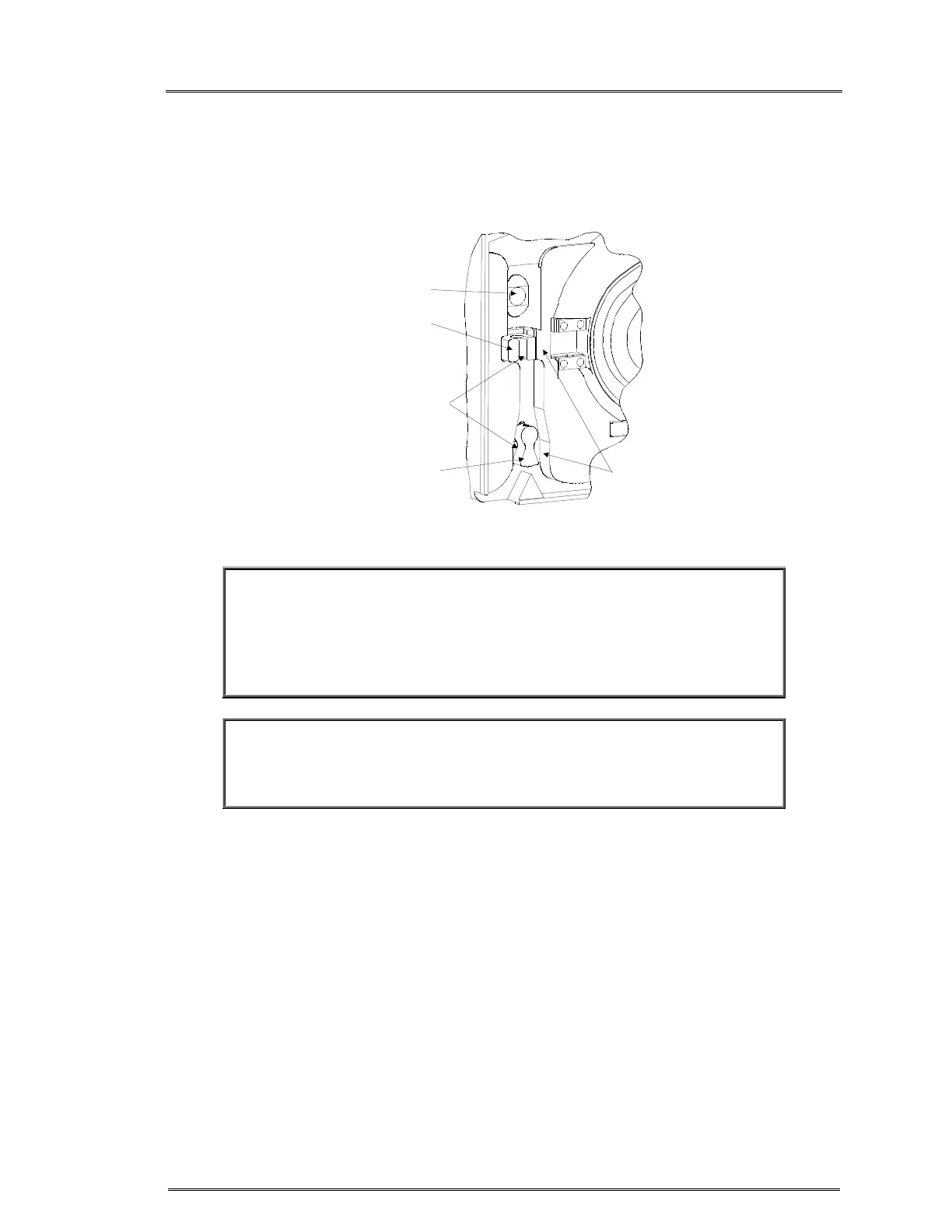

Pressure
Transducer
Air
Detector
Valve
Wand
Insert infuse
line here.
Insert
line here.
To Next Page
