Bend-Tech Dragon A400 Start-Up And Training Manual

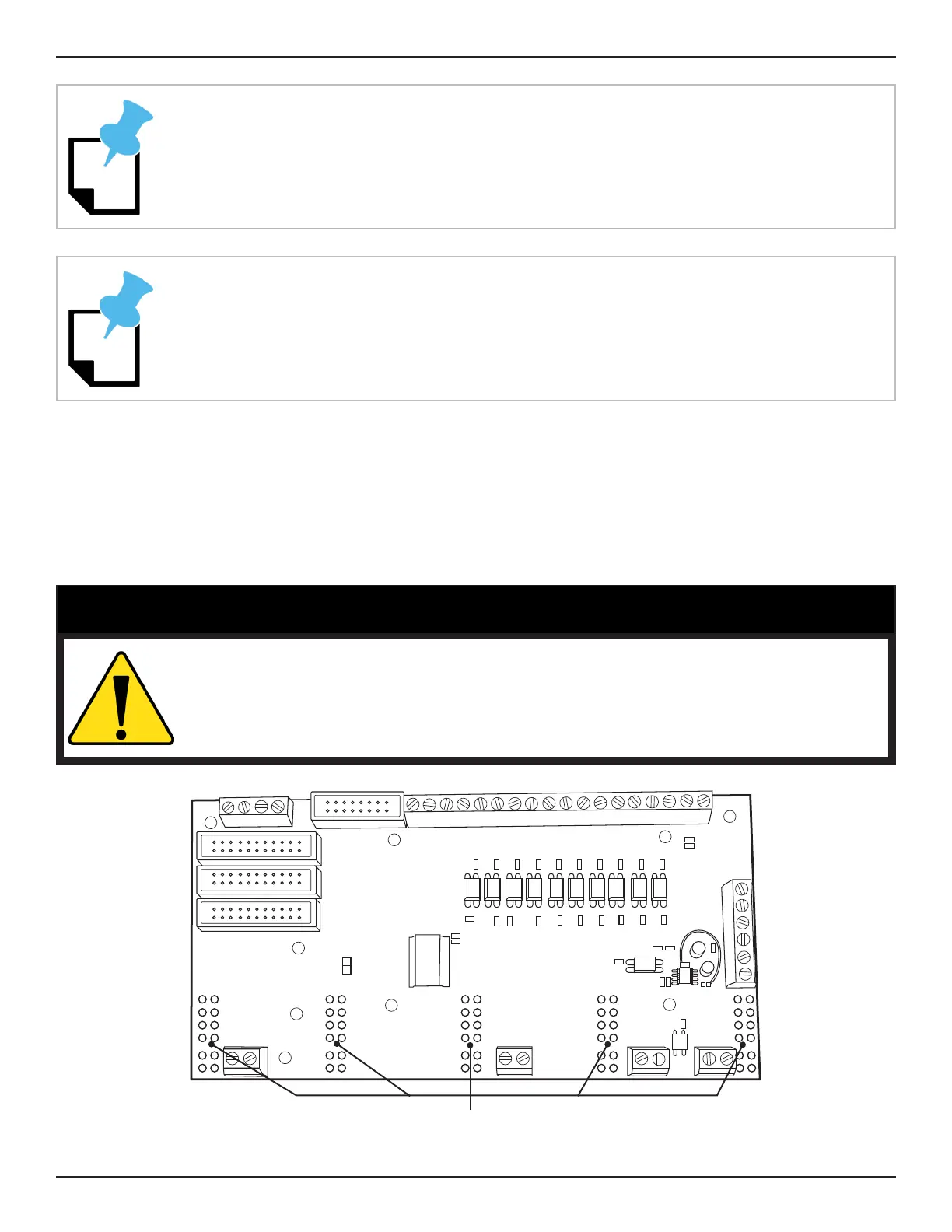

1.6.5 Breakout Board
The Breakout Board should be properly seated in the motor drivers. Open the front cover of the
Control Box. Locate the red circuit board in the top left of the Control Box. This is the Breakout
Board. Press on the Breakout Board rmly to ensure it is seated into each motor driver. No
other inspection is necessary within the Control Box.
The Main Power Fuse is a 10A, 120VAC fuse. Ensure any replacement fuses are 10A,
120VAC.
The Main Power Fuse holder has two fuse locations. The inner fuse is the Main Power
Fuse, the outer is a replacement Main Power Fuse.
! Caution !
Ensure power is disconnected from the machine before opening the Control Box.
Press Here when checking the
Breakout Board
17Bend-Tech Dragon A400
Start-Up and Training
Setup Inspection
01
