Bend-Tech Dragon A400 Start-Up And Training Manual

49Bend-Tech Dragon A400
Start-Up and Training
Machine Control Startup
03
3.4.2 Motor Location and Operation Index

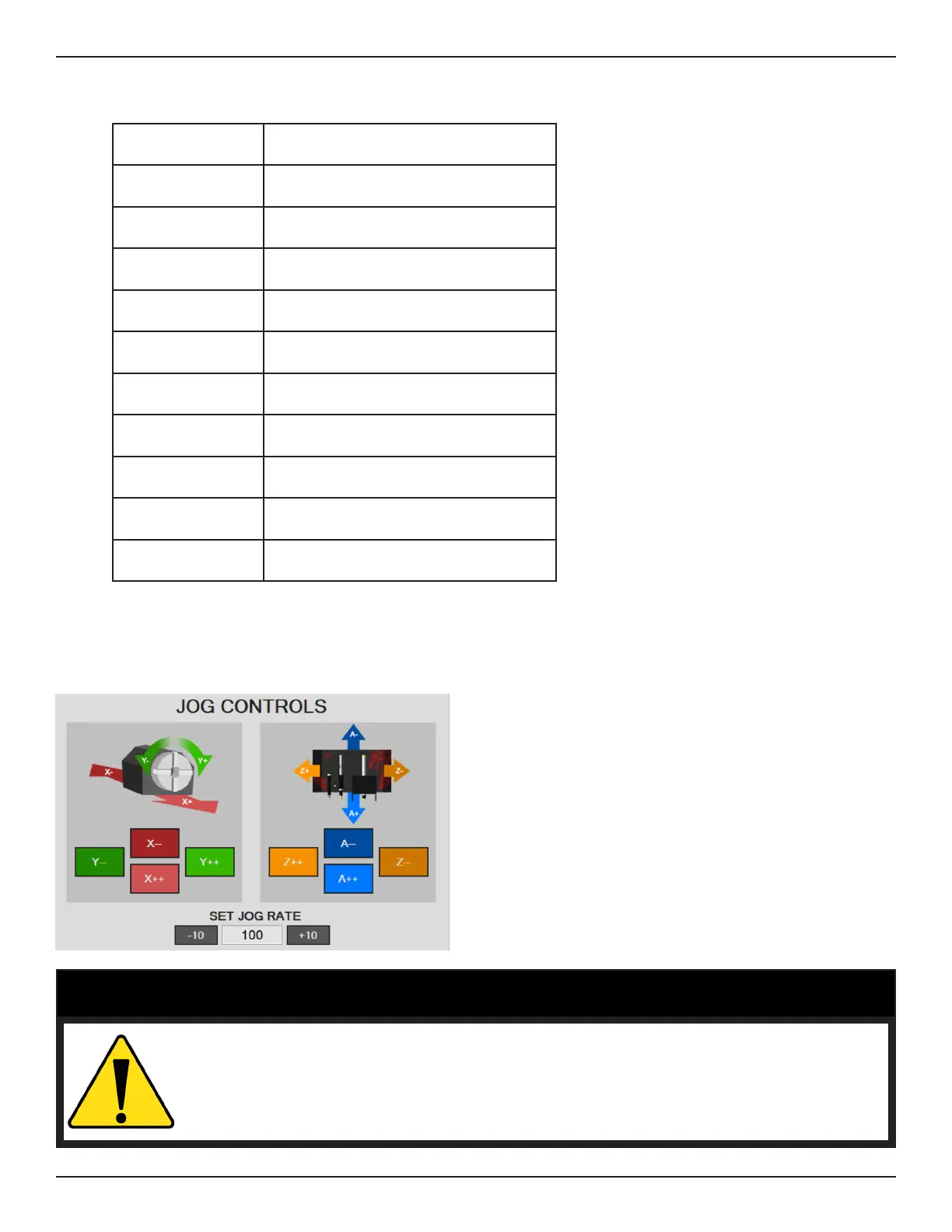

3.4.3 Jogging the Machine
With the Jog Controls screen open the Operator can
jog the Dragon A400 to observe that all controls are
in working order.
! Caution !
Avoid jogging the machine to the limits of its operation.
Jog Control Operation
X++
Trolley Forward
X-
Trolley Backward
Y++
Chuck Clockwise
Y-
Chuck Counter-Clockwise
A++
Tool Changer Down
A-
Tool Changer Up
Z++
Tool Changer Left
Z-
Tool Changer Right
B++
Material Support Lifter Up
B-
Material Support Lifter Down
