2.7.6 Consumables
It is recommended that the Customer have additional consumables on hand when operating
the Dragon A400. Worn consumables can result in wider cuts and less precise cuts.
Consumables are available through Hypertherm website or via a Hypertherm distributor.

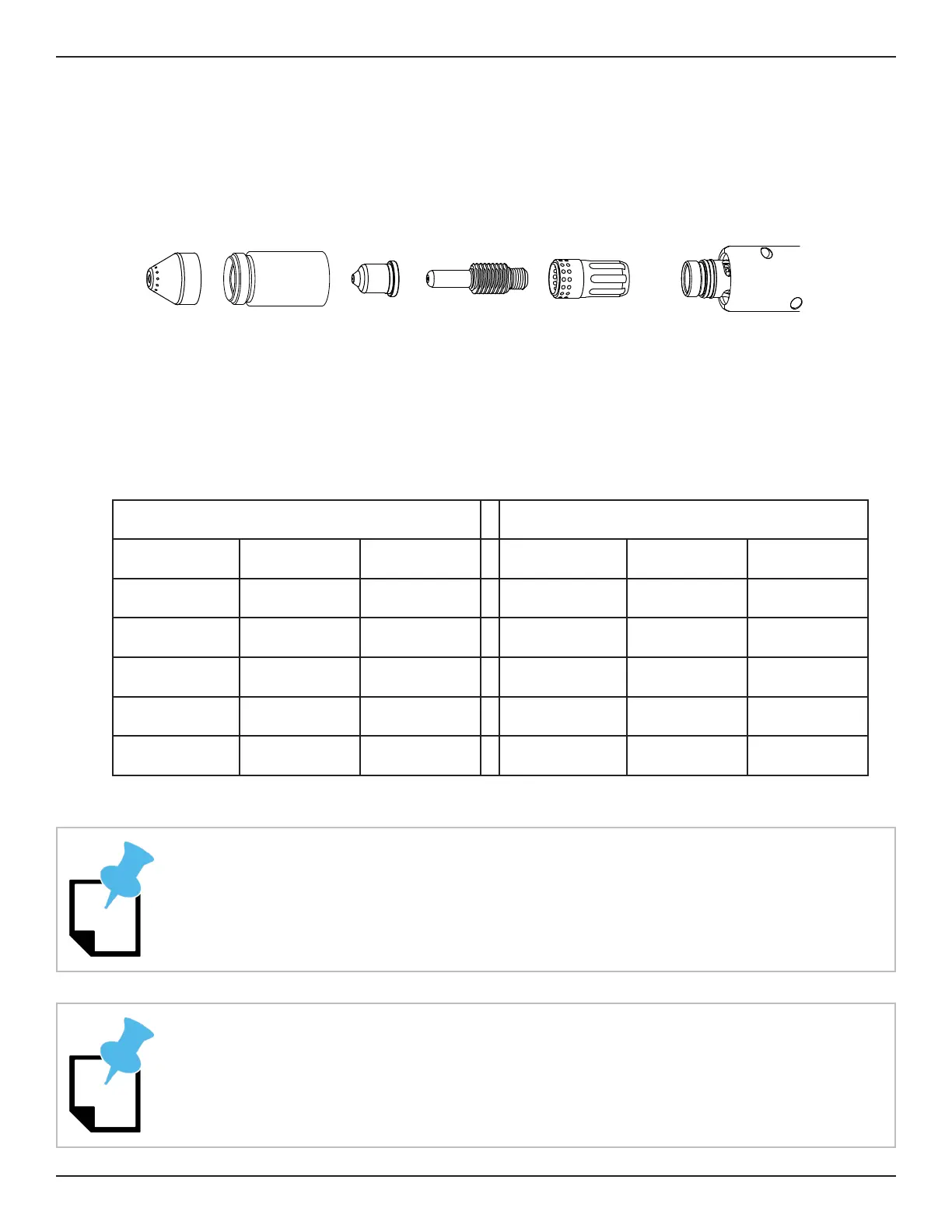

2.7.7 Consumables Part List
45 Amp Consumables 65 Amp Consumables
Components Standard Fine Cut Components Standard Fine Cut
Nozzle 220941 220930 Nozzle 220819 220930
Electrode 220842 220842 Electrode 220842 220842
Shield 220817 220948 Shield 220817 220948
Swirl Ring 220857 220857 Swirl Ring 220857 220857
Retaining Cap 220854 220854 Retaining Cap 220854 220854
An air lter and air dryer on the Hypertherm air source can increase Torch consumable
service life.
Typically the Operator will only need to replace the nozzle and electrode on the
Plasma torch.
220817
Shield
220854
Retaining Cap
220941
Nozzle
220842
Electrode
220858
Swirl Ring
