17Bend-Tech Dragon A400
Assembly Manual
Beginning Assembly
03

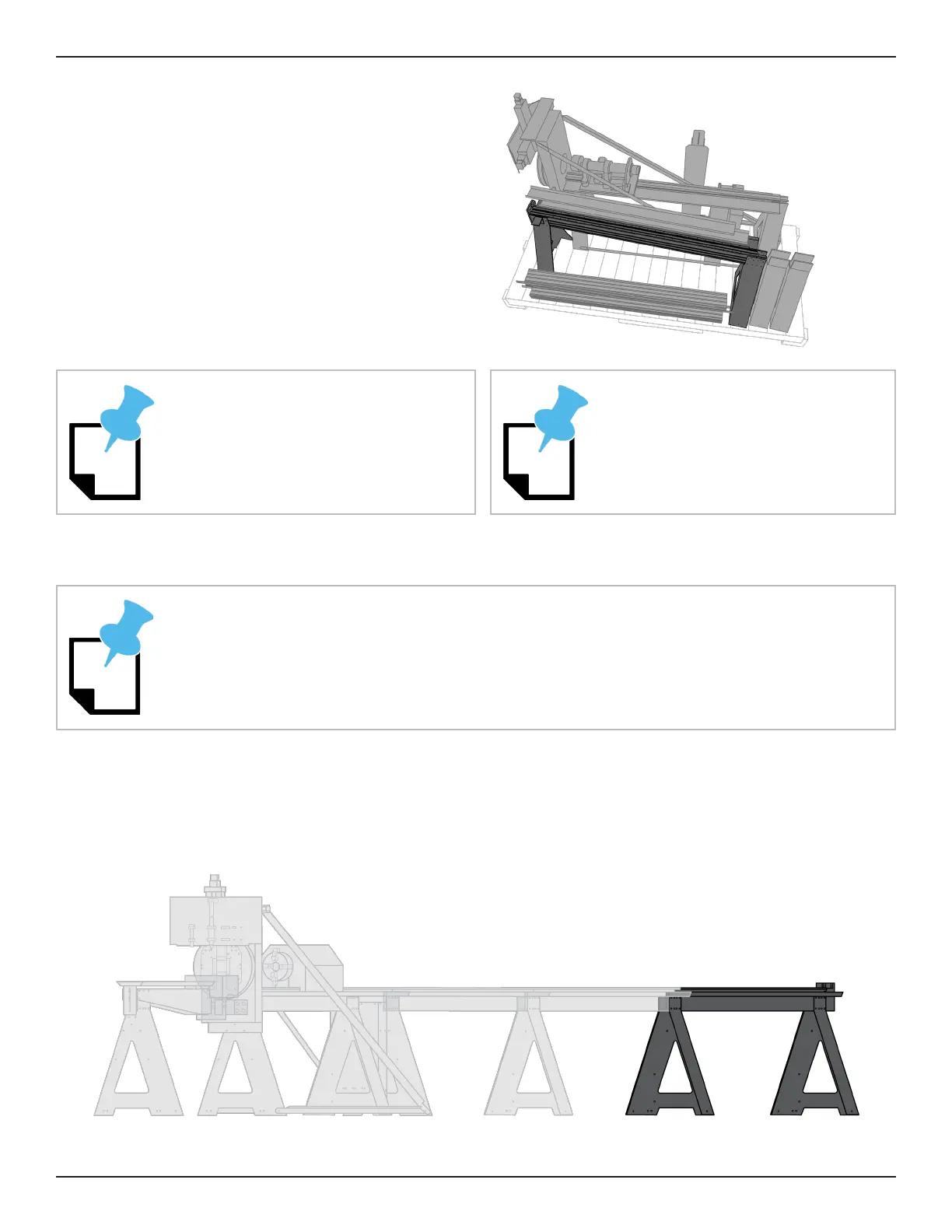

3.3.2 Rear Tail Section
The Rear Tail Section arrives pre-
assembled. The Rear Tail Section
Using a ½ in. socket and ratchet, or
½ in. wrench, remove the lag bolts
securing the Rear Tail Section to the
3.3.3 Place Rear Tail Section
The Rear Tail Section makes up the far end of the machine and should be placed in the shop
accordingly. The Customer should have plotted a position prior to receiving the machine. Place
the Rear Tail Section with the numbered leg (5) closest to where the Head of the machine will
be installed. The other end of the Rear Tail Section will not have a number.
The Rear Tail Section can be lifted
by hand, by two or more installation
personnel.
5
The Rail Beam sections and Rail
Support legs are numbered to
assist in the installation process.
The Installer should enlist a helper to lift the Rear Tail Section from the crate and carry
it into position.
