3.7.1 Placing the Head Using a Forklift
Using a ½ in. socket and ratchet or ½ in.
wrench, remove the lag bolts attaching

crate. Using a forklift, approach the Head of
the machine from the front. Position forks
under the Head in the indicated position. It
is recommended the Installer lay blocks of
wood across the forks to support the Rail
Beam on the machine. Carefully lift the Head
󰀨
move into position, leaving space for the
remaining section of Rail to be put in place.
Before placing the machine ensure the Swivel Levelers are installed in each of the Rail
Support Legs as outlined in Section 3.5.
Before attempting to move the Head of the machine, remove all other contents of the
crate and set aside.
Tools Needed
• Forklift
• Wood Blocks
• ½ in. wrench or ½ in. socket and ratchet

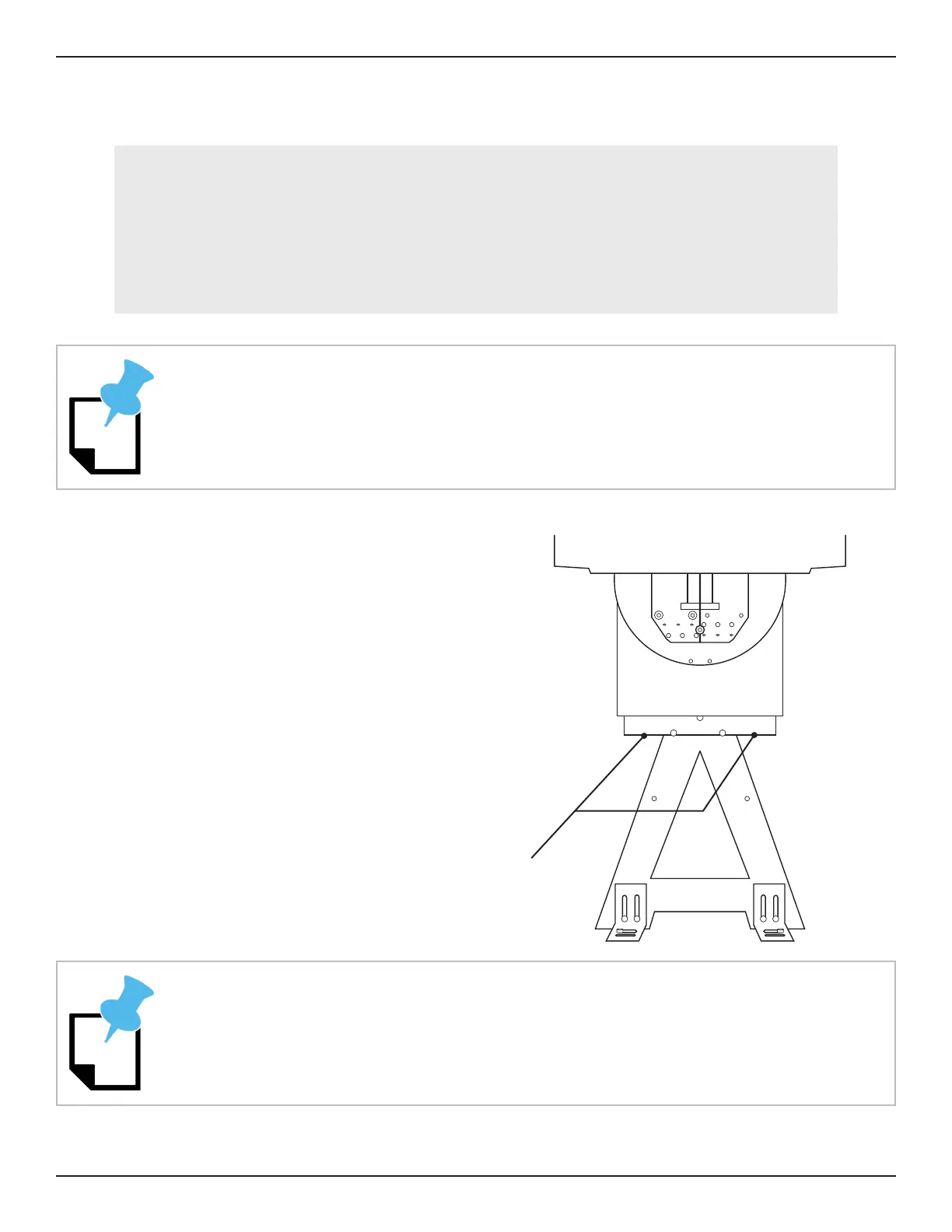

Position Forks Here
Head of Machine
